LightSaber Optics Fiber/Power Hybrid Cable, 2F SM Armored Fiber w/LCU Uniboot Connector + 2 x 12 AWG DC Power Cable
- SKU: LSO-FPHC-2F/SM/LCU/A-2/12AWG/DC
$35.00 to $635.00Select options
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information
LightSaber Optics LSO-FPHC-2F/SM/LCU/A-2/12AWG/DC(FT)

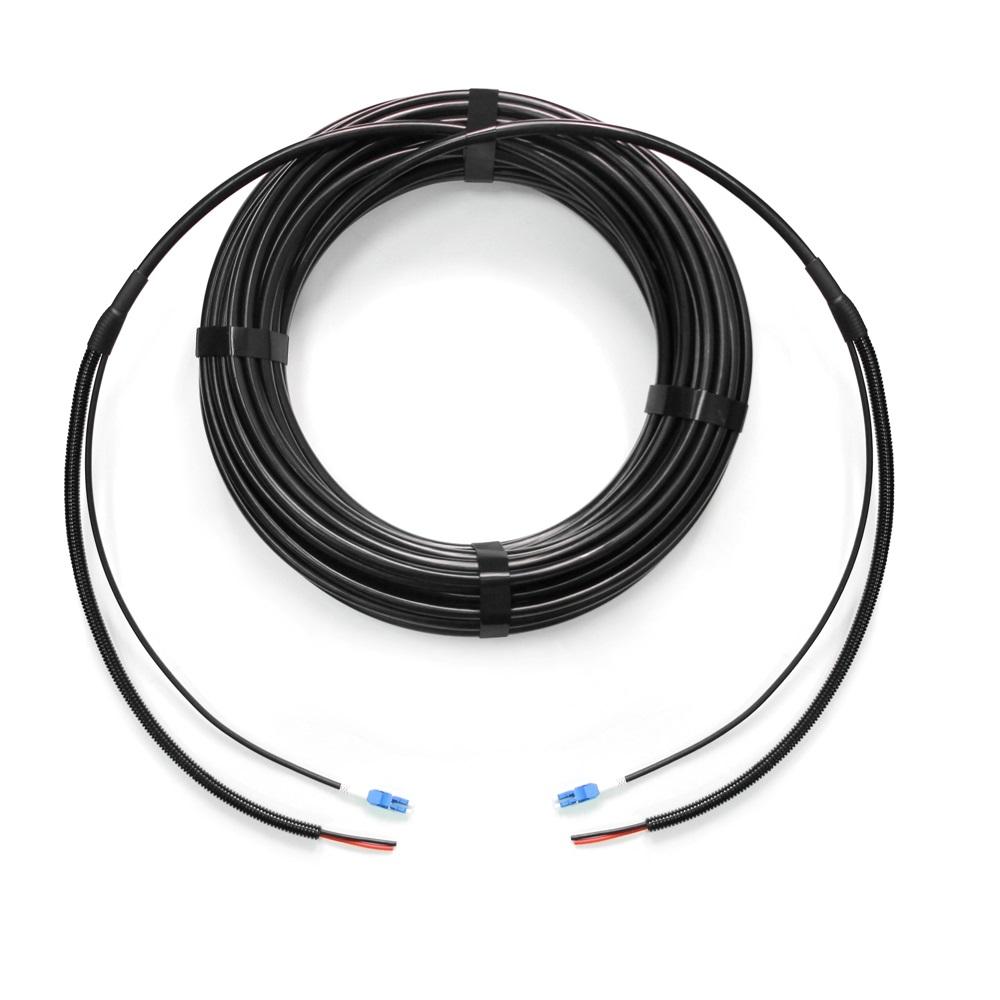

Fiber/Power Hybrid Cable, 2F SM Armored Fiber w/LCU Uniboot Connector + 2 x 12 AWG DC Power Cable
This hybrid cable assembly is used to connect both Fiber and Power to a radio element. This cable is specifically designed to work with many popular radio models that are powered by 48vdc and have fiber interfaces. This type of hybrid cable cuts down on installation time and reduces opportunity for installer error. The hybrid cable consists of 2x12AWG power cord and 2F Singlemode Fiber Cable, which is pre-terminated with LC Uniboot on both ends.
Features:
- 2 Core Single Mode Fiber G657A1.
- 2x 12 AWG Electrical Conductors.
- PE Black Jacket, Ruggedized and UV Resistant.
- Cable outside diameter: 10mm.
- Can be used indoors and outdoors.
- LC Uniboot on both end, easy for plug-in.
Specifications
Specifications
| Fiber Cable Parameters | |
| Fiber Count: | Duplex |
| Fiber Mode: | Single Mode: OS2 9/125µm |
| Fiber Grade: | G.657.A1 |
| Connector: | LC UPC Unibooot |
| Cable Jacket: | Low Smoke Zero Halogen (LSZH) |
| Power Cable Parameters | |
| Conductor | 12AWG x 2 |
| Rated Voltage | 300V |
| Insulation Material | PVC |
| Optical Characteristics | |
| Insertion Loss (dB): | ≤0.3 |
| Return Loss (dB): | ≥50 |
| Wavelength (nm): | 1310/1550 |
| Attenuation (dB/km): | ≤0.36 at 1310nm, ≤0.22 at 1550nm |
| Physical Characteristics | |
| Cable Diameter (mm) | 11 |
| Min. Bend Radius (D) | 20/10 (Dynamic/Static) |
| Tensile Strength (N) | 200/400 (Long Term/Short Term) |
| Crush Resistance (N) | 1100/2200 (Long Term/Short Term) |
| Operating Temperature | -20 to +70°C |
| Storage Temperature | -40 to +80°C |

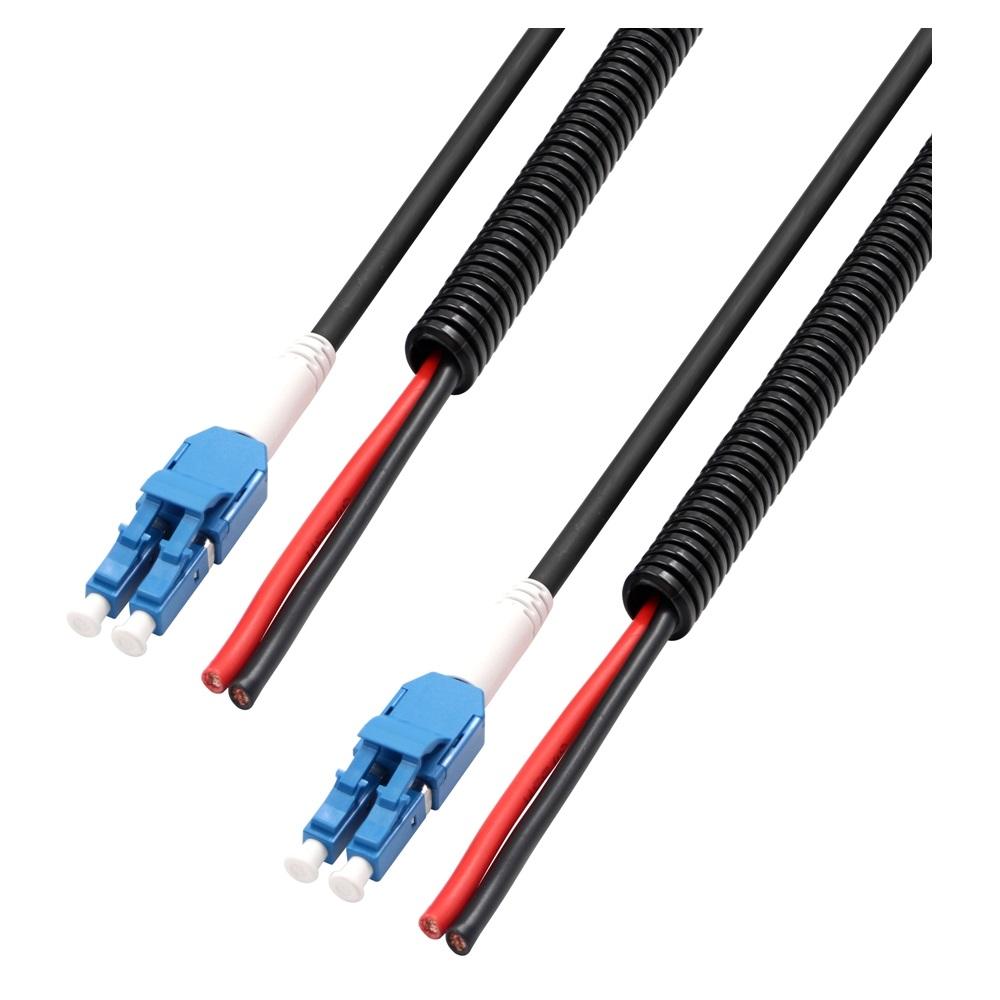

| Side A: | UNIBOOT LC/UPC SM (BLUE HOUSING, WHITE BOOT)+2X12AWG RED/BLACK |
| Side B: | UNIBOOT LC/UPC SM (BLUE HOUSING, WHITE BOOT)+2X12AWG RED/BLACK |
| Fiber cable type: | G657A1 OS2 9/125um, OD: 5.0mm, DUPLEX, LSZH, ARMORED, BLACK |
| Insertion loss: | ≤0.3dB |
| Return loss: | UPC ≥ 50dB |
| Min bending radius: | 10D (Static); 20D (Dynamic) |
| Operating temperature: | -20 to +70°C |
| Storage temperature: | -40 to +70°C |
| Standards: | ANSI/TIA/EIA 568-C.3 |
