MikroTik Cloud Core Router CCR1016-12G

(0) No Reviews yet
  • SKU: CCR1016-12G
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Quick Start Guide: Download
  • Availability: 6 In Stock (updated live)

Specifications CCR1016-12G

CPUTilera Tile-Gx16 CPU (16-cores, 1.2Ghz per core)
MemoryTwo SODIMM DDR Slots, 2x 1GB Installed (No hardware or software max limit)
EthernetTwelve 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
ExpansionmicroUSB Port, Host and Device Mode
Storage512MB Onboard NAND
Serial PortOne DB9 RS232C Asynchronous Serial Port
ExtrasReset Switch, Beeper, Voltage, Current and Temperature Monitoring, Speed Controlled Fan
Power OptionsIEC C14 Standard Connector 110/220V, Power Jack (BU model only) PSU included in both models
Board Dimensions355 x 145 x 55 mm
TemperatureMax Ambient Temperature 50° @ 1.2GHz; 70° @ 1GHz CPU Core Frequency/td>
OSMikroTik RouterOS v6 (64bit), Level 6 License
IncludedCCR1016-12G: Router in 1U Case with LCD, PSU, Power Cable, USB Cable CCR1016-12G-BU: Router, PSU, Power Cable, Mounted LCD Screen, USB Cable

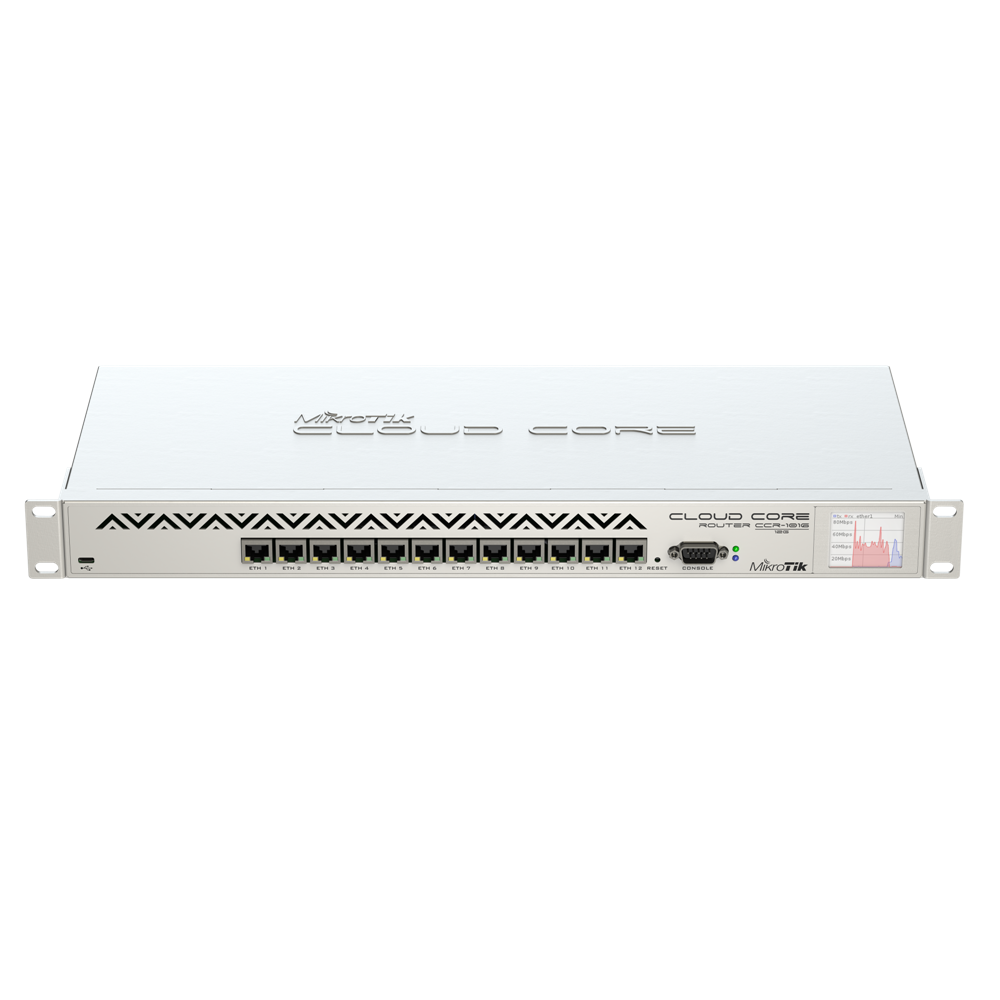

MikroTik Cloud Core RouterBOARD CCR1016-12G

Mikrotik 1U rackmount, 12x Gigabit Ethernet, LCD, 16 cores x 1.2GHz CPU, 2GB RAM, 17.8mpps fastpath, Up to 12Gbit/s throughput, RouterOS L6

CCR1016 is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

The device is available with a 1U rackmount case, has twelve gigabit ethernet ports, a serial console cable and a USB port. The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM but has no memory limit in RouterOS (will accept and utilize 16GB or more). It comes with the power supply and 1U rackmount case.
