MikroTik 2 x 25 Gigabit PCIe Ethernet adapter 25W 4GB RAM RouterOS, level 6
- SKU: CCR2004-1G-2XS-PCIe
- Manufacturer: MikroTik
- Data Sheet: Download
- Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock.
2 x 25 Gigabit PCIe Ethernet adapter 25W 4GB RAM RouterOS, level 6

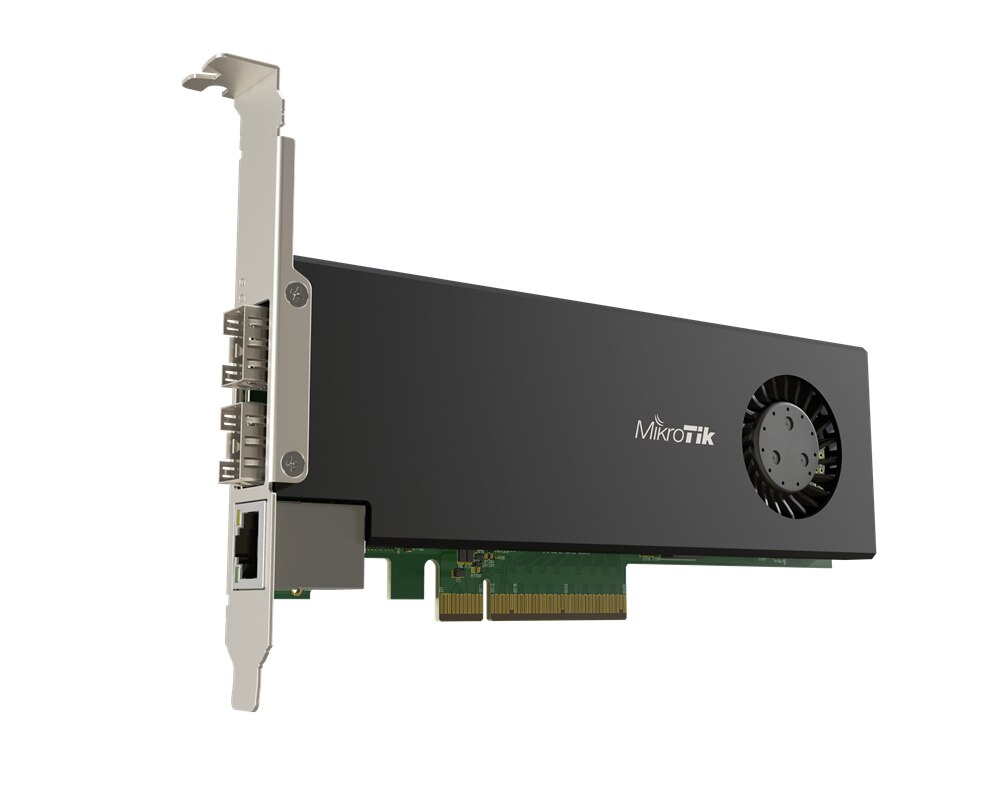

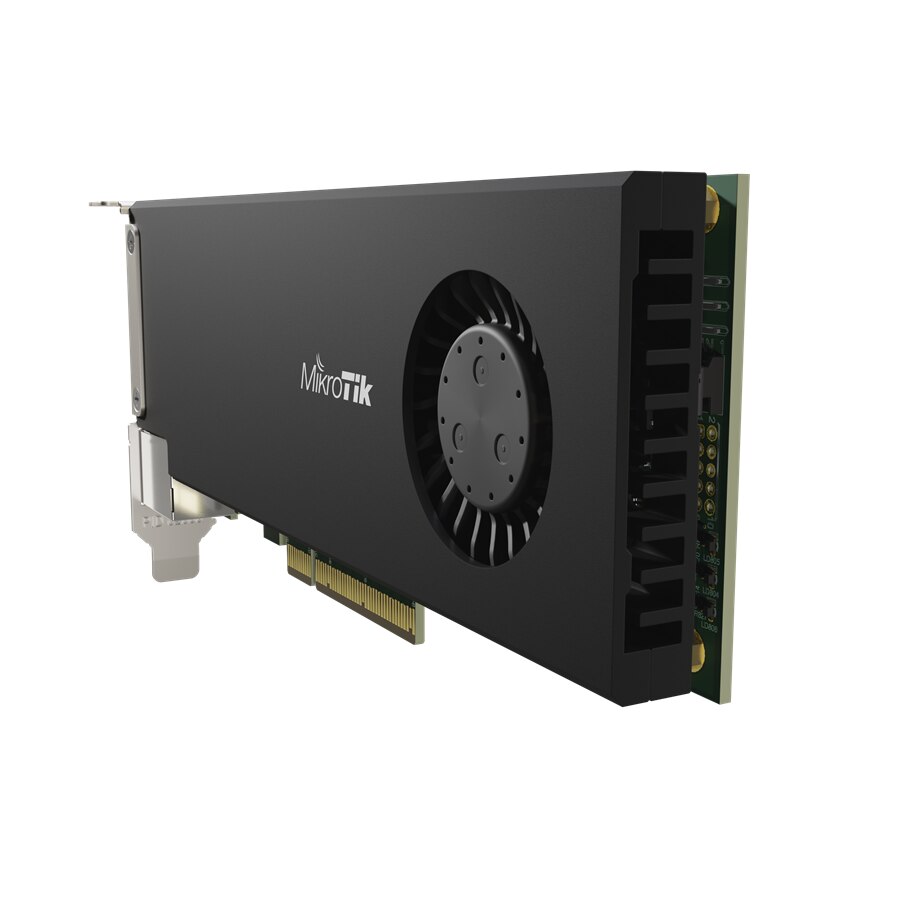

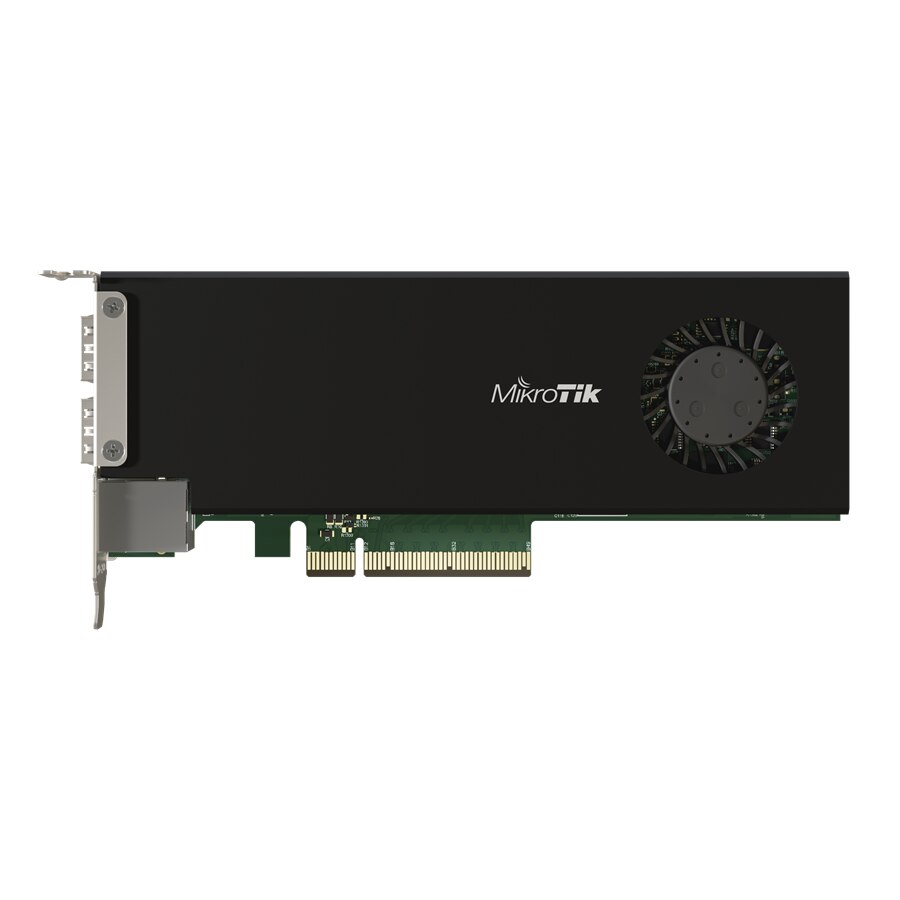

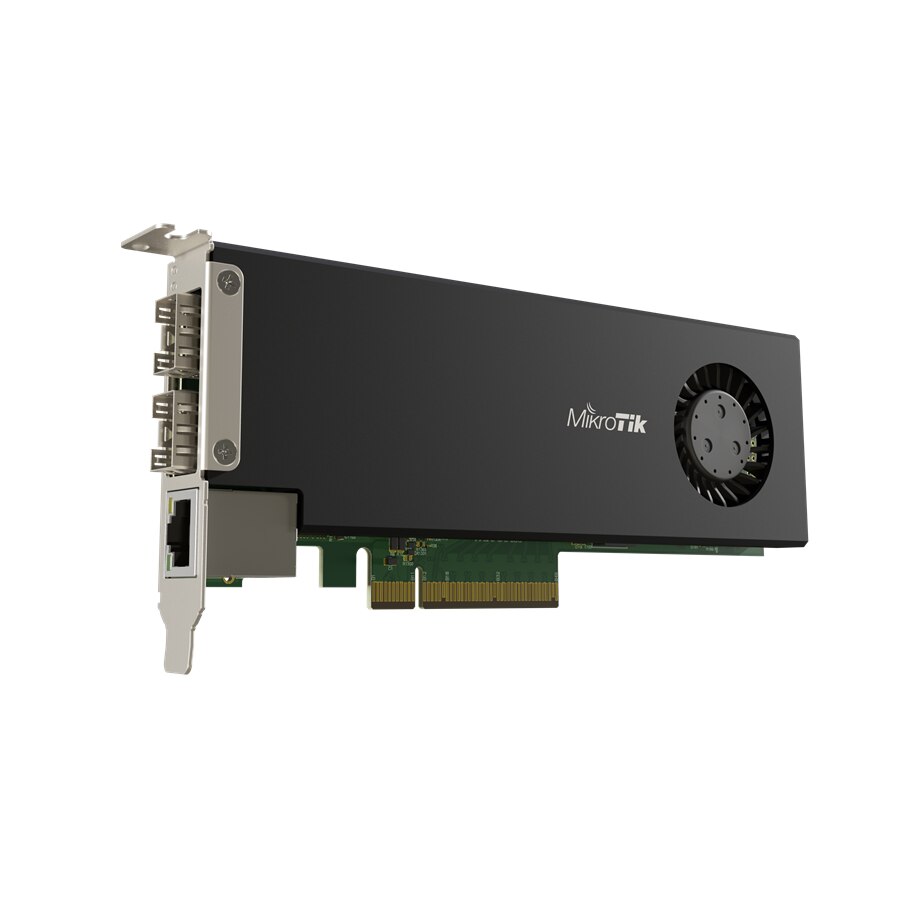

Save space in your server room by adding a real CCR2004.. within the server itself! This unique product combines a simple 2x 25 Gigabit PCIe Ethernet adapter with the impressive capabilities of a fully-fledged router.
By default, the PCIe interface will show up as four virtual Ethernet interfaces. Two interfaces in passthrough mode to the 25G SFP28 cages. Remaining two virtual Ethernet-PCIe interfaces are bridged with the Gigabit Ethernet port for management access. The user can configure all interfaces and settings freely since we are running fully functional RouterOS here.
To get this CCR device to work as an NIC, a new Passthrough mode was implemented. Basically, a FastForward FastPath mode that can also pass hardware link statuses.
With 4 GB of RAM, 128 MB of NAND storage, and a powerful quad-core ARMv8 64-bit CPU, this device can handle a lot: firewalls, user management and access control for home media and file servers, and even some traffic control in data centers – without the need for a stand-alone router.
This form-factor does come with certain limitations that you should keep in mind. The CCR NIC card needs some time to boot up compared to ASIC-based setups. If the host system is up before the CCR card, it will not appear among the available devices. You should add a PCIe device initialization delay after power-up in the BIOS. Or you will need to re-initialize the PCIe devices from the HOST system.
- Quad-Core Armv8 Cpu
- Fully Functional Ccr2004 In Pcie 3.0 X8 Form-Factor
- 2X SFP28 Cages For 25 Gigabit Networking
- Gigabit Ethernet
- 4Gb DDR4 Ram

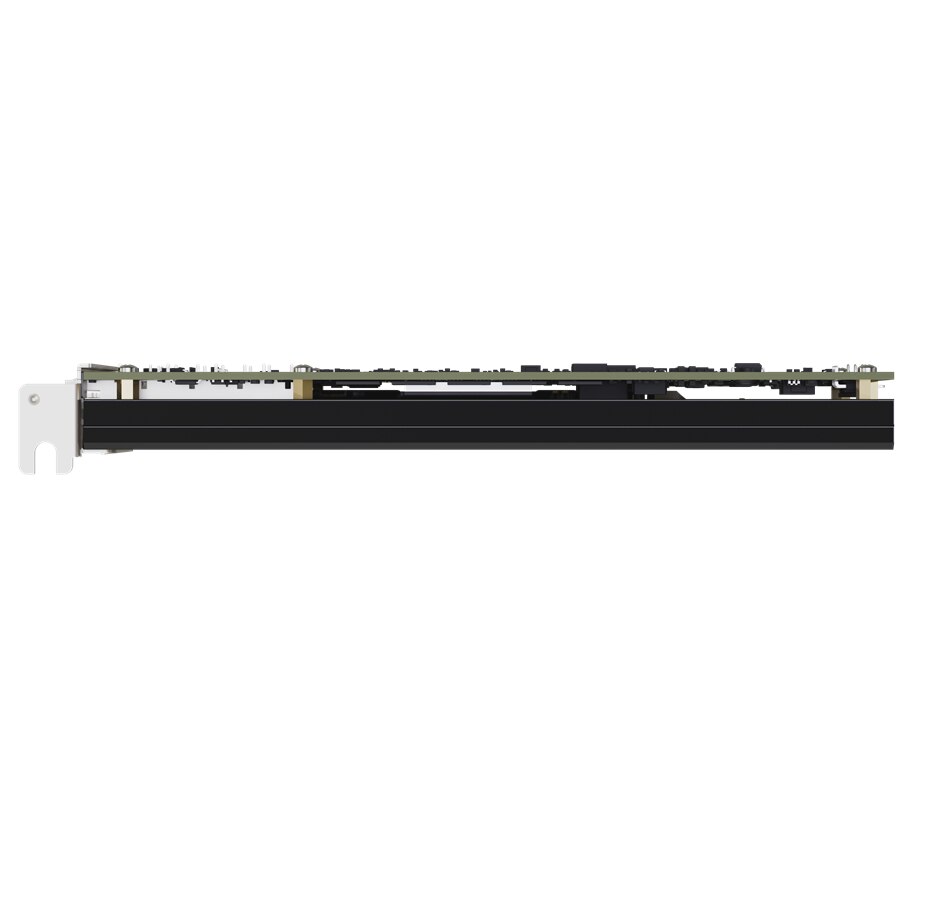

- Low-Profile Format – Fits In 2U Server Chassis
- Powered By The Server Motherboard
|CPU||AL32400 2 GHz|
|CPU architecture||ARM 64bit|
|CPU core count||4|
|Size of RAM||4 GB|
|Storage||128 MB, NAND|
|Number of 1G Ethernet ports||1|
|Number of 25G SFP28 ports||2|
|Operating system||RouterOS (License level 6)|
|Dimensions||170 x 69 x 18 mm|
6.69" x 2.71" x 0.70"
|Operating temperature||-20°C to +60°C|
|Max power consumption||25 W|
|Certification & Approvals|
|Certification||CE, FCC, IC|
