MikroTik Cloud Core Router 1.7GHz 4GB of DDR4 RAM RouterOS L6, 16x Gigabit Ethernet ports

(0)No Reviews yet
US$‎451.05 US$‎465.00

Out of Stock

Call for Availability

Product Information

MikroTik RouterBOARD CCR2004-16G-2S+

Cloud Core Router 2004-16G-2S+ with Annapurna Labs Alpine v2 CPU with 4x ARMv8-A Cortex-A57 cores running at 1.7GHz, 4GB of DDR4 RAM, 128MB NAND storage, 16 x Gbit LAN, 2x SFP+ ports, 1U rackmount case, Dual PSU, RouterOS L6

Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing.

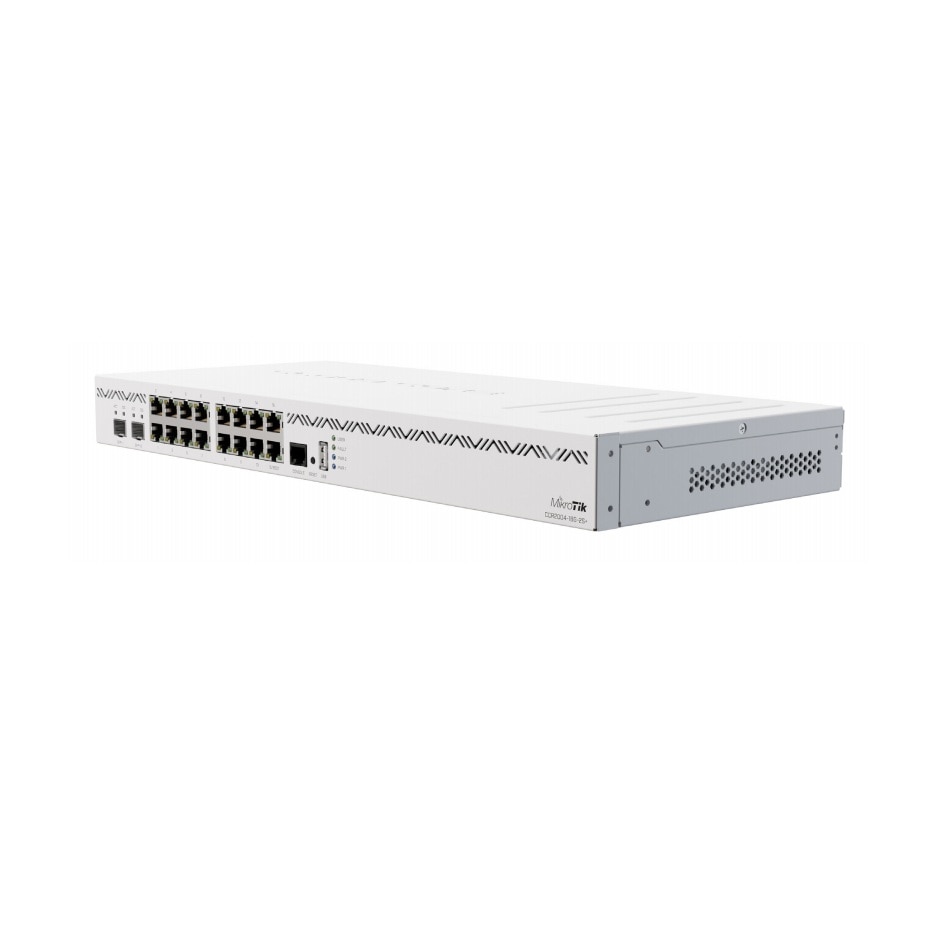

But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a full-size USB and RJ-45 console port on the front panel.

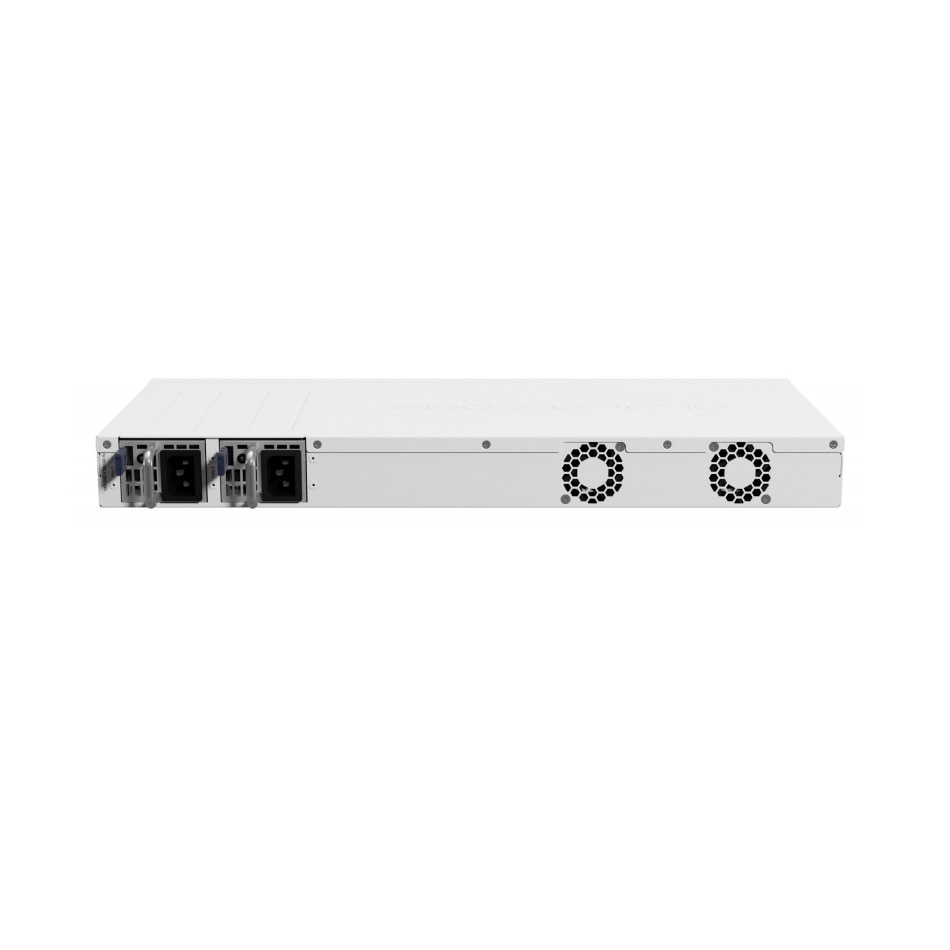

Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool.

Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.

As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009. Even surpassing it in CPU-heavy configurations! And if that wasn’t enough – it can even reach the performance of CCR1016.

The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general.

One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.



Features:

  • 16x Gigabit Ethernet port
  • 2x 10G SFP+ cages
  • Full-sized USB
  • RJ-45 console port

Specifications

Specifications CCR2004-16G-2S+

CPU AL324001.7 GHz
CPU architecture ARM64bit
CPU core count4
Size of RAM4 GB
RAM typeDDR4
Storage128 MB, NAND
Number of 1G Ethernet ports16
Number of 10G SFP+ ports2
USB port1 (3.0 type A)
Operating systemRouterOS (License level 6)
Switch chip model88E6191X, 88E619X
Dimensions443 x 210 x 44 mm (17.44" x 8.26" x 1.73" in)
Operating temperature-20°C to +60°C
Powering
Number of AC inputs2
AC input range100-240 V
Max power consumption (without attachments)35 W
Max power consumption48 W
CertificationCE, FCC, IC

Add-Ons

G1040A-60WFMikroTik Hot Swap 12V 60W power supply for CCR2004-16G-2S+
21 in stock
College Station
21 In stock
US$‎49.00
