Product Information

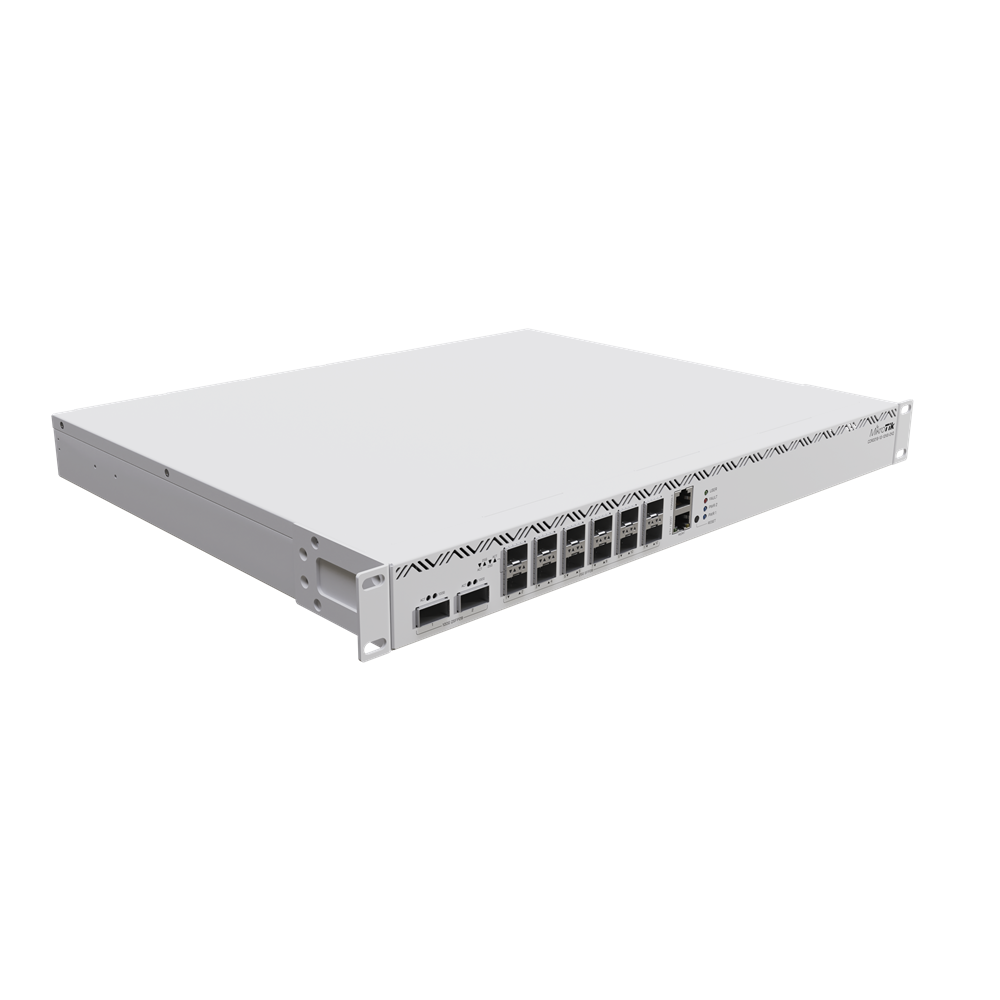

MikroTik RouterBOARD CCR2216-1G-12XS-2XQ
Unleash the power of 100 Gigabit networking with L3 Hardware Offloading
Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.
But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

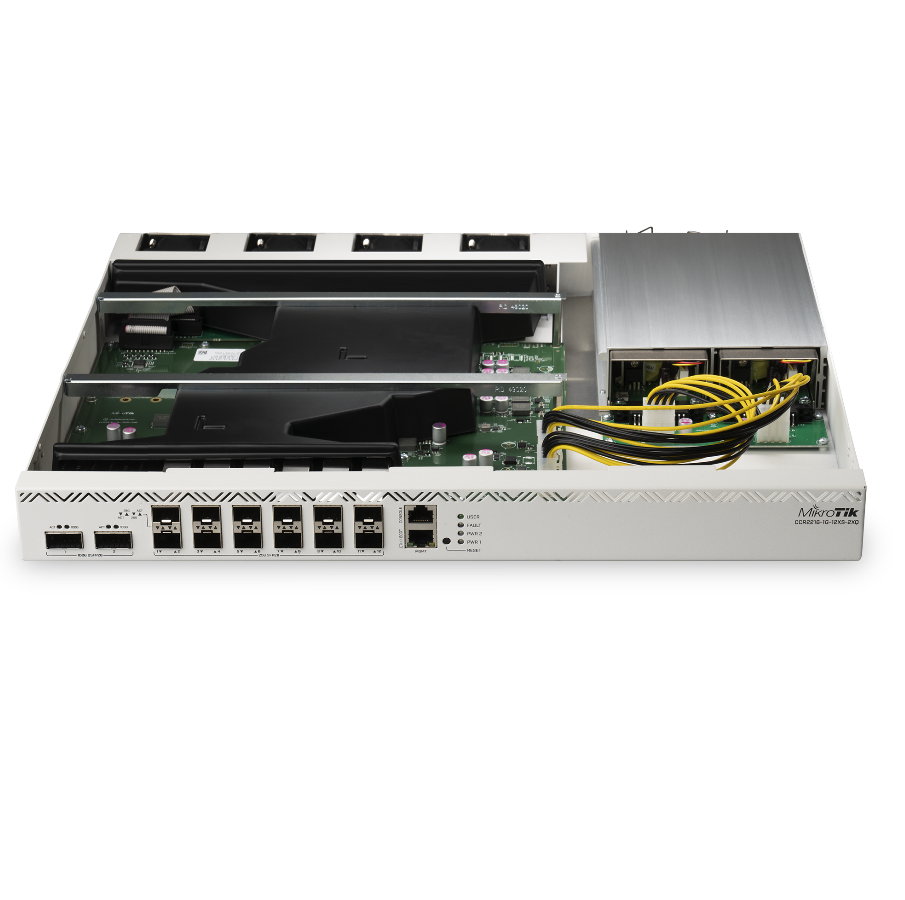

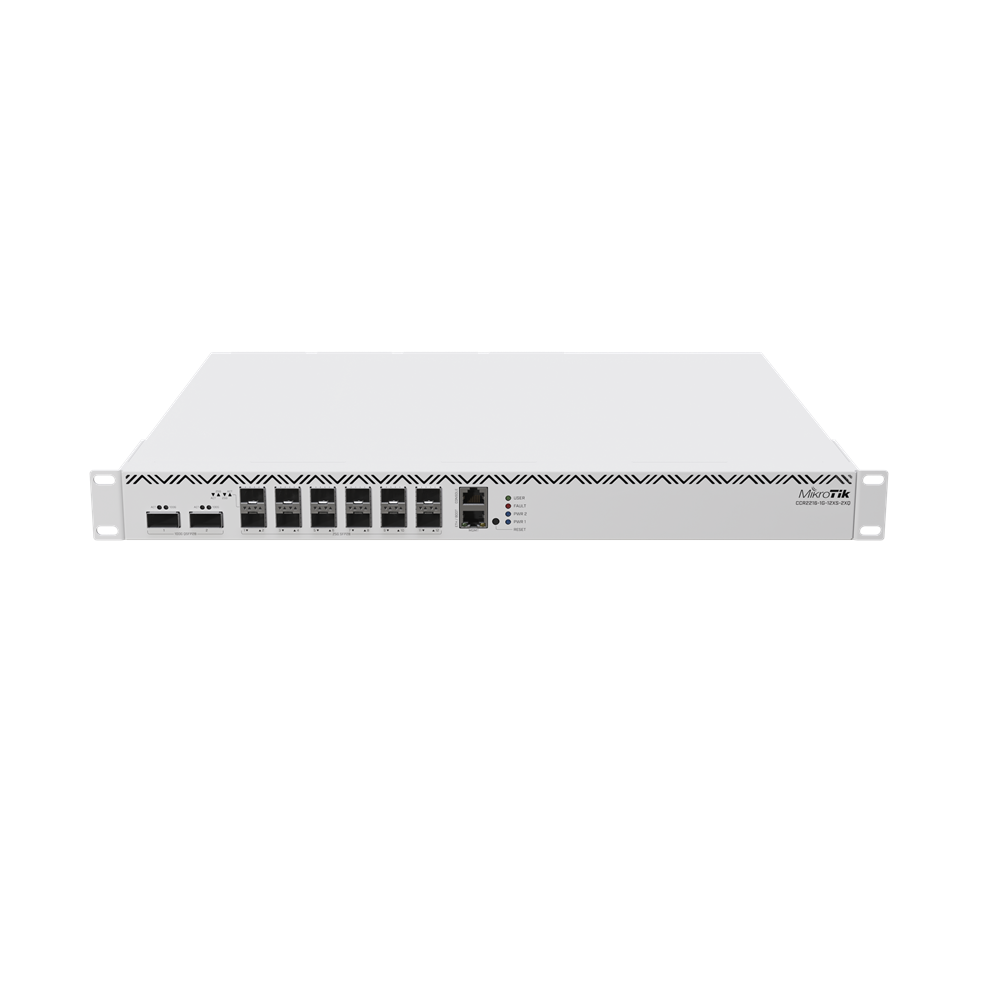

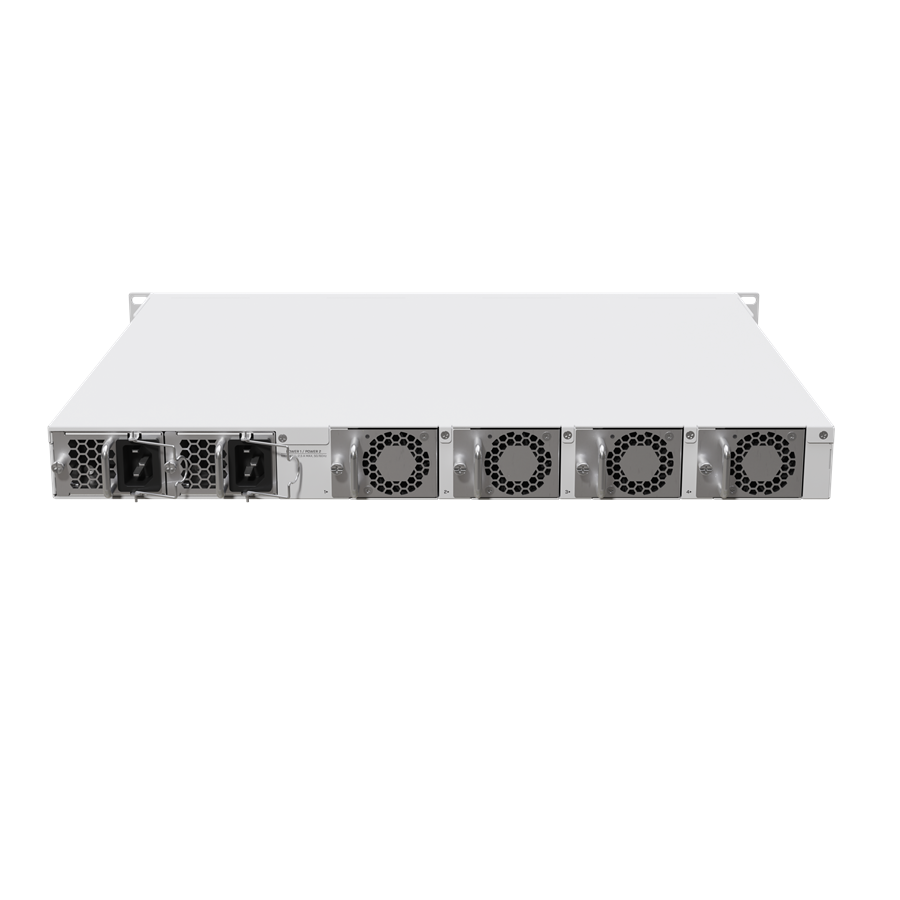

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.
Features:

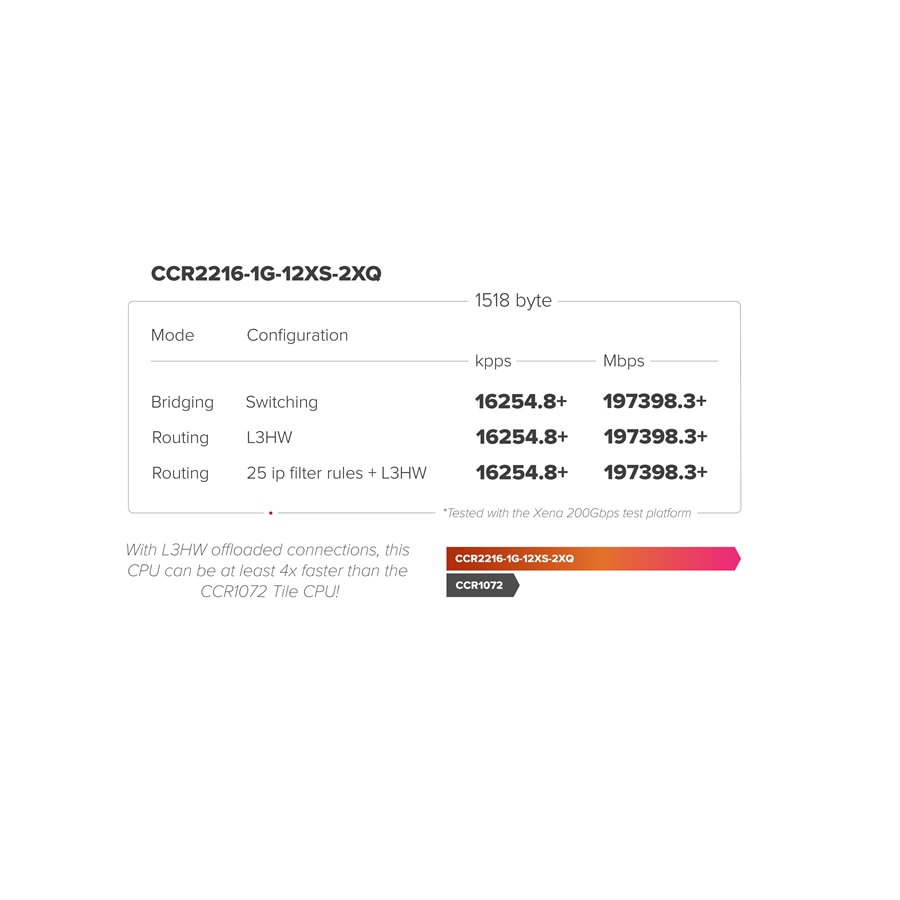

- Millions Of Packets Per Second with L3Hw Offloading!
- Powerful Amazon Annapurna Labs ARMV8 16-Core CPU
- Marvell Prestera® Aldrin2 Dx8525
- Gigabit Ethernet
- 12X 25 Gigabit SFP28
- 2X 100 Gigabit QSFP28
- Dual-Redundant Hot-Swap 150W PSU’S
- 16 Gb RAM
- 2X M.2 SATA
- Lower Power Consumption than The Previous Flagship
Specifications
Specifications CCR2216-1G-12XS-2XQ
| CPU | AL73400 2 GHz |
| CPU architecture | ARM 64bit |
| CPU core count | 16 |
| Size of RAM | 16 GB |
| RAM type | DDR4 |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 1 |
| Number of 25G SFP28 ports | 12 |
| Number of 100G QSFP28 ports | 2 |
| Number of M.2 slots | 2 |
| Operating system | RouterOS (License level 6) |
| Switch chip model | 98DX8525 |
| Switch connection to CPU | 4x25 Gbps |
| Dimensions | 443 x 367 x 44 mm 17.44" x 14.44" x 1.73" |
| Operating temperature | -20°C to +60°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Power adapter nominal voltage | 12 V |
| Power adapter nominal current | 12.5 A |
| Max power consumption (without attachments) | 80 W |
| Max power consumption | 121 W |
