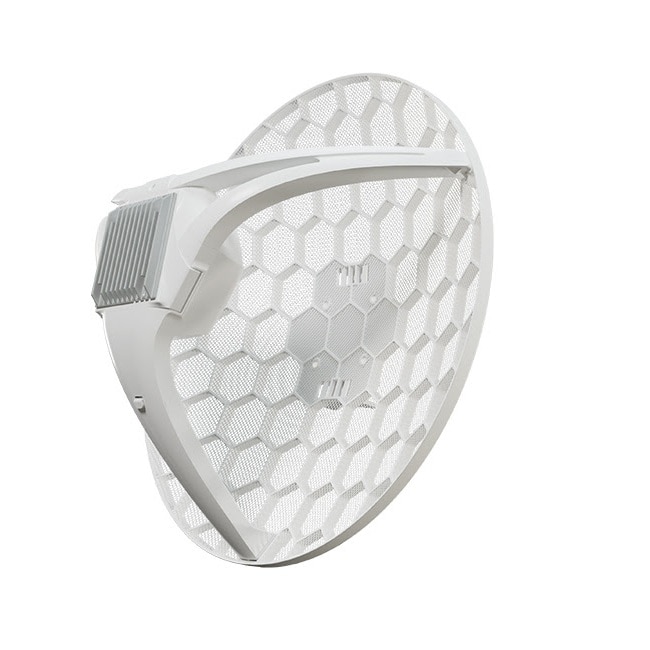

MikroTik LHG LTE18 kit 17dBi, 8W, 800MHz CPU, RAM 256MB, RouterOS v7, License level 3
- SKU: LHGGM&EG18-EA
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik LHGGM&EG18-EA
LHG LTE18 kit 17dBi, 8W, 800MHz CPU, RAM 256MB, RouterOS v7, License level 3
Great distances, even greater speed – with the power of the ultra fast LTE Category 18 modem.
Like the previous LHG LTE models, this is a lastmile-internet solution for situations when even your phone might not have any signal. The new LHG comes with a cutting-edge Category 18 LTE modem – for the fastest mobile internet no matter where you are. This kit supports speeds up to one Gbps! Due to its large high-gain 17 dBi antenna, LHG LTE18 kit can connect to cell towers in extreme rural locations where nothing else is available.
The LHG LTE18 kit features a 1.2 Gbps CAT18 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. If you’re competing for traffic in a place with poor connectivity, the new LHG will give you the upper hand. We have seen internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.
There’s a mighty high-gain antenna inside that supports a variety of LTE bands. It goes as high as 2.7 GHz. And it offers extensive low frequency coverage as well.
You’ll be using the Gigabit Ethernet port with PoE-in for powering. But we’ve included an injector as well – for traditional powering. There’s a standard MicroSIM slot for LTE connectivity. And at the heart of this useful gadget, we have a powerful 64 bit dual-core ARM CPU.
So don’t wait for cable or satellite network providers to reach you – choose LHG LTE18 kit and always stay connected!
Features:
- High-Speed Internet
- Even When Your
- Phone Has No Signal!
- Blazing Fast Cat18 Lte Modem
- Gigabit Ethernet With Poe-In
- Powerful 64-Bit Dual-Core Arm Cpu
- Large High-Gain Antenna
- Grid Antenna Design – Perfect For Harsh, Windy Weather
Specifications
Specifications
| CPU | 88F3720 800 MHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 256 MB |
| Storage | 16 MB flash |
| Number of 1G Ethernet ports | 1 |
| LTE modem | R11mL-EG18-EA |
| TAC | 86981604 |
| LTE category | 18 (1.2Gbps Downlink, 150Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20(800MHz) / 28 (700MHz) / 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| 3G category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| Micro SIM slot | 1 |
| Dimensions | 391 x 391 x 227 mm 15.39 x 15.39 x 8.93 inch |
| Operating system | RouterOS v7, License level 3 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| PoE in | 802.3af/at |
| Supported input Voltage | 12-57 V |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 0.8 A |
| Max power consumption | 8 W |
