Mikrotik RBmAP2nD mAP 2.4Ghz Access Point

  • SKU: RBmAP2nD
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!

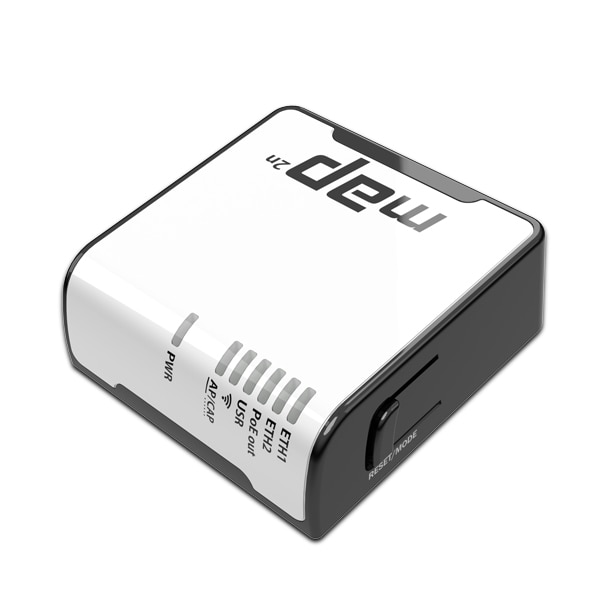

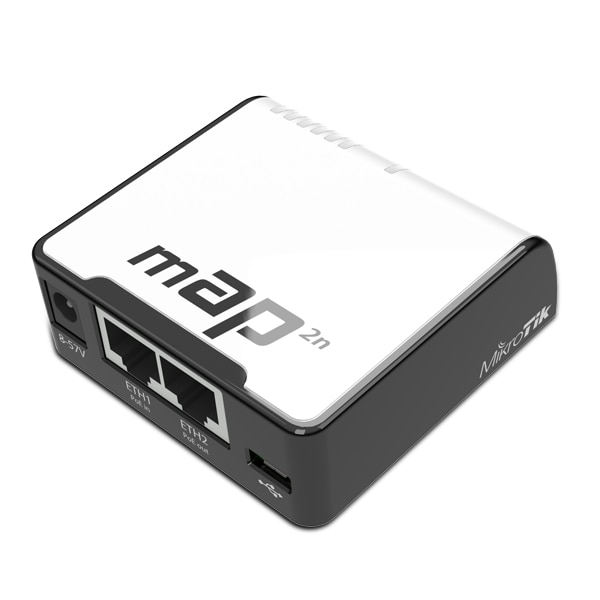

MikroTik RouterBOARD RBmAP2nD 2.4Ghz Access Point

The mAP is a tiny size wireless Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive or Active PoE (802.3af and 802.3at) and power jack.

In addition to using this device as a small and portable AP, it also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.


  • PoE in 10-57V
  • Built in 2GHz AP
  • microUSB for a 3G/4G modem, or for power input
  • Station or AP mode wireless
  • Any type PoE input 802.3af and 802.3at
  • Passive PoE output (same as input voltage)

Specifications RBmAP2nD

Product code RBmAP2nD
CPU nominal frequency 650 MHz
CPU core count 1
Size of RAM 64 MB
10/100 Ethernet ports 2
Wireless standards 802.11b/g/n
Wireless chip model QCA9531
Number of USB ports 1
Power Jack 1
802.3af support No
PoE out Yes
Supported input voltage 12 V - 57 V
PoE in 802.3af/at
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 68x68x19mm
Operating System RouterOS
Tested ambient temperature -10C to +70C tested
License level 4
Antenna gain 1.2
Max Power consumption 5W
USB slot type microUSB type AB
USB Power Reset Yes
Number of chains 2
Storage type FLASH
Storage size 16 MB
