MikroTik 6.5 dBi 915 Omni Antenna 900 - 928 MHz Antenna kit for LoRa
US$47.53 US$49.00
- SKU: 915_Omni_antenna
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik RouterBOARD 915_Omni_antenna
6.5 dBi 915 Omni Antenna 900 - 928 MHz Antenna kit for LoRa
A 900 - 928 MHz IoT antenna for your LoRa setups in the U.S., Brazil, Australia, New Zealand, and other regions that prefer a 915 MHz signal over our previous 868 MHz antenna. Comes with a durable 1 m long SMA cable and a solid IP66 water resistance rating.

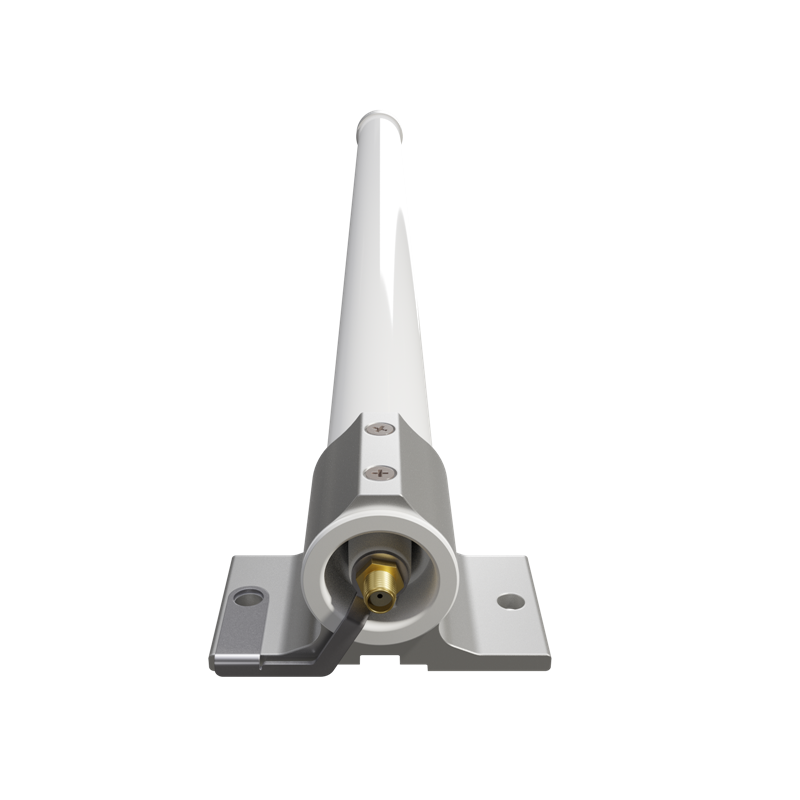

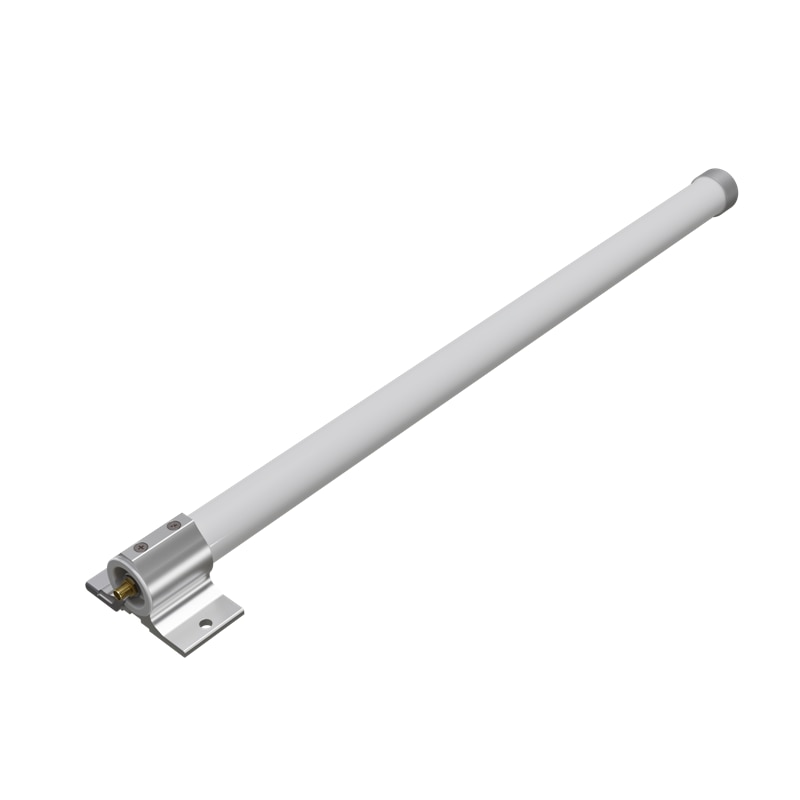

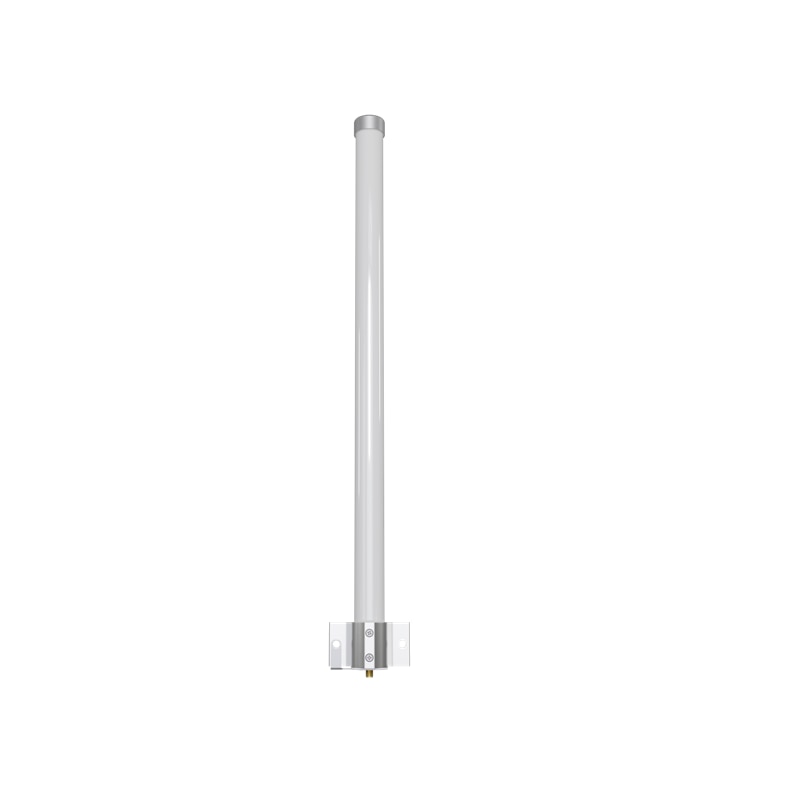

This is a 6.5 dBi omni antenna kit for LoRa® within the 900-928 MHz frequency range. It has a strong 1m long SMA cable, and a mechanical holder for quick and easy mast attachment.
The improved cable durability and the IP66 water resistance rating (protection against powerful jets) make this kit an excellent choice for all kinds of marine and coastal projects.
You can use it with the KNOT LR9 kit, wAP KR9, or other LoRa devicesbr>
Specifications
Specifications 915_Omni_antenna
| Certification & Approvals | IP 66 |
| Frequency | 900 - 928 MHz |
| Gain | 6.5dBi (868 MHz) / 4.5dBi (915 MHz) |
| Horizontal beamwidth | 360° |
| Vertical beamwidth | 30° |
| Nominal impedance | 50 Ω |
| Lightning protection | DC ground |
| Connector | SMA female |
| Weight | 0.6 kg 1.32 lbs |
| Dimensions | 42 x 68 x 495 mm 1.65" x 2.67 x 19.48 inches |
