MikroTik RB951Ui-2HnD 2.4GHz AP with 5 Ethernet ports

  • SKU: RB951Ui-2HnD
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Block Diagram: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
    Out of stock at College Station
US$‎59.95

Specifications RB951Ui-2HnD

CPU nominal frequency600 MHz
CPU core count1
Size of RAM128 MB
10/100/1000 Ethernet ports5
Wireless chip modelAR9344
Wireless standards802.11b/g/n
Number of USB ports1
Power Jack1
Supported input voltage7 V - 31 V
PoE inYes
Dimensions113x138x29mm
Operating SystemRouterOS
License level4
CPUAR9344
Max Power consumptionUp to 7W
USB slot typeUSB type A
Storage size128 MB
Storage typeNAND

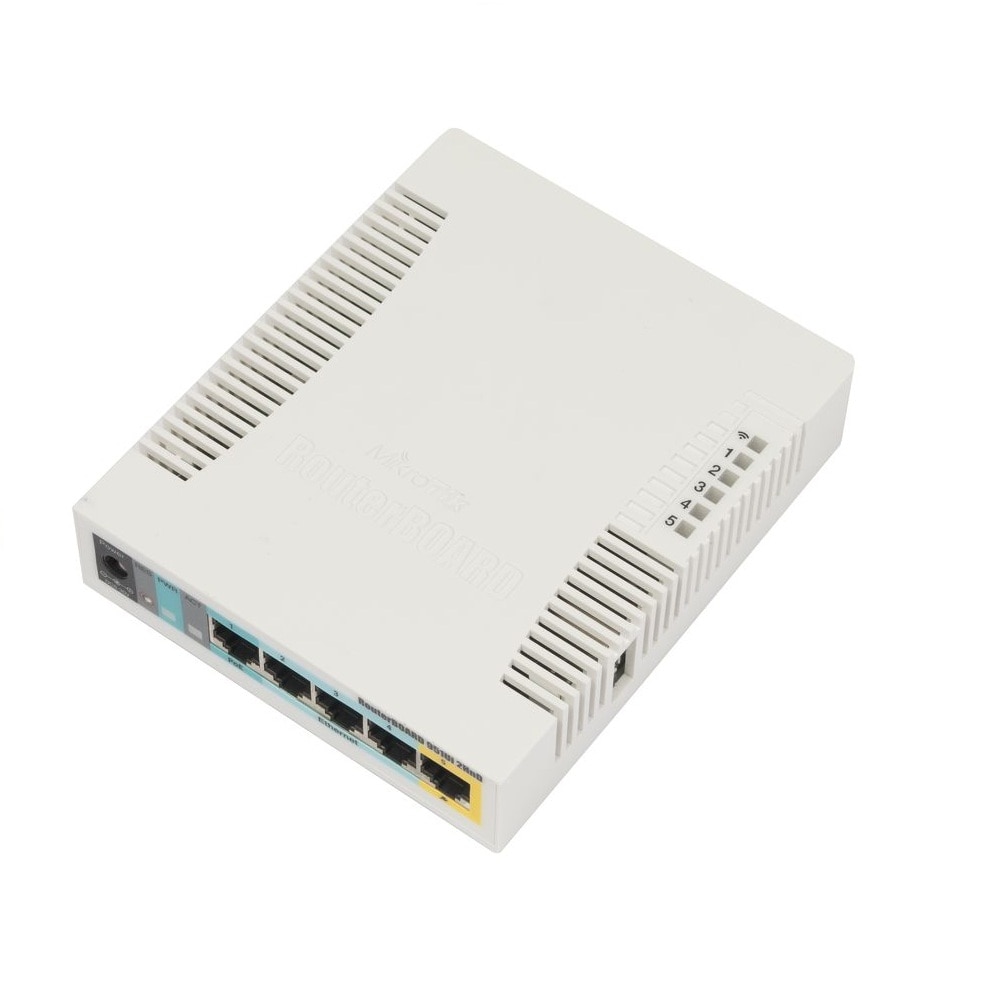

MikroTik RouterBOARD RB951Ui-2HnD

2.4GHz AP with five Ethernet ports and PoE output on port 5. It has a 600MHz CPU, 128MB RAM and a USB port

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.


Features:

  • RB951Ui-2HnD (USB, power injector, USB, 2GHz, 802.11n, dual chain)
  • CPU: Atheros AR9344 600MHz CPU
  • Memory: 128MB DDR2 onboard memory
  • Ethernet: Five independent 10/100 Ethernet ports
  • LEDs: Power, NAND activity, 5 Ethernet LEDs, wireless activity LED
  • Power in: PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC
  • Power out: PoE passive on port 5, same voltage as input.
  • Dimensions: 113x138x29mm
  • Weight: Without packaging and PSU: 232g, full weight in package: 420g
  • Power consumption: Up to 7W
  • Operating Temp: -20C .. +50C
  • Operating System: MikroTik RouterOS, Level4 license
  • Package contains: RouterBOARD in a plastic case, power adapter
  • Antennas: 2x2 MIMO PIF antennas, max gain 2.5dBi
  • RX sensitivity: 802.11g: -96dBm @ 6Mbit/s to -80dBm @ 54Mbit/s
  • 802.11n: -96dBm @ MCS0 to -78dBm @ MCS7
  • TX power: 802.11g: 30dBm @ 6Mbps to 25dBm @ 54 Mbps
  • 802.11n: 30dBm @ MCS0 to 23dBm @ MCS7
  • Modulations: OFDM: BPSK, QPSK, 16 QAM, 64QAM; DSSS: DBPSK, DQPSK, CCK
