MikroTik 10 Gigabit Ethernet Ports, Dual-Core 1200MHz, RAM 512 MB, RouterOS v7 only, License level 5
- SKU: CRS304-4XG-IN
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik RouterBOARD CRS304-4XG-IN
10 Gigabit Ethernet Ports, Dual-Core 1200MHz, RAM 512 MB, RouterOS v7 only, License level 5

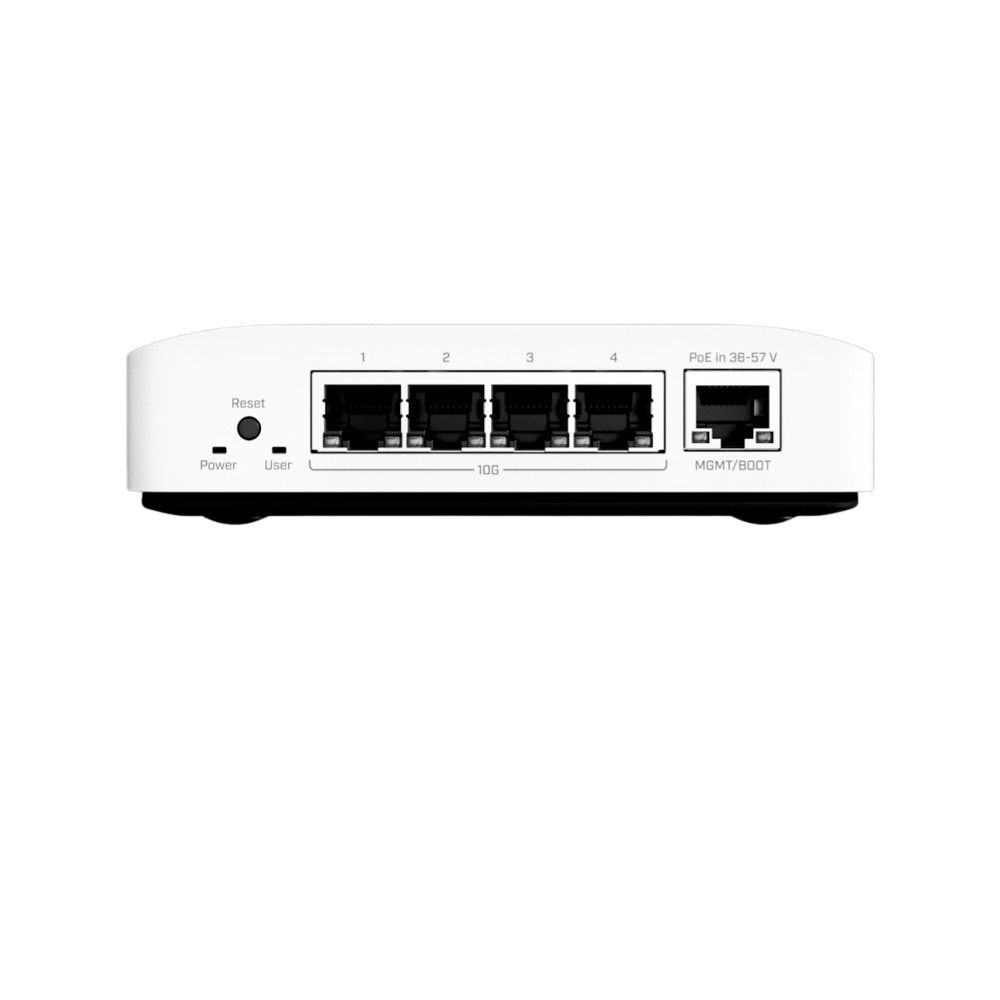

The CRS304-4XG-IN – a compact yet highly capable 10 Gigabit Ethernet switch designed to simplify your network setup routine. Unlike typical 10 Gigabit products, the new CRS304 is equipped with four ready-to-use 10 Gigabit Ethernet ports straight out of the box. That’s right – you don’t need any extra SFP modules, just pure plug-and-play! Also, there is an additional Gigabit Ethernet port – for management purposes.
Innovative Design Meets Silent Operation
The CRS304 features an enclosure that doubles as a robust, lightweight heat sink, eliminating the need for active cooling. This fanless design ensures silent operation, making it ideal for any environment where noise is a concern – offices, libraries, or even your bedroom homelab! The sturdy formfactor provides a premium feel, balancing comfortable weight and durability, all at an accessible price point.
Versatile Mounting Options

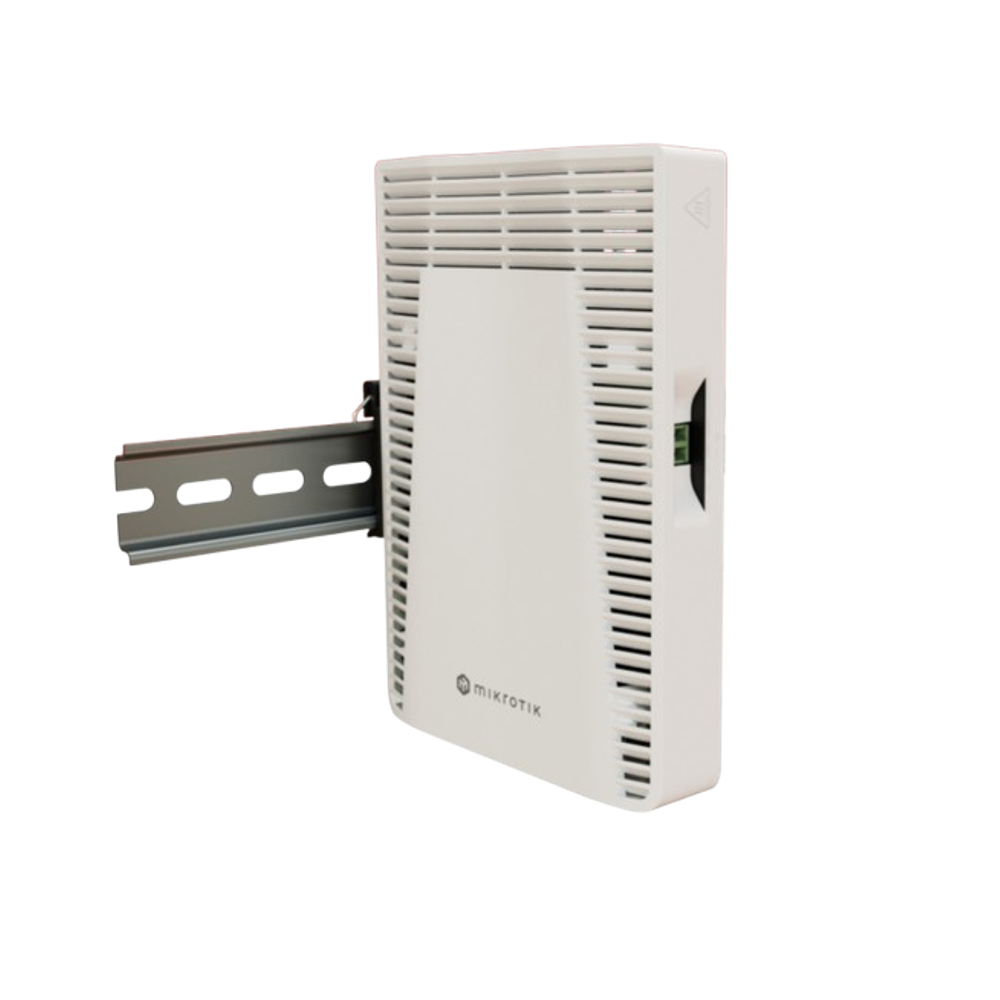

This switch includes a convenient DIN rail mount on the side and standard screw attachment points on the back, allowing for seamless integration literally anywhere. Furthermore, the side DIN rail mount can be moved to the back of the switch.
Multiple Powering Options for Ultimate Reliability

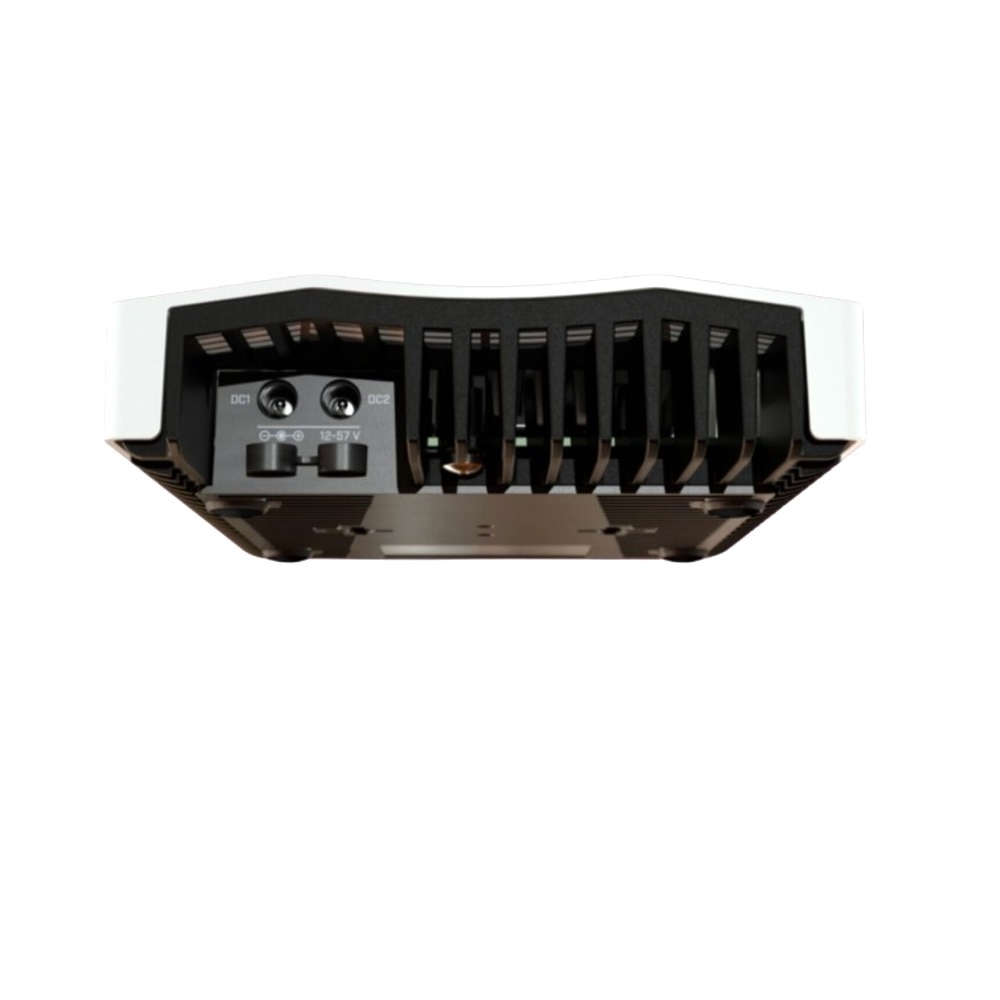

Power redundancy is a key feature of the CRS304. It offers four different power input options: two DC jacks, a 2-pin terminal, and PoE-in. The switch automatically selects the power source with the highest voltage, ensuring uninterrupted operation.
Small frame, Big Game
Powered by a dual-core ARM CPU and the mighty Marvell Prestera switch chip, the CRS304 delivers exceptional performance for its tiny size. Port-to-port forwarding, broadcast storm control, MAC filtering, VLANs, traffic mirroring, bandwidth limitations, and even some Layer 3 hardware offloading – not a problem for the CRS304-4XG-IN!
Your Backpack Server Room
The CRS304’s small form factor and enhanced durability makes it an ideal choice for both stationary and mobile applications. Place it on your desk or keep it in your backpack for on-thego networking – this is a must-have switch for any network administrator.
Features:
- Extra gigabit ethernet port for management
- Durable, lightweight enclosure
- Massive heat sink for quiet, fanless efficient
- Routeros V7 and switchos dual boot
- Multiple mounting options, din rail mount included
- 4x Ways of powering: 2x DC jacks, PoE-in, 2-pin terminal
Specifications
Specifications CRS304-4XG-IN
| CPU | Dual-Core 1200 MHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 512 MB |
| RAM type | DDR4 |
| Storage | 32 MB, Flash |
| Number of 1G Ethernet ports | 1 |
| Number of 1G/2.5G/5G/10G Ethernet ports | 4 |
| Switch chip model | 98DX2528 |
| Operating system | RouterOS v7 only, License level 5 |
| Dimensions | 176 x 128 x 35 mm 6.92" x 5.03" x 1.37" inch |
| Operating temperature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 4 (2x DC jack, 2-pin terminal, PoE-In) |
| DC jack input Voltage | 12-57 V |
| 2-pin terminal input Voltage | 12-57 V |
| PoE-In input Voltage | 36-57 V |
| PoE-In | 802.3af/at |
| Max power consumption (without attachments) | 15 W |
| Max power consumption | 21 W |
