MikroTik RBLHG-5HPnD-XL4pack-US LHG XL HP5 (4-pack)

  • SKU: RBLHG-5HPnD-XL4pack-US
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Quick Guide: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!

(click to select)

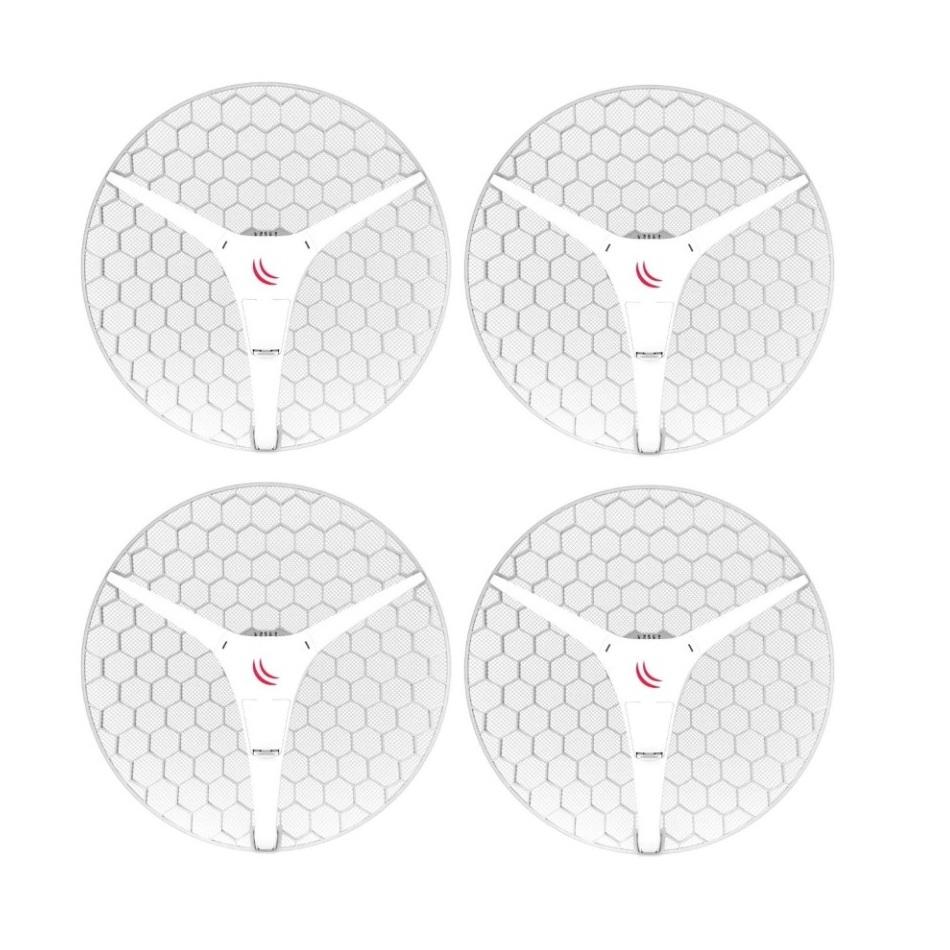

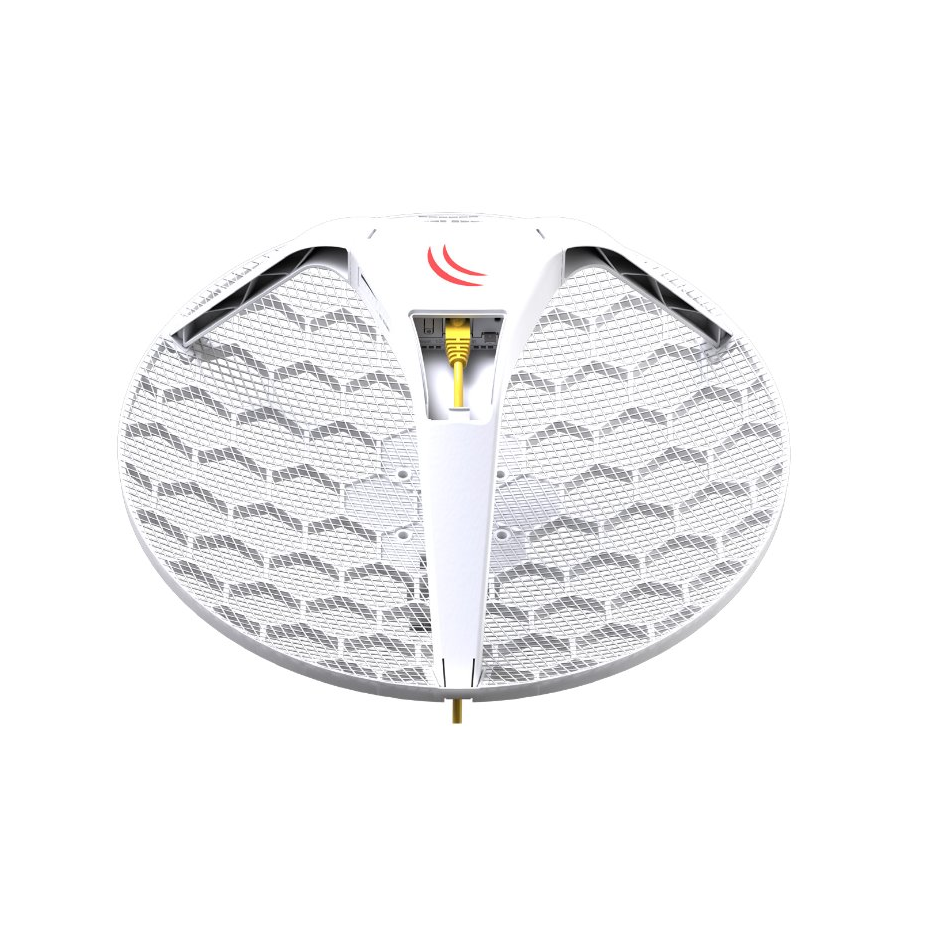

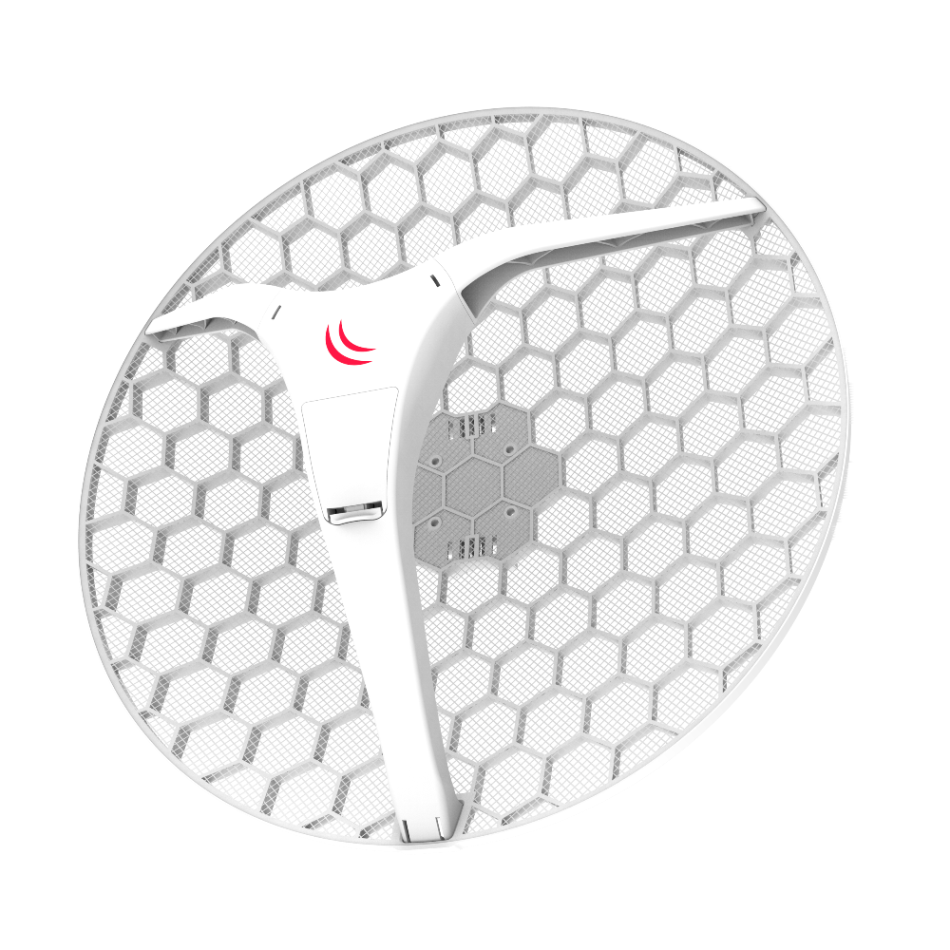

MikroTik RouterBOARD RBLHG-5HPnD-XL4pack

LHG XL HP5 with 5GHz 27dBi antenna, Dual Chain High Power 802.11an wireless, 600MHz CPU, 64MB RAM, 1x LAN, POE, PSU, RouterOS L3

We are adding two new models to our LHG product family, the LHG HP5 (high power) and LHG XL HP5 (extra large, high power). LHG HP5 comes with two times more output power than our regular LHG 5 - up to 630 mW, and is designed to reach up to 60% longer distances.

The LHG XL HP5 has a bigger 27dBi antenna with 630mW TX output power, designed to reach up to 40km in point-to-point setups at full speed.

All units come with a PoE injector, power supply and pole mount, ready to be deployed.

Specifications RBLHG-5HPnD-XL4pack

CPU nominal frequency 600 MHz
Size of RAM 64 MB
Storage 16 MB Flash
10/100 Ethernet ports 1
Wireless Built-in 5 GHz 802.11a/n, dual-chain
Wireless chip model AR9344
Operating frequency International: 5150 - 5875 MHz
USA: 5170 - 5250 MHz; 5725 - 5835 MHz
Antenna gain 27 +/- 0.5 dBi
Antenna beam width6,4°
Cross polar 21 dBi
Port to port isolation18 dB
Front to back ratio35 dB
Return loss 14 dB
PoE in Yes
Supported input voltage 10 V - 28 V (passive PoE)
ind loading 186N @ 205 km/h
Operating temperature -40 to 70° C
Operating humidity 5 to 95% noncondensing
Shock and vibration ETSI300-019-1.4
ETSI specification EN 302 326 DN2
Dimensions Ø 550 x 245 mm; package 585 x 595 x 138 mm
Weight Unit: 945 g; package: 2.99 kg
Max Power consumption7 W
