  • MikroTik RBSXTsq2nD SXTsq Lite2 CPE for 2.4Ghz Integrated Antenna

MikroTik RBSXTsq2nD SXTsq Lite2 CPE for 2.4Ghz Integrated Antenna

  • SKU: RBSXTsq2nD
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Block Diagram: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
US$‎39.00

MikroTik RouterBOARD RBSXTsq2nD

MikroTik SXTsq Lite2 CPE for 2.4Ghz Integrated Antenna

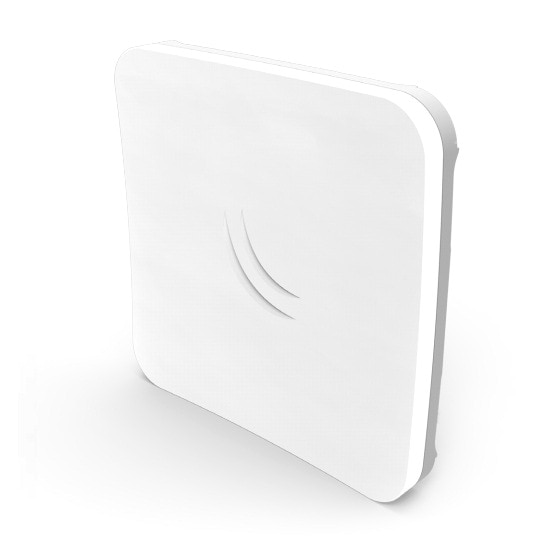

The SXTsq Lite2 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount.

 The SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

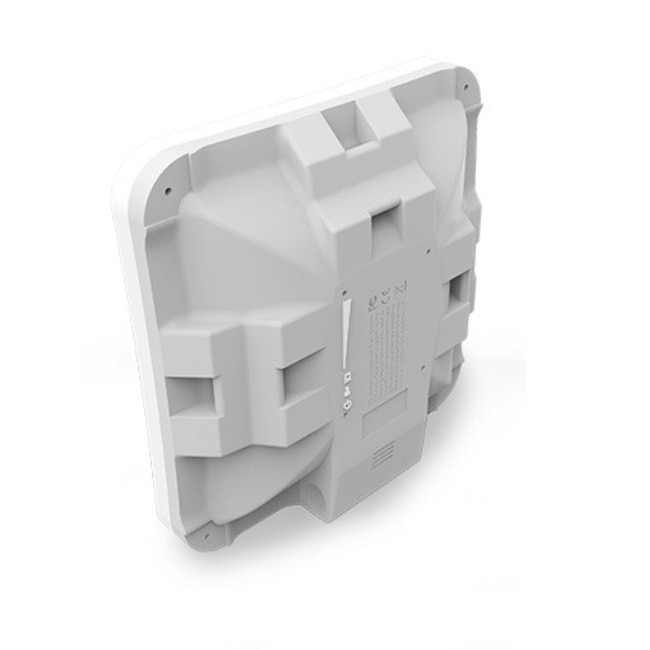

The enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. The device includes one 10/100 Mbit Ethernet port. There is also an easily accessilble grounding connection to protect it against lightning.

Specifications RBSXTsq2nD

Product code RBSXTsq2nD
CPU QCA9533
CPU nominal frequency 650 MHz
CPU core count 1
Size of RAM 64 MB
Storage 16 MB Flash
10/100 Ethernet ports 1
Wireless bands 2.4 GHz radio
Wireless regulations Specific frequency range may be limited by country regulations
Operating frequency 2412 - 2484 MHz
Protocols 802.11b/g/n
Chains 2
Antenna gain 10 dBi
Antenna beam width 60°
Wireless chip model QCA9533
PoE in Yes
Supported input voltage 10 V - 30 V, Passive PoE
Dimensions 129 x 129 x 34 mm; package: 255 x 180 x 45 mm
Weight Unit: 295 g; package: 492 g
Operating temperature -40 to 70° C
License level 3
Operating System RouterOS
Max Power consumption 5 W
