MikroTik RBcAPGi-5acD2nD-US cAP ac Dual Band Wall/Ceiling AP (US Version)

  • SKU: RBcAPGi-5acD2nD-US
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Block Diagram: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!

Tariffed Items

MikroTik RouterBOARD RBcAPGi-5acD2nD-US (US Version)

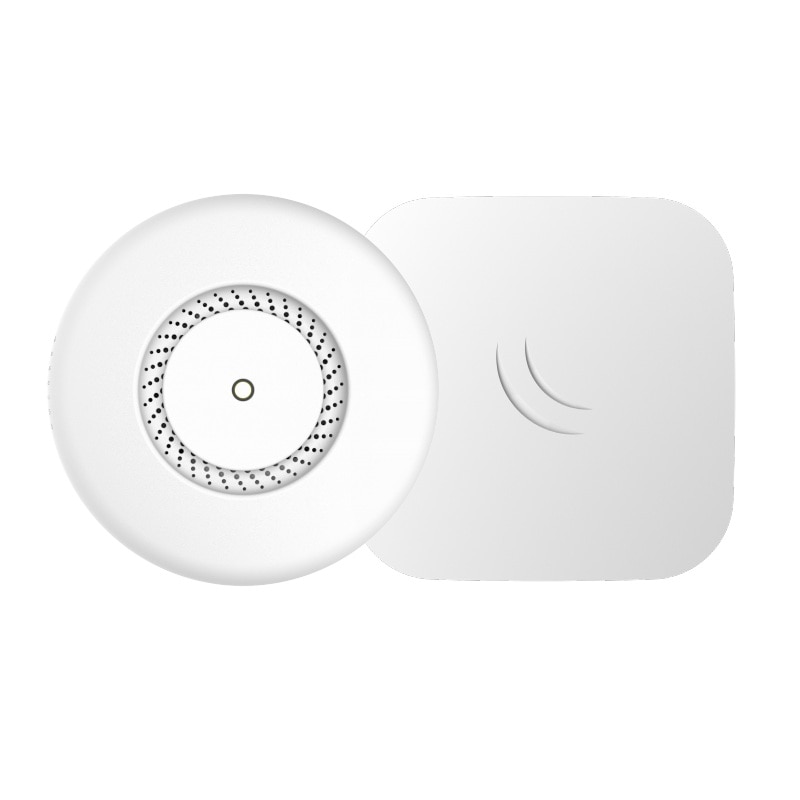

cAP ac Dual Band Wall/Ceiling Access Point

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.

Two Gigabit Ethernet ports give you the ability to extend your network with cables, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port.

The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with the push of a button - the customizable mode button in the device center will turn off all lights and sounds at it’s default configuration, but can be reconfigured to launch any RouterOS script.

Specifications RBcAPGi-5acD2nD

CPU nominal frequency716 MHz
Size of RAM 128 MB
Storage type Flash
Storage size 16 MB
10/100/1000 Ethernet ports2
Wireless bands2.4 GHz5 GHz
Wireless regulations Specific frequency range may be limited by country regulations
Operating frequency International 2412 - 2484 MHz USA 2412 - 2462 MHz International 5150 - 5875 MHz USA 5170 - 5250 MHz 5725 - 5835 MHz
Protocols 802.11b/g/n802.11ac
Chains 22
Antenna gain 2 dBi2 dBi
Wireless regulationsSpecific frequency range may be limited by country regulations
Power optionsPoE-in 802.3af/at, PoE-out (Passive, Ethernet port 2), 17-57 V
LEDs7x LEDs (1x user LED)
Operating temperature 40°C .. +70°C tested
Dimensions Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
License level 4
Operating System RouterOS
Max Power consumption13 W
