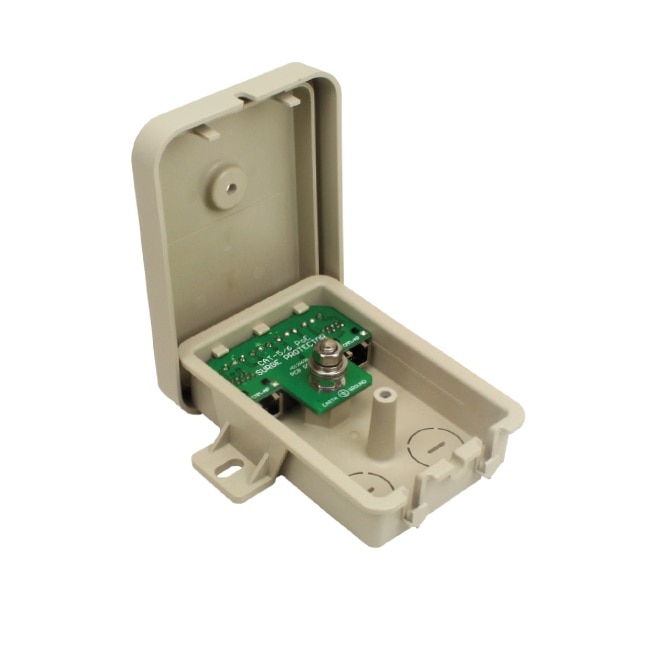

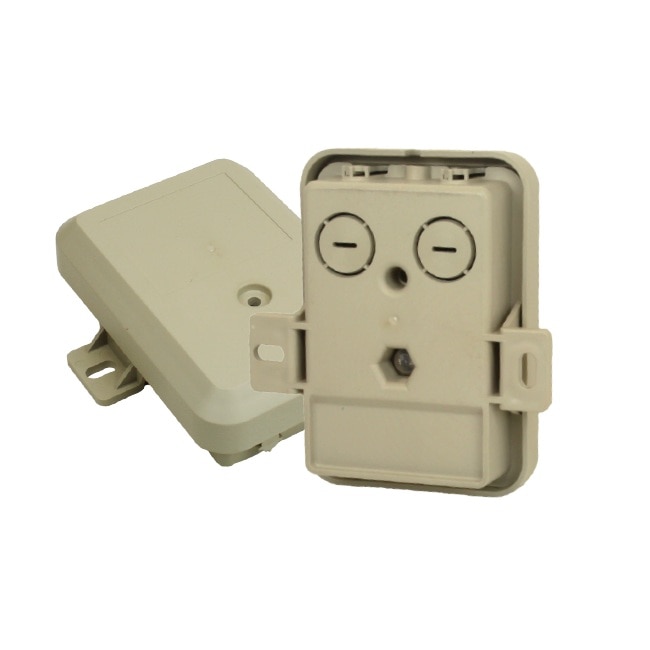

Perfect Vision Surge Protector, Cat 5/6
- SKU: XCATSURGE-GLP
- Manufacturer: Perfect Vision
- Data Sheet: Download
Product Information
Perfect Vision XCATSURGE-GLP Surge Protector, Cat 5/6
Specifications
Specifications XCATSURGE-GLP
ELECTRICAL
| XCATSURGE-GLP | 1-6 LINE | 7-8 LINE |
| Surge Arrestor Type | Gas discharge Tube | Gas discharge Tube |
| Working (Nominal) Voltage | DC5V | DC48V |
| DC Sparkover | 90V+/20% | 230V+/-20% |
| Impulse Sparkover | <=600V | <=700V |
| Impulse Discharge Current | 1KA | 1KA |
| Capacitance | 1.5PF | 1.5PF |
| Data Line Impedance | 100 Ohm | 100 Ohm |
| Insertion Loss | <0.5 dB | <0.5 dB |
MECHANICAL
| Connector Type | RJ45 |
| Enclosure Color | Gray |
| Enclosure Material | ABS |
| Shell Protection Level | IP20 |
| Flame Retardant Rating | UL940V0 |
| Working Temperature | -25° to 70°C |
| Relative Humidity | < 95% RH |
| Ground Lug | 12 AWG, 6.3 mm |
| Weight | 185g |
| Dimension | 124 x 122 x 43 mm |
