Primus Cable CAT5E Outdoor Bulk Ethernet Cable, Direct Burial Shielded Solid Copper 24 AWG - 1000ft

(0) No Reviews yet
  • SKU: C5CMXT-6630
  • Manufacturer: Primus Cable
  • Availability: Open chat or call usEmail me when this product is in stock!
$185.99

Specifications C5CMXT-6630

Physical Characteristics
Conductor Size24AWG
Conductor MaterialSolid Bare Copper
Nominal OD0.5 ± 0.005 mm
Number of Conductors8 Conductors
Insulation MaterialHigh Density Polyethylene (HDPE)
Insulation Diameter1.00 ± 0.05mm
Number of Pairs4 Pairs
Drain WireTinned Copper
Outer Shield MaterialAL Foil/Mylar
Outer Jacket Rip CordYes
Outer Jacket MaterialPE (Complies RoHS)
Outer Jacket Diameter6.8mm ± 0.5mm
Jacket Thinckness0.60 ± 0.05mm
Screening MaterialMylar + Water Blocking Tape + Al/Mylar

Mechanical Characteristics
Storage Temperature RangeN/A
Installation Temperature RangeN/A
Operating Temperature RangeN/A
Bulk Cable Weight30.00 lbs. / 1000FT
Max. Recommended Pulling TensionN/A
Min. Bend Radius/Minor AxisN/A
Min. Bend/InstallationN/A
Test ObjectJacket
Test MaterialPVC
Before Tensile Strength≥ 10.0
Aging Elongation≥ 350
Aging Condition100°C x 24hrs x 10Days
After Tensile StrengthN/A
Aging Elongation≥ 300
Cold BendNo Visible Cracks (-20°C ± 2°C x 4h)

Electrical Characteristics
Maximum Capacitance Unbalance to earth330 (pf/100m)
Nominal Velocity of Propagation68%
Maximum Delay498 @ 16.0MHz (ns/100m)
Maximum Delay Skew≤ 45 (ns/100m)
Maximum Conductor DC Resistance9.38 (@ 20°C OHm/100m)
Maximum Operating VoltageN/A
Maximum DCR Unbalanced5% (@ 20°C)
Attenuation (Maximum)26.7dB/80m (262.5ft.) @ 155MHz 42.6dB/80m (262.5ft.) @ 350MHz
1.0 - 250MHz Impedance100Ω ± 15
NEXT (Minimum)29.2dB/80m (262.5ft.) @ 155MHz 23.3dB/80m (262.5ft.) @ 350MHz
PS-NEXT (Minimum)26.2dB/80m (262.5ft.) @ 155MHz 20.3dB/80m (262.5ft.) @ 350MHz
Return Loss (Minimum)11.8dB/80m (262.5ft.) @ 155MHz 4.7dB/80m (262.5ft.) @ 350MHz

Primus Cable C5CMXT-6630

Shielded CAT5E Outdoor Direct Burial Ethernet Cable with Dry Gel Tape

Primus Cable's Outdoor Direct Burial CAT5E Cable with Dry Gel Tape is ideal for your outdoor voice, data, video and security networking applications. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

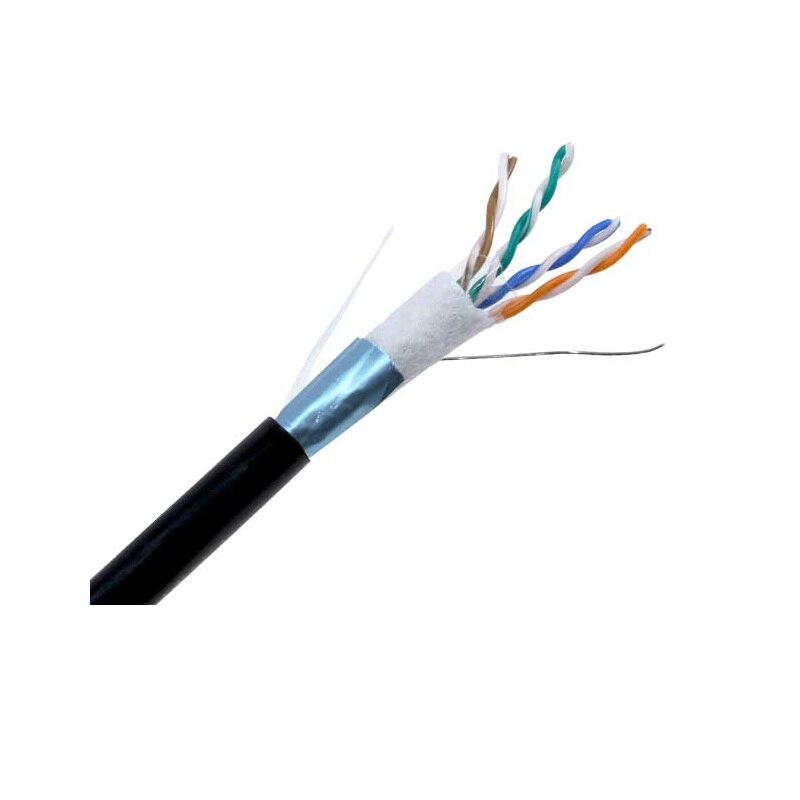

This Shielded CAT5E Outdoor Direct Burial Cable is the perfect fit for installations where the cable will be buried under ground in conduit. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a polyethylene (PE) Jacket. This cable also includes an aluminum foil shielding which helps eliminate and protect against electrical interferences that could impede your signal. For added moisture protection this cable includes a waterblock tape that absorbs water which keeps it out of the cable and away from the conductors. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. Our Shielded Category 5E Water Block Layer Direct Burial Outdoor Cable is designed for residential outdoor direct burial LAN applications, making it the ideal solution for installation runs that require the cable to be buried under ground in conduit. This cable was also designed with a UV resistant outer jacket, which helps prevent cables from cracking and braking because of sun damage.

To make sure we are supplying our customer with high quality bulk Ethernet cables our cable have to meet and/or exceeds CAT5E TIA 568 C.2 standards and is tested up to speeds of 350MHz. Our CAT5E Outdoor cable is also manufactured to meet current CAT5E guidelines and is verified by outside standards organizations and is RoHS Compliant.


Features:

  • High-Performance Data Communications Cable
  • CAT5E Outdoor Direct Burial, Outside Plant
  • Dry Gel Water Blocking Tape
  • Suitable For 350MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
  • Designed For Outdoor Direct Burial Installations (CMX)
  • UV Resistant Outer Jacket prevents cracking and sun damage
  • Aluminum Foil Shielded w/ Unshielded Twisted Pairs (F/UTP)
  • 4-Pair Easily Identified Color Striped Pairs
  • 24 AWG Solid Bare Copper Conductors
  • Excellent Attenuation And Crosstalk Characteristics
  • Exceeds TIA 568C.2, ISO/IEC 11801, And YD/T1019 Specifications
  • RoHS Compliant
  • Sequential Length Markings On Jacket

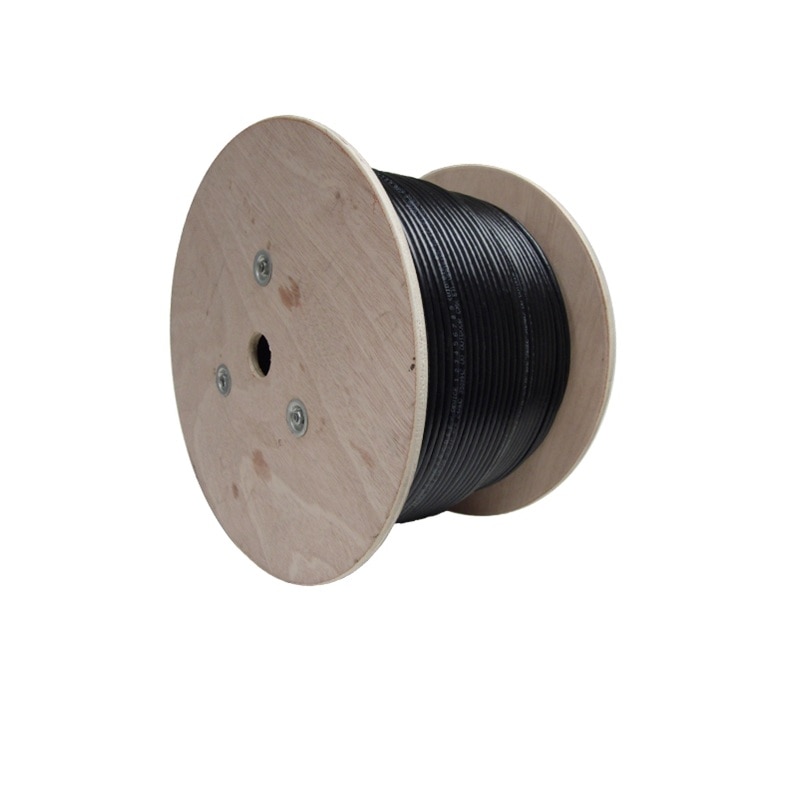

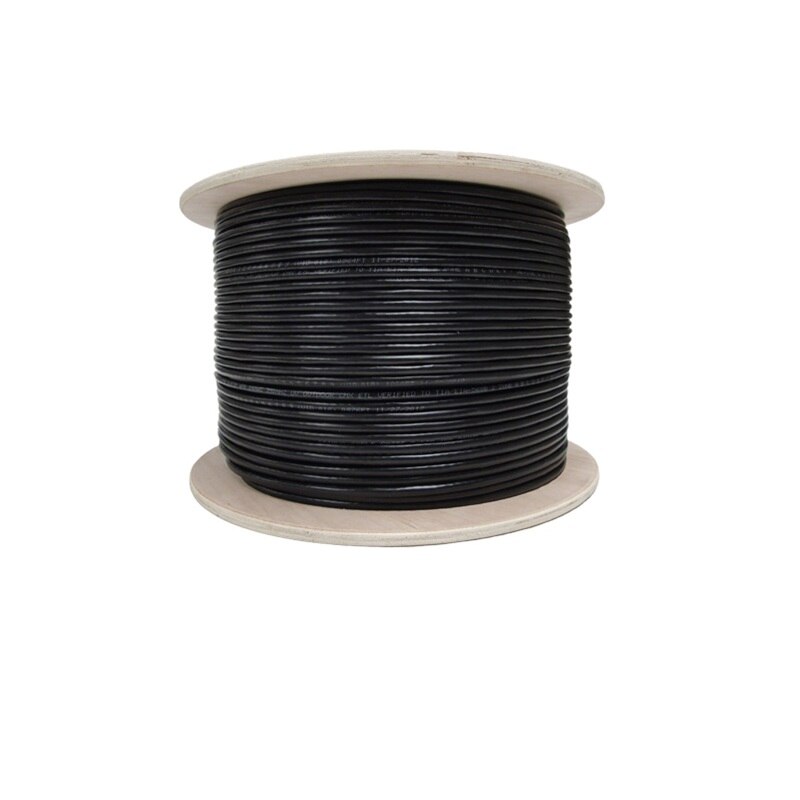

  • Supplied On A 1000' Spool
