Rohn H40 Telescoping Mast
The Rohn H40 is a 36-foot telescoping antenna mast
Features:
- 40 Ft Heavy Duty Telescoping (Push-Up) Mast
- Galvanized heavy-duty telescoping (push-up) mast.
- Top section is 1-1/4" Dia . 16 gauge tubing, all other sections are 18 gauge.

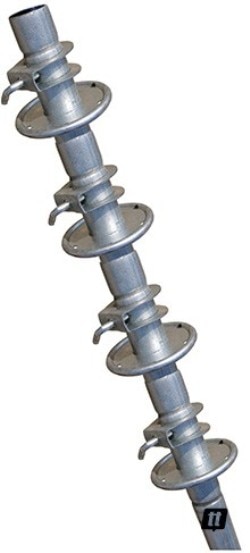

Used for Off-Air TV Antenna, Amateur (Ham) Radio, Wireless Internet Antenna, MMDS, and Cell Phone Signal Booster Installations (not included). All Telescoping push-up Masts are galvanized and come with hardware designed to support light-duty antennas in various applications. The unique Rohn design features interior tube flanging combined with a double crimped exterior tube to produce a stronger and more stable joint than the most common mast. Each section extends deeper into the lower tubes than most designs, adding to the mast's stability. Height describes the overall pipe length. Due to overlapping, the extended masts will be shorter. This Mast extends to about 35 Feet in actual height, which ships to Commercial and Residential addresses alike. The Estimated Usable Extended Height is around 35 feet.

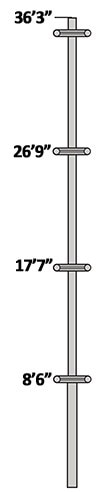

Mast Section Dimensions are:
(1) 10'0" length x 1.25" O.D. (16 AWG)
(2) 9'10" length x 1.50" O.D. (18 AWG)
(3) 9'04" length x 1.75" O.D. (18 AWG)
(4) 8'10" length x 2.00" O.D. (18 AWG)
Specifications
Specifications Rohn H40
Brand | ROHN |
Manufacturer's Part Number | H40 |
Part Type | Telescoping Masts |
Mast Maximum Height | 36.25 ft |
Mast Bottom Outside Diameter | 2.000 in |
Mast Top Outside Diameter | 1.250 in |
Mast Section Count | 4 |
Mast Collapsed Length | 10.25 ft |
