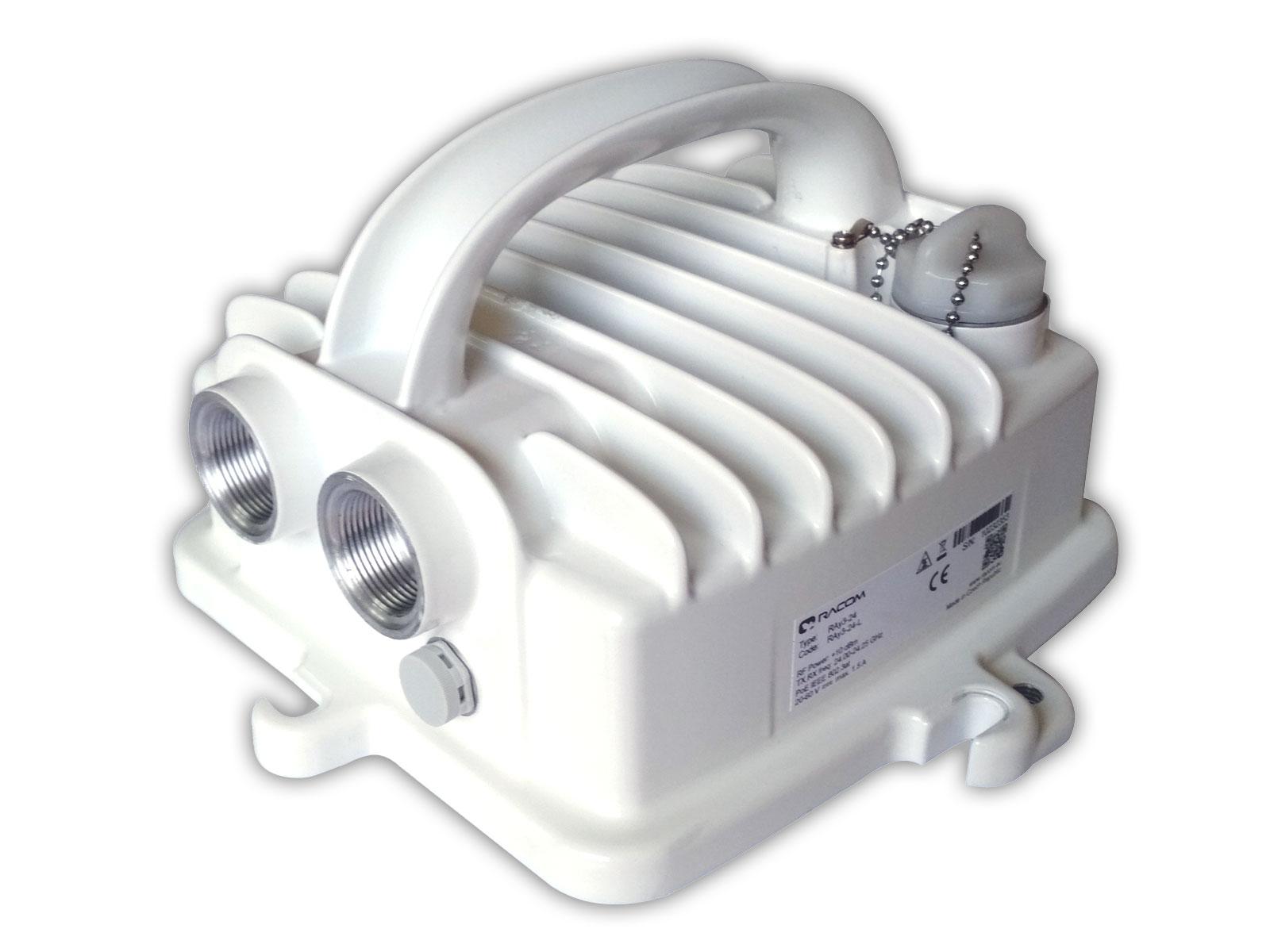

Racom Ray3 IPLINK 24GHz, Upper Part

US$‎1,999.00 US$‎2,199.00
  • SKU: RAy3-24E-U (1000)
  • Manufacturer: Racom
  • Data Sheet: Download
  • User Manual: Download
  • Availability: 13 In Stock    (updated live)
    13 In stock at College Station
US$‎1,999.00 US$‎2,199.00

1 Gbps FDD in Unlicensed 24GHz

Exceptional sensitivity and robustness to interference

High data speed even in the most challenging conditions

Links over extreme distances

Ultra-low latency

High sensitivity = smaller antennas

Antenna sizes of 1ft, 2ft, 3ft and 4ft supported

Transmit power of +10dBm

Asymmetric combinations of all 12 channel widths (3.5 – 112 MHz)

Asymmetric combinations of all 19 modulations (QPSK – 4096 QAM)


RAy is a high-speed, industrial grade, point-to-point microwave link. Thanks to its exceptional resistance to interference, RAy provides the most stable links even on busy sites. A Full Outdoor Radio, it is ideal where high performance links with maximum reliability are required. Designed with attention to detail and implementing all relevant state-of-the-art concepts, this high quality microwave link provides excellent performance characteristics.

RAy has been on the market since 2009 and is used in thousands of installations from the poles to the equator.

RAy3, the 3rd generation of RAy, was released in 2019, setting a new standard and providing significant improvements in data speed and security features with up to 1 Gbps FDD available. Using RAy's option of asymmetric channels, the user can maximize spectrum availability making RAy3 a leading choice for license free bands.


    Radio parametersRAy3
    Frequency range17.10 – 17.30 GHz; 24.00 – 24.25 GHz
    Channel spacing3.5, 5, 7, 10, 14, 20, 28, 40, 56, 80, 100, 112 MHz
    Channel duplex spacingFlexible, min.18 MHz between channel edges
    Gross data rate2.7 – 1002 Mbps
    FECLDPC, RS
    Data speed / Sensitivity – detail
    Modulation3.5 MHz56 MHz112 MHz
    QPSK_S(6)2.7 Mbps / -99.0 dBm48 Mbps / -88.0 dBm97 Mbps / -85.0 dBm
    QPSK5.0 Mbps / -94.5 dBm81 Mbps / -84.5 dBm161 Mbps / -81.5 dBm
    16 QAM9.5 Mbps / -88.5 dBm168 Mbps / -77.5 dBm334 Mbps / -74.5 dBm
    32 QAM11 Mbps / -85.0 dBm213 Mbps / -73.5 dBm426 Mbps / -70.5 dBm
    64 QAM15 Mbps / -82.0 dBm267 Mbps / -70.5 dBm536 Mbps / -67.5 dBm
    128 QAM17 Mbps / -79.0 dBm319 Mbps / -67.5 dBm636 Mbps / -64.5 dBm
    256 QAM19 Mbps / -76.0 dBm366 Mbps / -64.5 dBm730 Mbps / -61.5 dBm
    512 QAM22 Mbps / -73.0 dBm413 Mbps / -61.5 dBm823 Mbps / -58.5 dBm
    1024 QAM23 Mbps / -69.5 dBm459 Mbps / -58.5 dBm918 Mbps / -55.5 dBm
    2048 QAM (7 – 112 MHz)501 Mbps / -55.5 dBm1002 Mbps / -52.5 dBm
    4096 QAM (14 – 56 MHz)540 Mbps / -52.5 dBm
    ACMHitless
    RF Output power-30 to +10 dBm
    ATPCYes
    MTU10240 bytes
    Latency (RFC 2544)268 µs (64B/366 Mbps); 313 µs (1518 B/366 Mbps)
    173 µs (64B/1002 Mbps); 198 µs (1518 B/1002 Mbps)
    SynchronizationSynchronous Ethernet; 1588v2 transparent clock
    Electrical
    Primary powerPoE active 37 – 60 VDC, IEEE 802.3at; PoE passive 20 – 60 VDC; DC 20 – 60 VDC; floating
    Power consumptiontyp. 22.5 W (w/o SFP)
    Interfaces
    Ethernet1× 10/100/1000 Base-T Auto MDI/MDIX / RJ45
    SFP1× 10/100/1000 Base-T/1000Base-SX/1000Base-LX (power max. 1.25 W)
    USBUSB 2.0 / Host A
    RSS voltageTwo contact sockets
    Indication LEDSYS
    Environmental
    IP Code (Ingress Protection)IP66
    MTBF (Mean Time Between Failure)> 750.000 hours (> 85 years)
    Operating temperature-30 to + 55°C (ETSI EN 300019-1-4, class 4.1.)
    Operating humidity5 to 95% non-condensing
    Surge immunity4 kV acc. EN 61000-4-5
    ESD resistance8 kV acc. EN 61000-4-2
    Mechanical
    CasingRugged die-cast aluminium
    Size160 H x 245 W x 245 D mm (6.3 x 9.6 x 9.6 in)
    Weight2.6 kg (5.7 lbs)
    MountingFOD, direct mounting to antenna
    Diagnostic
    Real time monitoringRSS, MSE, BER
    Diagnostic toolsSpectrum analyzer, Pinger, Constellation diagram
    History chartsTemperature, Power voltage, RSS, MSE, BER, Data rate, RF Output power
    StatisticsRMON counters for all interfaces
    Antenna alignmentRSS voltage, RAy Tools, web
    SNMPv2c including configurable TRAPs
    Security
    ManagementHTTP, HTTPS, SSH, Telnet, RAyTools App
    Access accounts3 levels (Guest, Admin, Super)
    EncryptionAES256, 192, 128
    Standards
    Approvals17 GHz CE (RED), RoHS
    24 GHz CE (RED), FCC, RoHS

    Technical parameters are subject to change without prior notification.

    (6) Stability optimized (stronger) FEC
