Rohn Telescoping Mast, 30ft
Specifications Rohn H30
|Part Type||Telescoping Masts|
|Mast Maximum Height||28.00 ft|
|Mast Bottom Outside Diameter||1.750 in|
|Mast Top Outside Diameter||1.250 in|
|Mast Section Count||3|
|Mast Collapsed Length||10.25 ft|

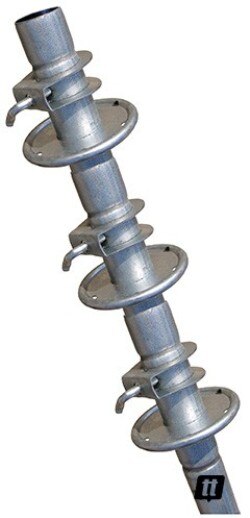

Rohn H30 Mast Telescoping
ROHN telescoping mast. Galvanized tubing with competitive staggered length feature. Tubing is 16 gauge 1-1/4"" top section, 18 gauge 1-3/4"" bottom section.
Used for Off-Air TV Antenna, Amateur (Ham) Radio, Wireless Internet Antenna, MMDS and Cell Phone Signal Booster Installations (not included). All Telescoping push-up Masts are galvanized and come with hardware designed to support light duty antennas in various applications. The unique Rohn design features interior tube flanging combined with a double crimped exterior tube to produce a stronger and more stable joint than most common mast. Each section extends deeper into the lower tubes than most designs, adding to the masts stability. Height describes the overall pipe length. Due to overlapping, extended masts will be shorter. This Mast extends to about 27 Feet in height that ships to Commercial and Residential addresses alike. Estimated Usable Extended Height is around 27 Feet.

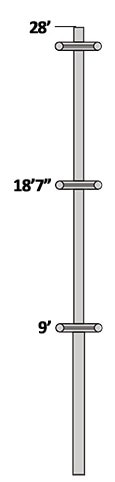

Mast Section Dimensions are:(1) 10'0"" length x 1.25"" O.D. (16 AWG)
(2) 9'10"" length x 1.50"" O.D. (18 AWG)
(3) 9'04"" length x 1.75"" O.D. (18 AWG)
