Rohn Telescoping Mast, 50ft

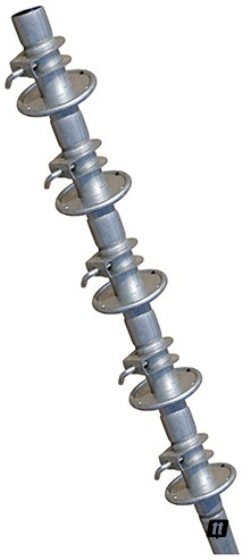

Rohn H50 Telescoping Mast
The ROHN 9H50 Telescoping Mast is pre-galvanized for corrosion protection and comes assembled with hardware. It is meant for use in guyed or bracketed installations. Please note that guys, guy wire, anchors, and base mount are not included. Height refers to overall pipe length. Actual assembled height will be less due to overlapping.
Used for Off-Air TV Antenna, Amateur (Ham) Radio, Wireless Internet Antenna, MMDS and Cell Phone Signal Booster Installations (not included). All Telescoping push-up Masts are galvanized and come with hardware designed to support light duty antennas in various applications. The unique Rohn design features interior tube flanging combined with a double crimped exterior tube to produce a stronger and more stable joint than most common mast. Each section extends deeper into the lower tubes than most designs, adding to the masts stability. Height describes the overall pipe length. Due to overlapping, extended masts will be shorter. This Mast extends to 43 Feet in actual height that ships to Commercial and Residential addresses alike. Estimated Usable Extended Height is around 43 Feet.
Mast Section Dimensions are:(1) 10'0"" length x 1.25"" O.D. (16 AWG)
(2) 9'10"" length x 1.50"" O.D. (18 AWG)
(3) 9'04"" length x 1.75"" O.D. (18 AWG)
(4) 8'10"" length x 2.00"" O.D. (18 AWG)
(5) 8'04"" length x 2.25"" O.D. (18 AWG)
Specifications Rohn H50
|Manufacturer's Part Number||H50|
|Part Type||Telescoping Masts|
|Mast Maximum Height||43.90 ft|
|Mast Bottom Outside Diameter||2.250 in|
|Mast Top Outside Diameter||1.250 in|
|Mast Section Count||5|
