Rohn RSL Tower 60ft - Section 4-9

US$‎3,903.20 US$‎4,592.00
  • SKU: RSL60L49
  • Manufacturer: Rohn
  • Data Sheet: Download
  • User Guide: Download
  • Availability: Direct Ship Item Item Ships direct form Manufacturer, Lead times vary. Please call for exact lead time. Email me when this product is in stock!
US$‎3,903.20 US$‎4,592.00

(click to select)

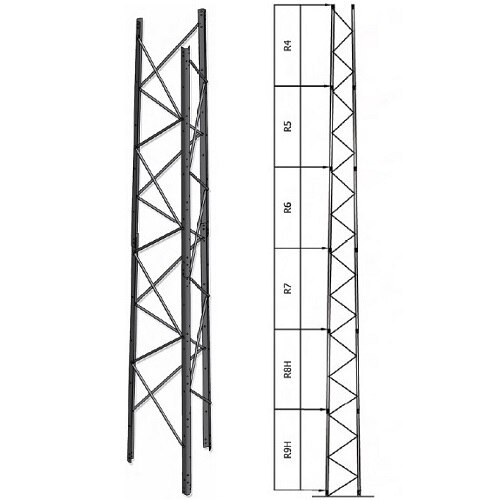

Rohn RSL60L49 RSL Tower 60ft - Section 4 - 9

The Rohn RSL60L49 is a RSL 60' Light Weight Self-Support Tubular Brace Tower Kit, U-Shaped High Strength Angle Legs, Hot-Dipped Galvanized, is designed for use in Wireless Broadband, public Safety & Security applications .The RSL is shipped knocked down to reduce shipping cost and time.

CLASS I Structure / Exposure Cat B / Topo Cat 1

CLASS II Structure / Exposure Cat C / Topo Cat 1 / Wind -w- Ice 40 MPH @ 1" / Earthquake Ss 2.50


This Kit Includes:

  • Sections- 4-9
  • Top Kit- RSLH4A
  • Bolt Kits- 6
  • RSB09 Short Base ( Optional )
  • RAL09 Anchor Base Kit ( Optional)
  • ACWS
  • ASSEMBLY PACKAGE

Features:

  • 60’ Height
  • Handles up to 80 sq. ft.
  • Constructed of hot-dip galvanized steel
  • Available in heights from 20’ up to 100’
  • U-shaped legs allows for simple lap splice connection
  • Available in standard and heavy models
  • Pre-punched holes for attachment of safety climb
  • systems, mounting kits, etc.
  • Braces for each section are the same length, while
  • bolt lengths are standard throughout the tower
  • Tower material is hot-dip galvanized
  • Assembly drawings provided with tower
  • Top closing Tube standard with each tower package

Specifications Rohn RSL60L49

BrandROHN
SeriesRSL Series
SupportSelf-Supporting Tower
Leg TypeTubular
3 Second Wind Gust with 1" Ice and Max Antenna SF90 MPH
Height60 FT
Max Antenna SF with 1" IceUp to 39 SF Antenna
Tower TypeHeavy Tower
