Rohn Wall Mount Double 18"

US$‎82.28 US$‎96.80
  • SKU: WM18D
  • Manufacturer: Rohn
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: 1 In Stock    (updated live)
    1 In stock at College Station
US$‎82.28 US$‎96.80

Rohn WM18D Wall Mount Double 18"

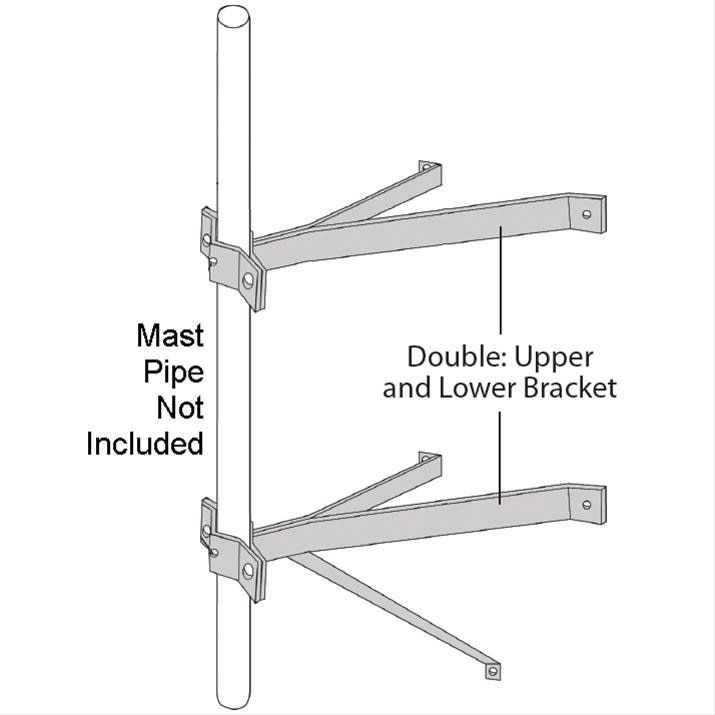

The Rohn 18" clearance wall mount. Heavy duty, galvanized steel. Will support up to 2-3/4" OD mast. Upper and lower brackets supplied. Bolts directly to 24" stud spacing. Includes assembly hardware but not mounting hardware. Order up to 5/16" mounting hardware separately.

Features:

  • Galvanized Finish
  • 14 Gauge Steel
  • 18 inch Clearance
  • Adjustable from 1.25 to 2.75 inch DIA
  • Anti-Twist Set Screw
  • Lag Bolt Hardware not included
  • Wall Mount for: ROHN H20, H30, H40, H50 Channel Master 1820, 1830, 1840, 1850

Specifications Rohn WM18D

BrandROHN
Manufacturer's Part NumberWM18D
Part TypeMast Wall Brackets
Wall Clearance18.000 in
Standoff Distance18 in
wall mounting hole pattern Center to Center
mounting hardware (4) ¼” x 2” Long Lag Screws + Anti Twist Set Screw
minimum pipe size 0.875" OD (7/8" OD) round mast
maximum pipe size 2.50" (2 1/2") OD round mast
qty Set of 2 brackets includes Support Leg
