Rohn Wall Mount Double 8"

US$‎78.54 US$‎92.40
  • SKU: WM8D
  • Manufacturer: Rohn
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: 12 In Stock    (updated live)
    12 In stock at College Station
US$‎78.54 US$‎92.40

Rohn WM8D Wall Mount Double 8"

The Rohn 8" clearance wall mount. Heavy duty, galvanized steel. Will support up to 2-1/4" OD mast. Upper and lower brackets supplied. Includes assembly hardware but not mounting hardware. Order up to 5/16" mounting hardware separately.

The ROHN Mast Wall Mounts can be used on masonry, wood, metal, and other types of walls using up to 1/4 in. diameter lag screws or bolts. These mounts employ rugged steel brackets for extra support and rigidity.


Features:

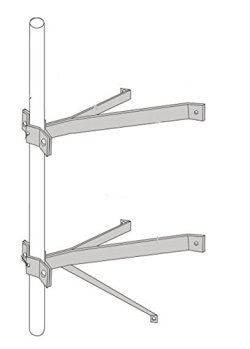

  • Heavy Duty Double 'Y' Style Brackets. 2 Brackets Included As Shown.
  • Galvanized Finish
  • 14 Gauge Steel
  • 8 inch Clearance

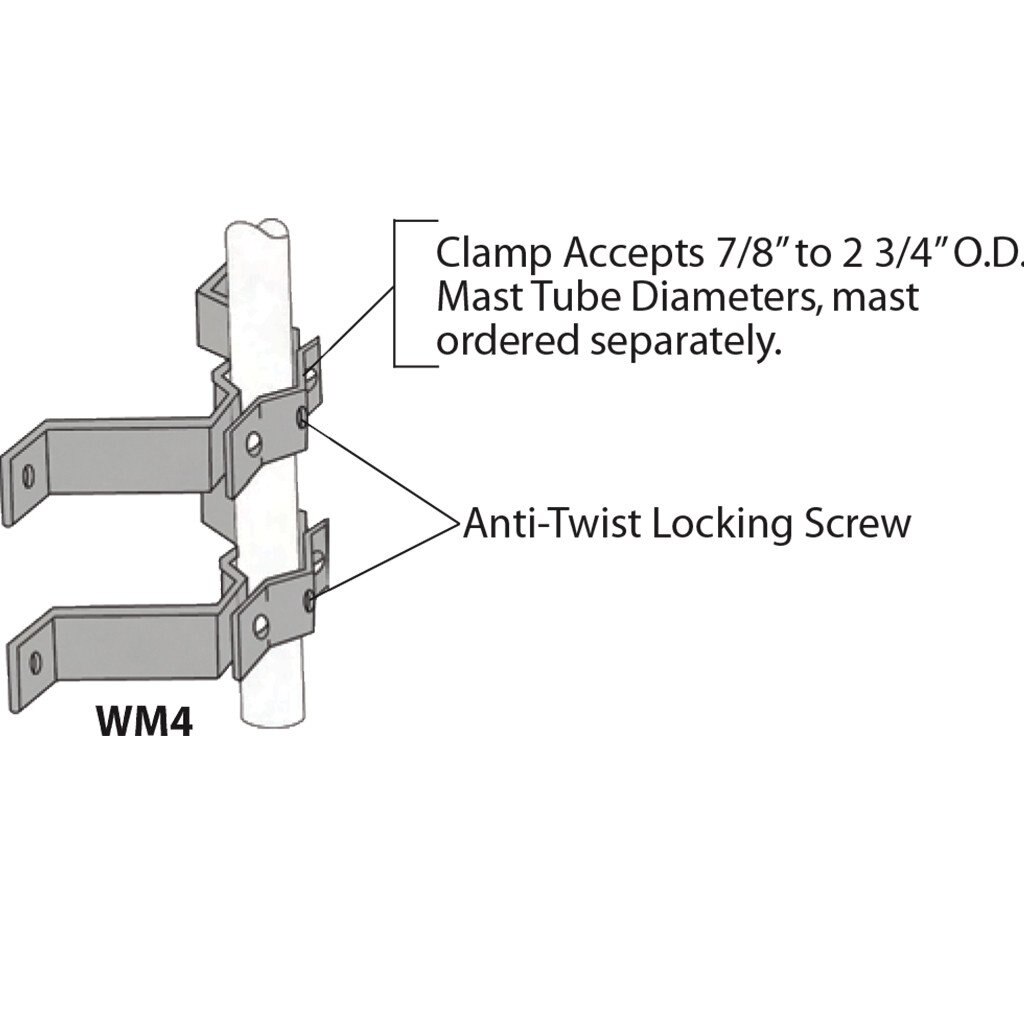

  • Adjustable from 1.25 to 2.75 inch DIA
  • Anti-Twist Set Screw
  • Lag Bolt Hardware not included
  • Wall Mount for: ROHN H20, H30, H40, H50 and Channel Master 1620, 1630, 1640, 1650, 1820, 1830, 1840, 1850

Specifications Rohn WM8D

BrandROHN
Manufacturer's Part NumberWM8D
Part TypeMast Wall Brackets
Wall Clearance8.000 in
Pipe size7/8" to 2-1/2" OD round mast
Standoff8"
Depth8"
Width1.5"
Height9.5"
qty Set of 2 brackets
