Shireen 1000ft, outdoor shielded & dry gel tape
- SKU: DC-1042
$242.00 $257.00
+ $23.99 Tariff
- Manufacturer: Shireen
- Data Sheet: Download
Product Information

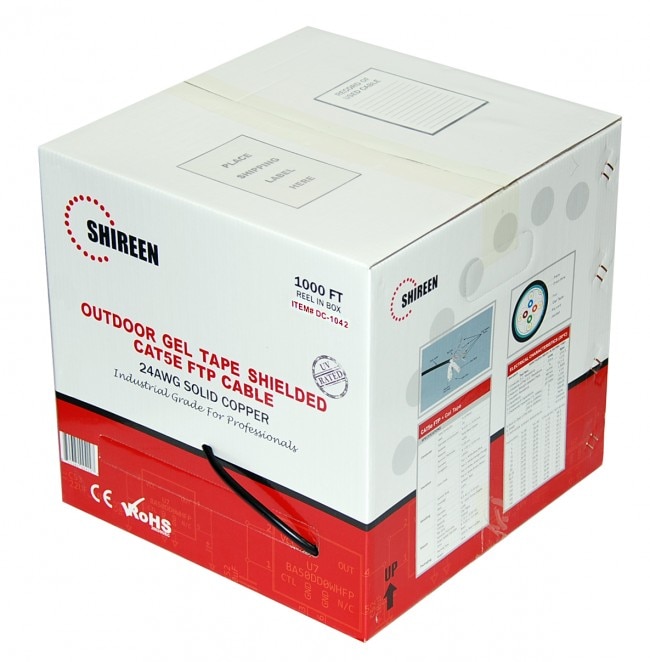

Shireen DC-1042 1000ft, outdoor shielded & dry gel tape
Shireen's item# DC-1042 is high quality outdoor shielded dry gel tape CAT5e cable. Features an outer jacket, 4 Twisted pairs of 24AWG wire with LDPE + Dry Gel Tape. Excellent or use in any outdoor/direct burial application of networking, data transfer and phone lines. It supports 10/100/1000Mbps.
- Dimensions (WxLxH): 13 x 13 x 13
- Weight: 29 Lb
Specifications
Specifications DC-1042
Conductor
| Pairs | 4 |
| Total Conductor | 8 |
| AWG | 24 |
| Dia. of Conductor | Φ 0.51±0.02mm |
| Material | Solid Bare Copper |
Insulation
| Material | HDPE |
| Nom. Thickness | 0.24mm |
| Dia. | Φ 0.95±0.05mm |
| Elongation | ≥300% |
Shielding
| Vertical Wrap | A1-Mylar Tape |
| Coverage % | 100% |
| AWG | 24 |
| Drain Wire | TC - Solid Tinned Copper |
Outer Sheath
| Filling | Gel Filled |
| Material | LDPE |
| Rip Cord | 200Dx3 |
| Nom. Thickness | 0.72±0.05mm |
| O.D. | Φ 6.50±0.3mm |
| Color | Black |
