Siklu EtherHaul-2500FX ODUwith ANT. port, Tx Low Power: POE&DC, 1G upgradable to 2G

(0)No Reviews yet
  • SKU: EH-2500FX-ODU-L-EXN
US$‎3,014.00
  • Manufacturer: Siklu
  • Data Sheet: Download

Out of Stock

Direct Ship Item

Product Information

Siklu EH-2500FX-ODU-L-EXN

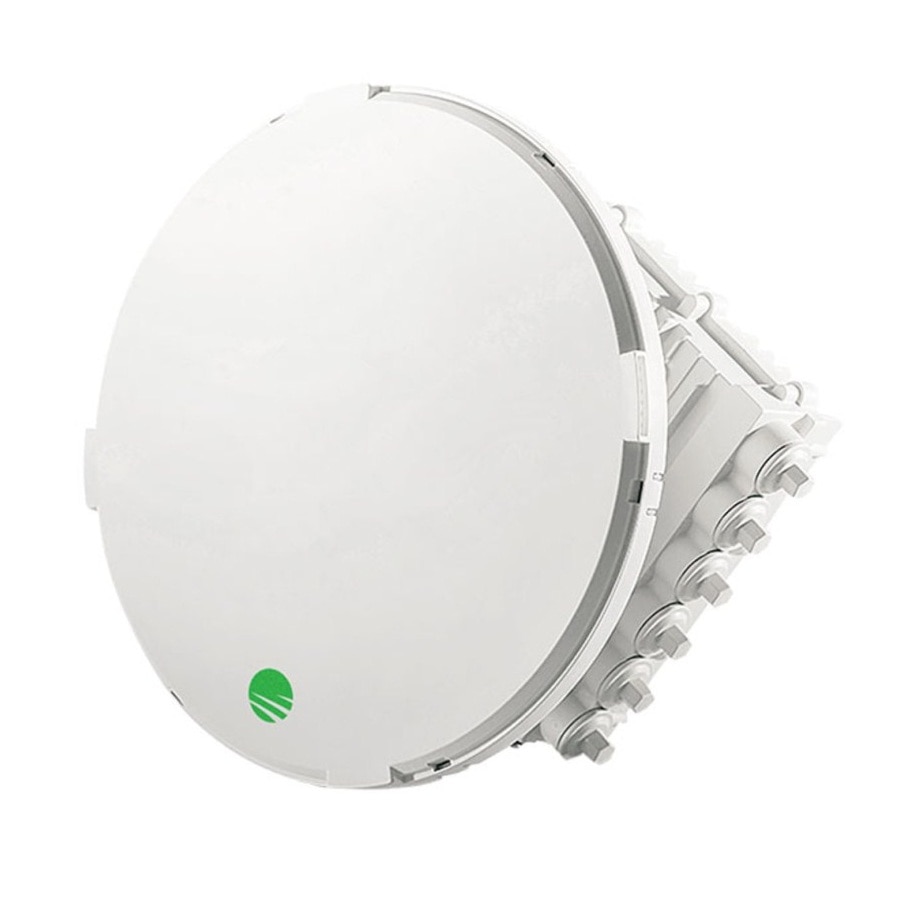

EtherHaul-2500FX E-Band 80GHz FDD ODU with Adapter for External Antenna, Tx Low transmitting at 71-76GHz. 1Gbps upgradable to 2Gbps, 4 GE ports: 2xCopper, 2xFiber

Design a Future-Proof Wireless Network

The EtherHaul-2500F radio delivers 2Gbps full duplex point-to-point wireless Ethernet connectivity to future-proof your network. With FDD radio operating over the interference-free 71-76/81-86GHz band, the EtherHaul-2500F makes it easy for providers and businesses to extend their networks and to add affordable, high capacity wireless links that are easy to install and maintain.

Fast Spectrum Acquisition at a Minimal Cost

The E-band spectrum is uncongested, in rural and dense urban areas. Use of a high-gain pencil- beam antenna, guarantees available spectrum anywhere and maximizes spectrum re-use. The EtherHaul-2500F maximizes throughput, reach and availability. Additionally, the E-band technology offers low licensing fees and prompt licensing processes at competitive prices.

Carrier Grade Performance Over Wireless

High throughput and low latency combine to deliver fiber-like performance. The EH-2500F incorporates QoS aware hitless adaptive bandwidth coding and modulation for high availability.

Build Up Resiliency and Availability

The EH-2500F has an integrated L2 switch, and the extra ports enabling deployment in ring, mesh or any high resiliency topology that is needed.

Small Size, Easy to Deploy & Manage

The all-outdoor radio has a tiny footprint that eases site acquisition. Its light-weight and small size contribute to a quick and easy installation. Easy to use web GUI manages local and remote units to enable fast commissioning and configuration.

Cost Reducing All-Silicon Technology

The EH-2500F radio is based on Siklu's advanced integrated-silicon technology, which increases reliability and reduces size and cost. The result is a very small, very light radio with more than an 80- year MTBF and an unbeatable price to throughput value.

Based on Field Proven Platform

The EH-2500F is the 2Gigabit, long-range evolution of the best- selling EtherHaul[tm] series. The EtherHaul[tm] is the world's top millimeter wave radio, thousands of units have been deployed and are performing reliably in varying weather conditions all over the globe.

Improves the Bottom Line

The EH-2500F provides fast return on Investment (ROI) and minimizes Total Cost of Ownership (TCO). The advanced 2Gigabit system, delivers unbeatable price per MB value together with a small and light form factor lowering installation costs, increasing reliability and reducing site visits. Ultra-fast activation time with the unbeatable reliability will become your ``winning card'' at any competitive environment.

Specifications

Specifications EH-2500FX-ODU-L-EXN

Frequency, Duplexing scheme 71-76 / 81-86GHz, FDD
Modulation BPSK1/BPSK2/QPSK/QAM16/QAM32
Max Tx power +19dBm
Adaptive rate Hitless adaptive bandwidth, coding and modulations
Throughput Up to 2000Mbps full-duplex
Channel & Bandwidth 1000Mbps@250MHz 2000Mbps@500/750/1250MHz
Traffic Interfaces 4x GE ports: 2xCopper RJ45 + 2 SFP’s
Antenna options1ft (31cm) Cassegrain reflector - 43dBi antenna gain, 0.9°
2ft (65cm) Cassegrain reflector - 50dBi antenna gain , 0.4°
Input power PoE+ (IEEE 802.3at); ±36+57VDC
Ethernet featuresIEEE 802.1d Transparent Bridging, IEEE 802.1ad provider bridge
Smart Ethernet pipes
QoS, traffic shaping and policing
Advanced L2 features Eth OAM (IEEE802.1ag/Y.1731/IEEE802.3ah) G.8032 ERPS delivering sub 50mSec ring protection
Synchronization 1588 TC
Synchronous Ethernet ITU-T G.8261/8262/8264
MEF compliant MEF services compliant
MEF 9,14 and 21 complaint
Management Web GUI (one click management of local & remote units) Embedded CLI, SNMPv2/3, in-band, out-of-band Zero touch turn-up, TACACS+, RADIUS
Environmental Operating Temperature: -45° ÷ +55°C (-49° ÷ +131°F) Ingress
Protection Rating IP67
Regulatory ETSI EN 302 217, FCC 47 CFR part 101:2009 , CE marked, EMC, safety UL60950
DimensionsODU only: (H x W x D) 24.5 cm x 22.5 cm x 7 cm (9.7” x 8.9” x 2”)
ODU + 1ft Antenna: (Dia. x Depth) 31 cm x 13 cm (12.2” x 4.3”)
ODU + 2ft antenna: (Dia. x Depth) 65 cm x 37 cm (25.6” x 15.35”)
Weight ODU + 1ft antenna: 4.5 kg; ODU + 2ft antenna: 9.4 Kg
