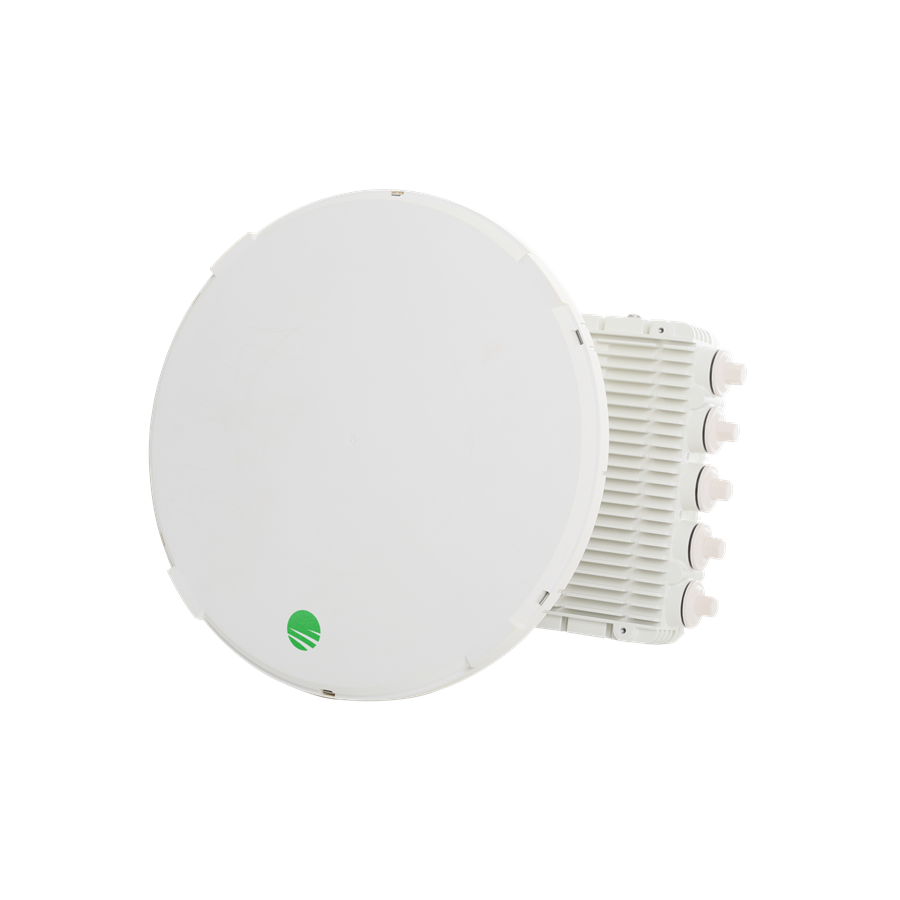

Siklu EtherHaul-8010FX ODU AES with ANT. port, TX High 10Gbps max capacity with upgrade
- SKU: EH-8010FX-ODUH-A-2C1P-EX-D
- Manufacturer: Siklu
Product Information
The EH-8010FX operates over the interference-free 71-76/81-86GHz E-Band spectrum, with a total of 10GHz of bandwidth for use worldwide. Using a high-gain pencil-beam antenna helps ensure that the spectrum is available everywhere and maximizes spectrum reuse. Additionally, E-band systems are governed by low licensing fees and quick licensing processes.
The EH-8010FX radio delivers up to 10Gbps full-duplex point-to-point wireless Ethernet connectivity with the most extended mmWave reach, thanks to the highest system gain in the market. This advantage can be extended to several miles with the ExtendMM feature. Incorporating dozens of Siklu innovations, the EH-8010FX is based on the same platform that has been deployed in tens of thousands of links from the EtherHaul family.
Innovative all-HW bridging and AES encryption ensure high throughput and low latency at any traffic load level or packet size, maintaining high performance and eliminating bottlenecks for all services in the network backbone.
Product Applications
• Fiber Network Extension / Backup
• Enterprise Multi-Gigabit Connectivity
• Metro and Aggregation Networks
• Multi-Dwelling Unit Gigabit Broadband
Specifications
Specifications EH-8010FX-ODUH-A-2C1P-EX-D
| Broadband Frequency Band | 80GHz |
| Interface | (SMF or MMF+ (SFP or) copper, 45-RJ (3bz.802: port 10GE combo 1 |
| Manufacturer | Siklu North America |
| Broadband Antenna Type | Connectorized |
| Qty/ Uom | 1 Each |
| Description | EtherHaul-8010FX ODU with ANT. port, TX High; Power: DC/PoE; Capacity 10Gbps; ports: 1x dual-media RJ-45/SFP+ (1x RJ-45 for management/traffic). |
| Frequency Range | 71-76 GHz, 81-86 MHz |
| Security/Encryption | AES-128 |
| Data Rate | 2Gbit/s |
| Maximum Data Rate | 10Gbit/s |
| Temperature Range | -33-55 deg C |
