TP-Link BE9700 Tri-Band Wi-Fi 7 Router
- SKU: Archer BE550 Pro
Product Information
TP-Link Archer BE550 Pro
BE9700 Tri-Band Wi-Fi 7 Router
WiFi 7 — WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.
9.7 Gbps Tri-Band WiFi
Wi-Fi 7 unleashes the full potential of 4K-QAM and the 6 GHz band with up to 320 MHz channels, delivering unprecedented Wi-Fi speeds up to 9.7 Gbps. The new 6 GHz band provides exceptional bandwidth congetion-free channels.†◇
Boosted Throughput, Unmatched Reliability
Multi-Link Operation (MLO) enables Archer BE550 Pro to transmit data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors.6
10 Gbps Port for Multi-Gigabit Connectivity

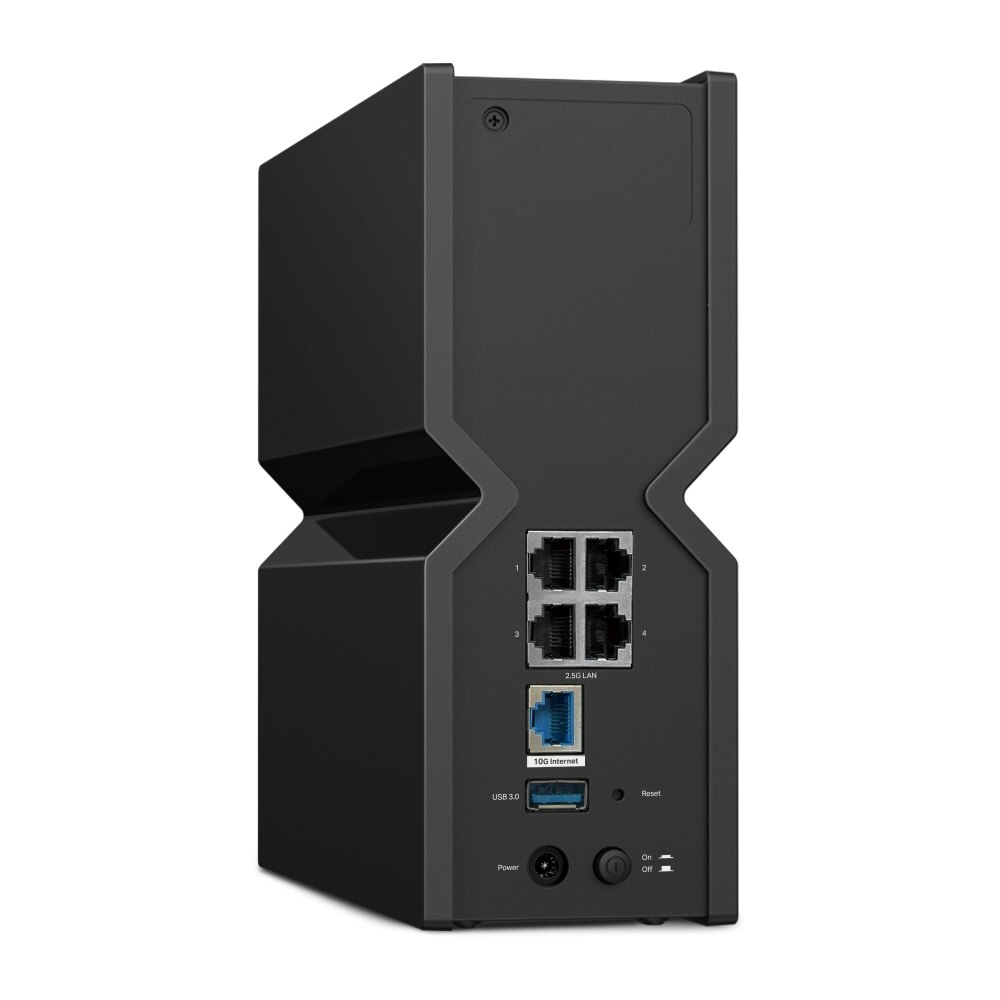

Supports multi-gig internet service plans up to 10 Gbps Equipped with one 10 Gbps WAN port, four 2.5 Gbps LAN ports, and one USB 3.0 port, Archer Archer BE550 Pro provides super-fast connections and data transfers, driving your devices to peak performance.§
6 High Performance Antennas with Beamforming, for Broader Coverage
6× Internal Antennas: Proprietary WiFi optimization and 6× optimally positioned antennas boost WiFi signals throughout your home.
Beamforming Technology: Detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Create Whole Home Mesh WiFi
Archer BE550 Pro is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.***
Set Up in Minutes
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
HomeShield Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.*
- Home Network Scanner: Real-time network scanner to detect potential threats and security issues.
- Parental Controls: Manage time online and block inappropriate content to keep your family safe online.
- Quality of Service: Assign your favorite devices to have the fastest connections for top performance.
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE550 Pro can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Features:
- Blazing-Fast 9.7 Gbps Tri-Band Wi-Fi: Wi-Fi 7 unleashes the full potential of the 6 GHz band with up to 320 MHz channels and 9.7 Gbps Wi-Fi speeds. Enjoy full access to 8K streaming and high-speed downloading.†◇
- Faster than Wi-Fi 6E: Multi-Link Operation (MLO) enables Archer BE550 Pro to transmit data with Wi-Fi 7 clients across the 6 GHz, 5 GHz and 2.4 GHz bands simultaneously, delivering faster Wi-Fi speeds than Wi-Fi 6/6E routers.‡◇
- 4× Latency with Minimal Buffering: Significantly lower latency than Wi-Fi 6/6E routers enables emerging applications like VR/AR, video conferencing, and online gaming to always run at top performance.△
- Higher Capacity for More Devices: Communicates with multiple devices and tri-band simultaneously. Combined with the powerful CPU, Wi-Fi 7 provides congestion-free signals to your laptop, TV, thermostat, and baby monitor.
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.***
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
Specifications
Specifications Archer BE550 Pro
WIRELESS | |
WiFi Speeds | BE9700 |
WiFi Range | 4 Bedroom Houses Beamforming High-Power FEM |
WiFi Capacity | High OFDMA Airtime Fairness DFS |
Working Modes | • Router Mode • Access Point Mode |
Advanced Functions | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
SECURITY | |
Network Security | • SPI Firewall • HomeShield Security |
Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
HARDWARE | |
Ethernet Ports | • 1× 10 Gbps WAN • 4× 2.5 Gbps LAN |
USB Support | 1× USB 3.0 • Supported Partition Formats: • Supported Functions: |
Buttons | • Power On/Off Button • Wi-Fi On/Off Button • LED Button • WPS Button • Reset Button |
Power | 12 V ⎓ 3.3 A |
SOFTWARE | |
Protocols | • IPv4 • IPv6 |
Service Kit | HomeShield |
EasyMesh | Compatible with EasyMesh |
Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
Quality of Service | QoS by Device |
Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
DHCP | • Address Reservation • DHCP Client List • Server |
DDNS | • TP-Link • NO-IP • DynDNS |
Management | • Tether App • Webpage |
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | CE, FCC, RoHS |
Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing |
Dimensions (W×D×H) | 3.0 × 9.1 × 8.0 in (76 × 231.7 × 203 mm) |
