TP-Link AX1800 Indoor/Outdoor WiFi 6 Access Point

(0)No Reviews yet
  • SKU: EAP610-Outdoor
  • Manufacturer: TP-Link
  • Data Sheet: Download
  • Installation Guide:Download
10 in stock
College Station
10 In stock

Product Information

TP-Link EAP610-Outdoor

AX1800 Indoor/Outdoor WiFi 6 Access Point

Dual-Band WiFi 6 Connectivity Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps, providing higher data rates on both 5 GHz and 2.4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks.

Long-Range Coverage

Professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments. The maximum range reaches up to 200 meters over 2.4 GHz band and 300 meters over 5 GHz band.

Connect Numerous Devices

OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas.

Seamless Integration into Omada SDN Platform

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming

Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

IP67 Weatherproof Enclosure for Outdoor Environments

EAP610-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.

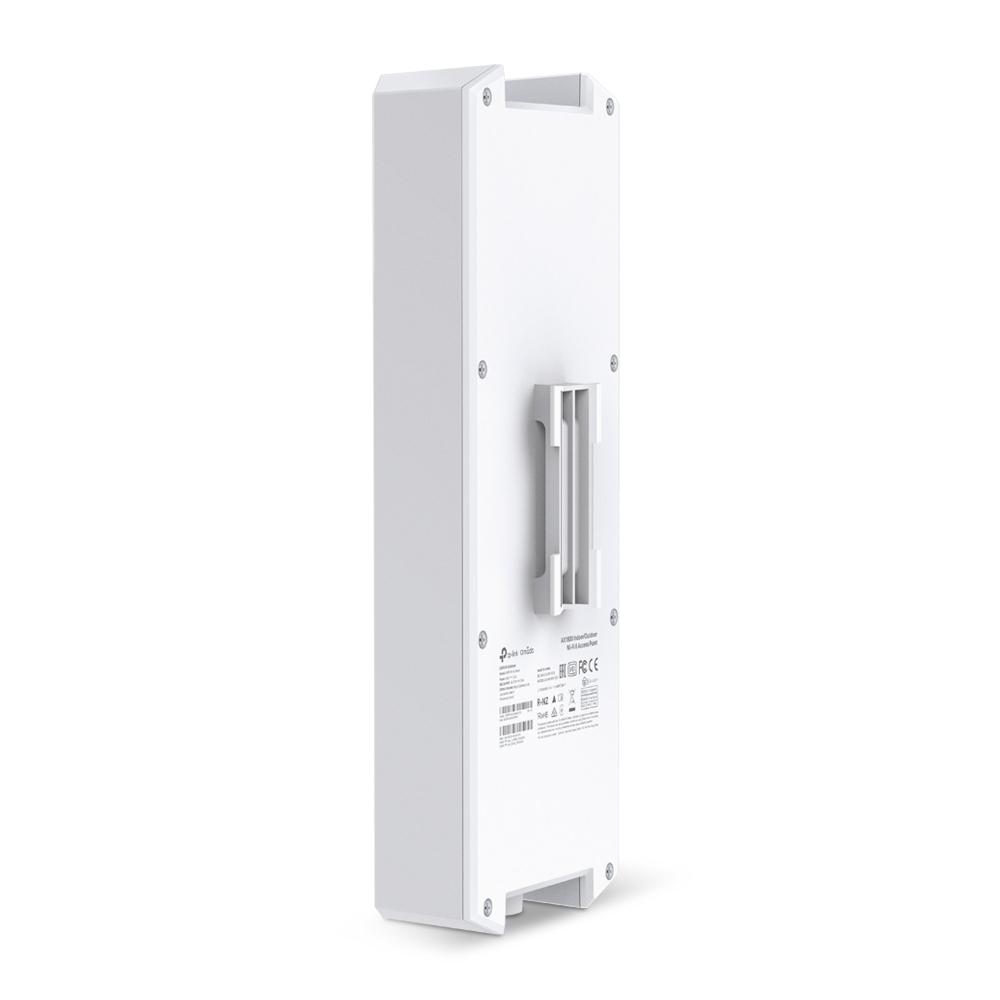

Versatile Mounting Solutions

Our mounting kits provide flexible installation, whether inside or outside.

Multiple PoE Options for Easy Installation

The AP supports both 802.3at PoE+ and Passive PoE power supply. It can be either powered by a PoE switch or the provided PoE adapter for convenient deployment.

Easy Management with the Omada App

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.



Features:

  • Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology†
  • Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
  • Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
  • Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment**
  • Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points**
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

Specifications

Specifications

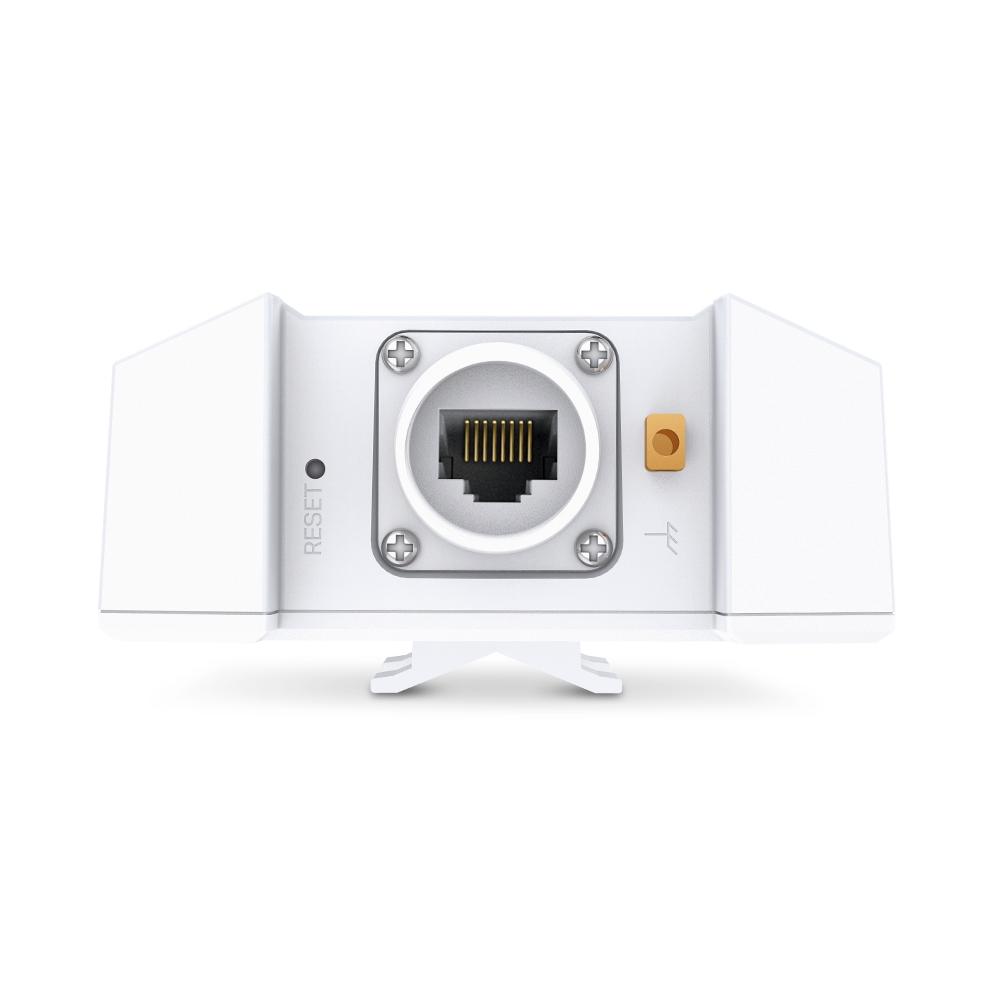

Interface1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
ButtonReset
Power Supply• 802.3at PoE • 48V/0.5A Passive PoE (PoE Adapter Included)
Power Consumption• EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H )


Weight
• 280.4×106.5×56.8 mm (without antenna & mounting kit)
11.03" x 4.19" x 2.23"

1.32 lbs
Antenna• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Weatherproof EnclosureIP67
MountingPole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz, 5 GHz
Signal Rate
• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power
• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Wireless Functions1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• Omada Mesh**
• Seamless Roaming**
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security• Captive Portal Authentication**
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada AppYes
Centralized Management
Cloud Access• Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Email AlertsYes
Management MAC Access ControlYes
SNMPv1, v2c
System Logging Local/Remote SyslogYes
SSHYes
Web-based ManagementYes
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0).
OTHERS
CertificationCE, FCC, RoHS
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
• Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
