TP-Link BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- SKU: EAP772
Product Information
TP-Link EAP772
BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

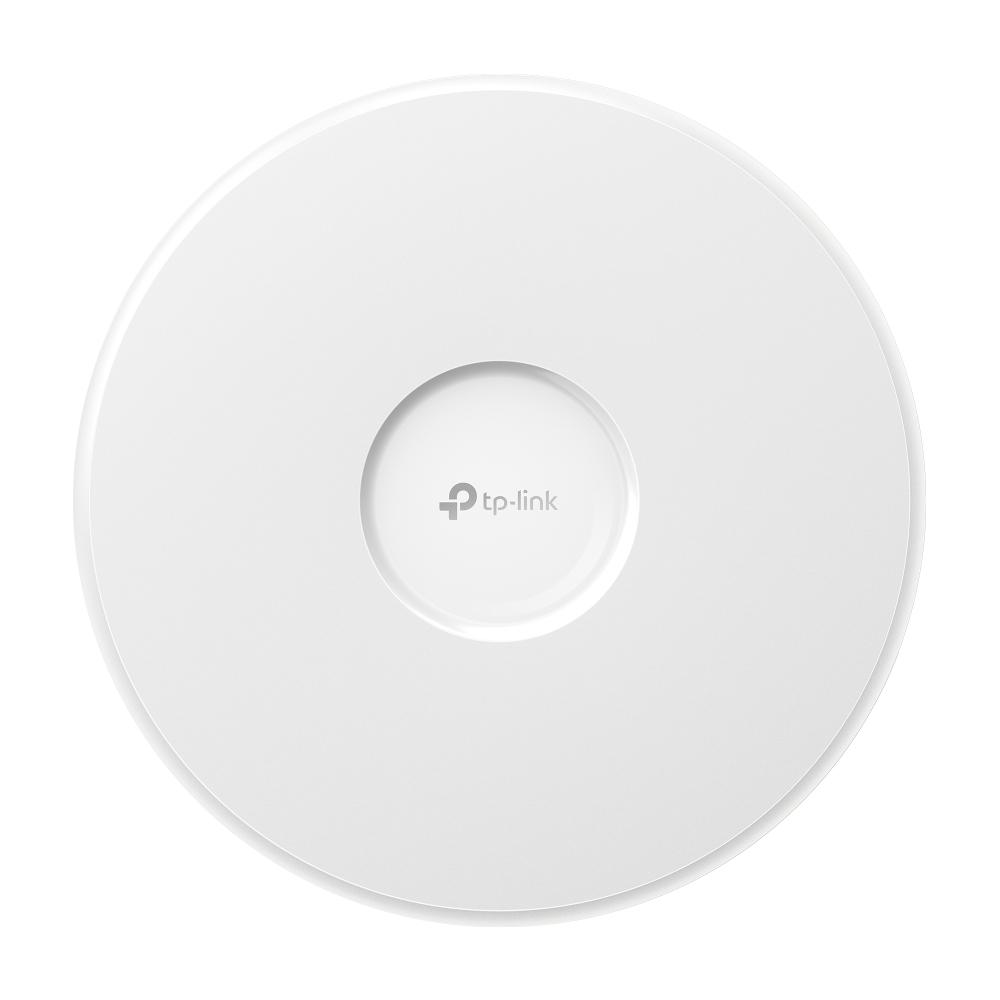

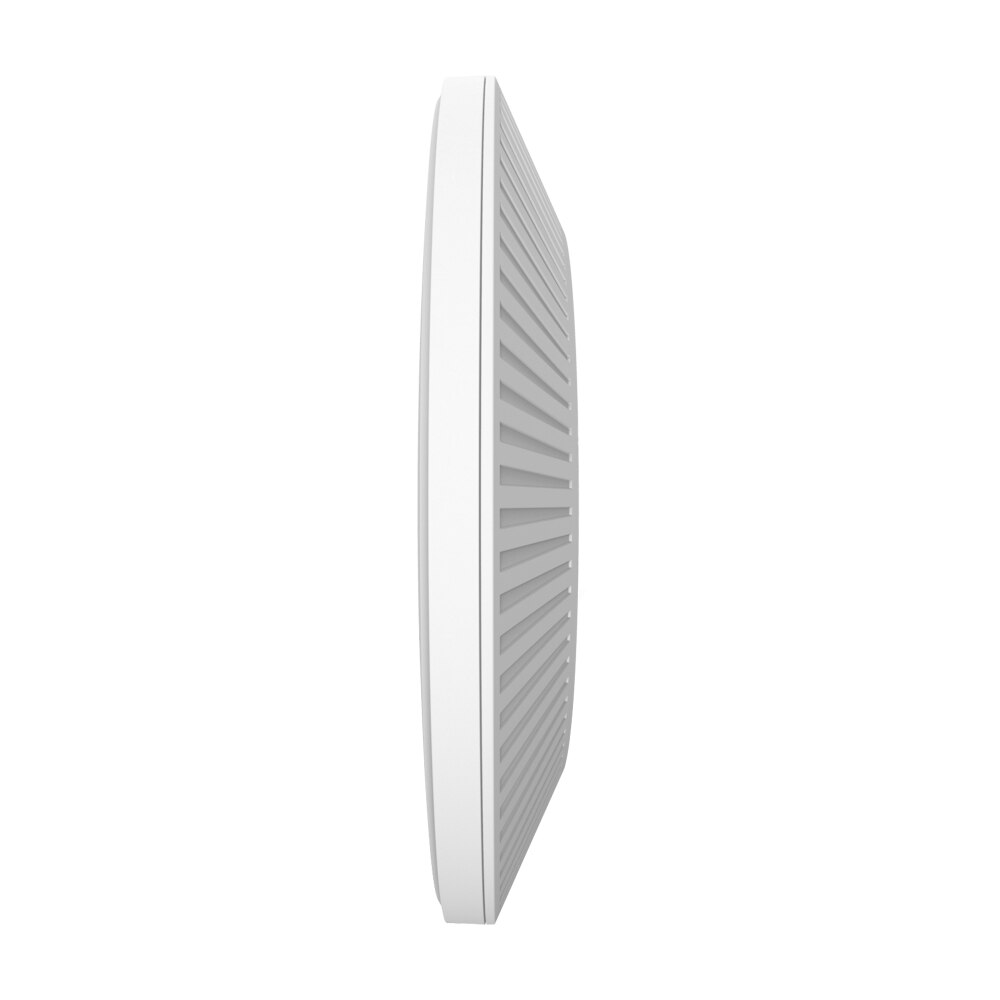

Ultra-Thin Design for Flexible Deployment

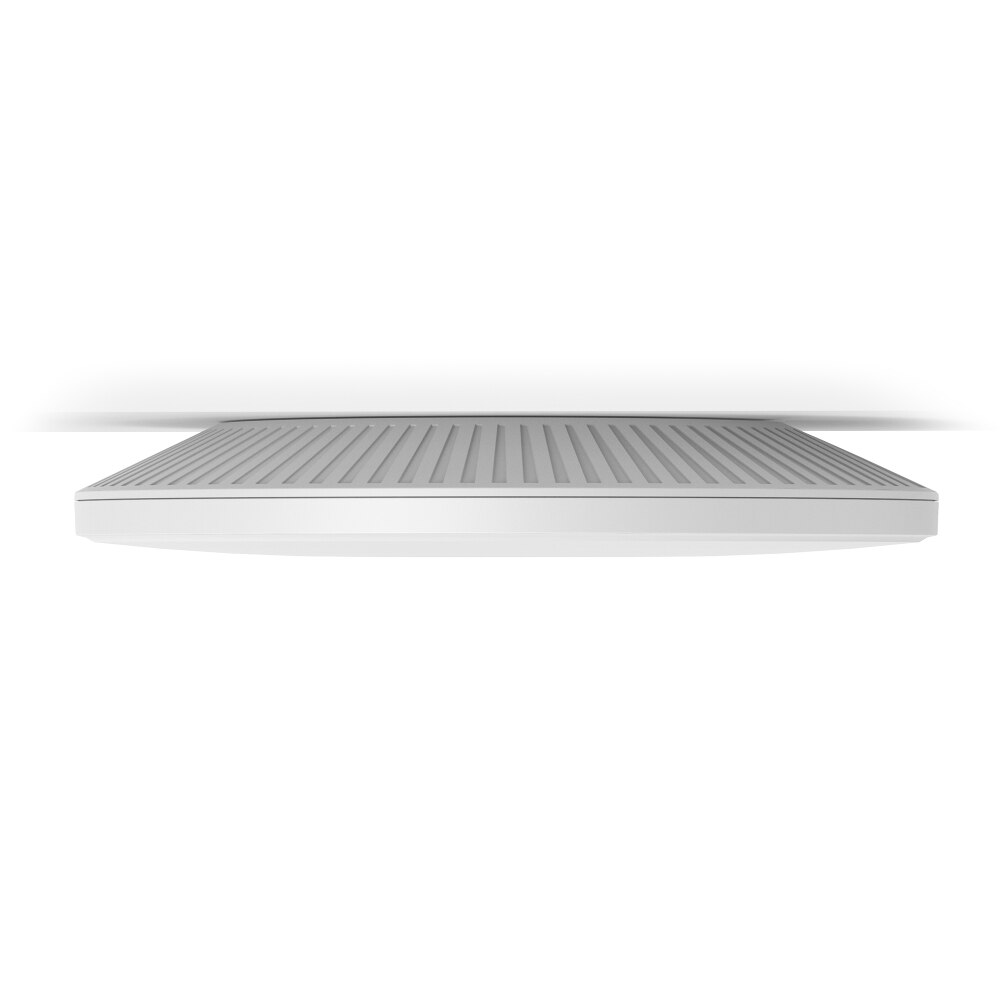

The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
MLO for Lower Latency
*STR-MLMR MLO Mode (Simultaneous Transmit and Receive Multi-Link Multi-Radio Operation Mode) **E-MLSR MLO Mode (Enhanced Multi-Link Single Radio Operation Mode)
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features.
The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
Omada Mesh, AI Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
Features:
- BE11000 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 4320 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).†
- A clear 6 GHz band brings cleaner and wider band resources.‡
- 1× 2.5G Port unlocks the full potential of Wi-Fi 7.
- 320 MHz bandwidth enables many more simultaneous transmissions.‡
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡
- Advanced Functions: Centralized management, mesh, and AI roaming.△
Specifications
Specifications EAP772
| HARDWARE FEATURES | |
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Power Consumption | • 25.44 W (For PoE); • 22.57 W (For DC) |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) Weight: 1.62 lb |
| Antenna Type | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 |

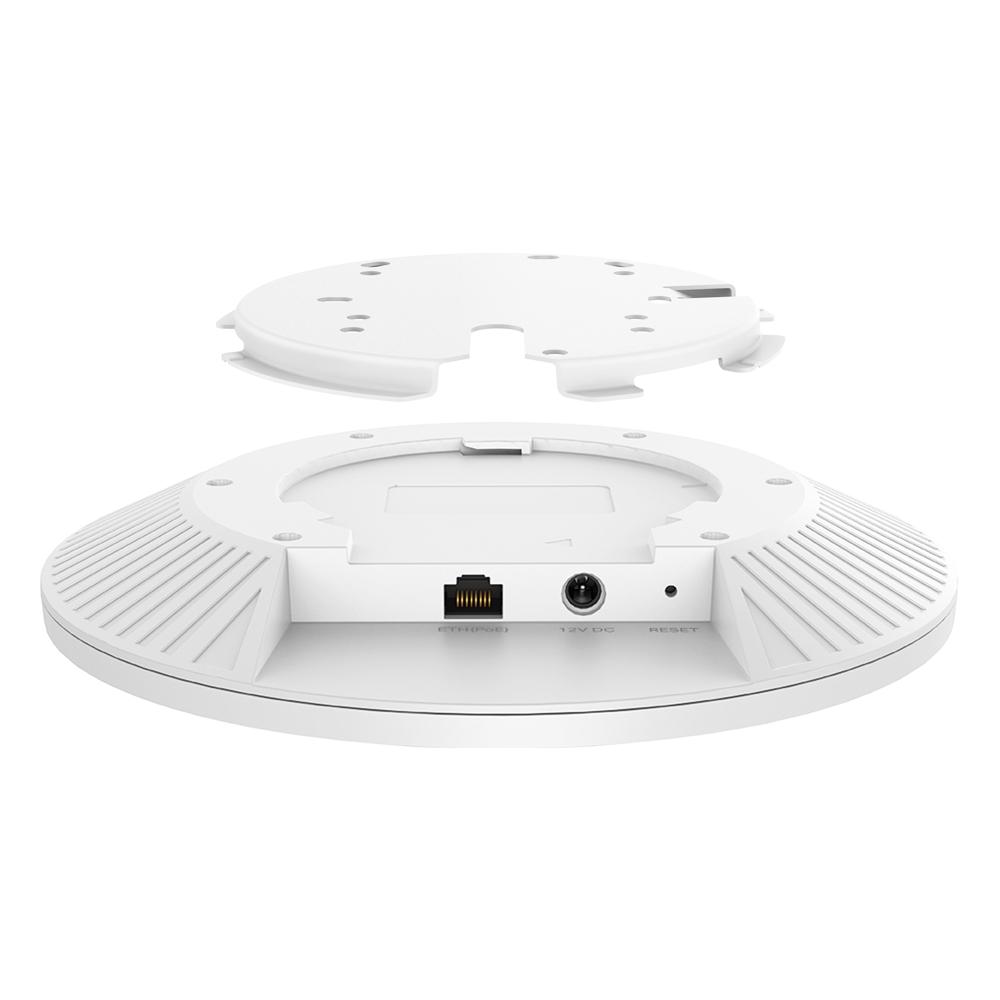

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
| Wireless Client Capacity | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)† |
| Wireless Functions | • MLO‡ • 4K-QAM‡ • Seamless Roaming(802.11k/v/r) • MU-MIMO‡ • EHT320‡ • Mesh△ • BSS Coloring‡ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 25dBm （2.4GHz） |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| Certification | CE, FCC, RoHS, IC |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
