TP-Link AX1500 Wi-Fi 6 Range Extender

(0)No Reviews yet
4 in stock
College Station
4 In stock

Product Information

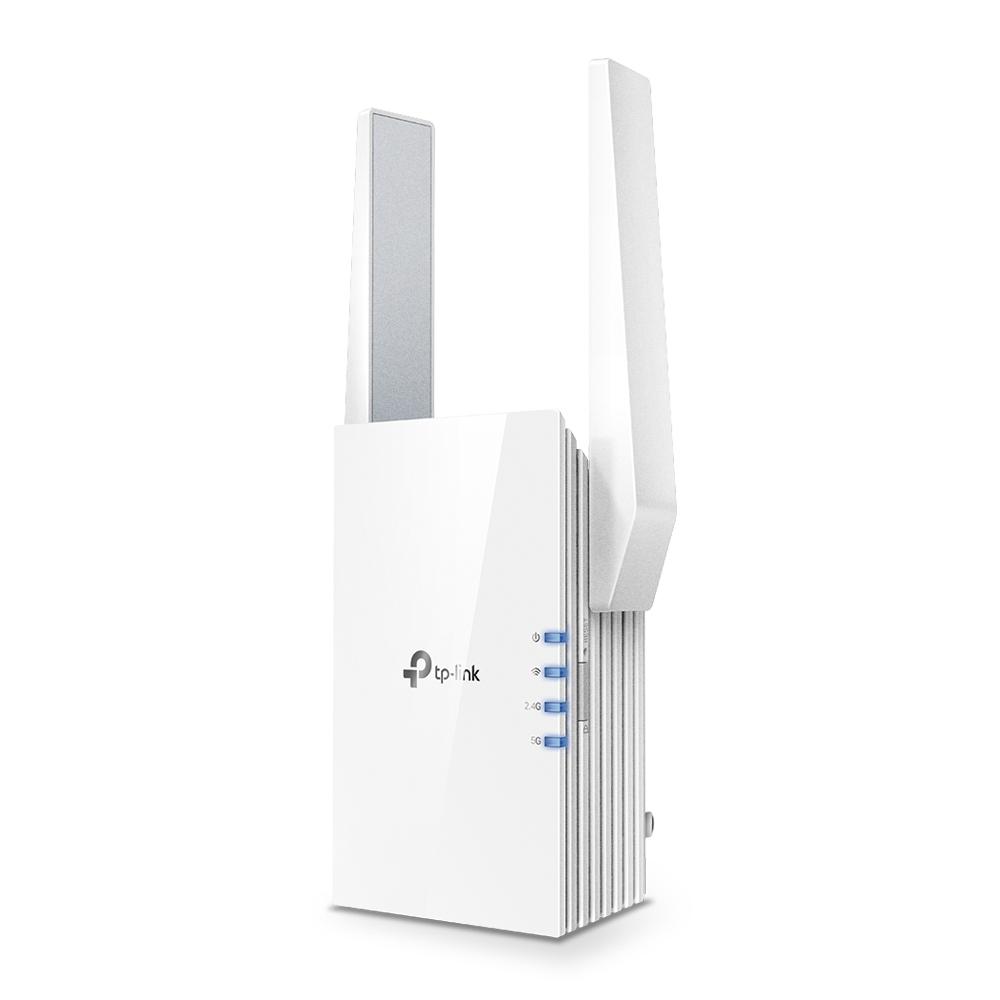

TP-Link RE505X

AX1500 Wi-Fi 6 Range Extender

The latest WiFi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network connections.

Fill Every Inch of Your Home with Wi-Fi 6

The RE505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge-watch your favorite show anywhere.

Adaptive Path Selection

Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.

High-Speed Mode

Use both WiFi bands to enjoy super-fast connections —ideal for HD streaming and gaming.

Built-In Access Point Mode

RE505X is more than just a wireless range extender.

Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual-band wireless signal.

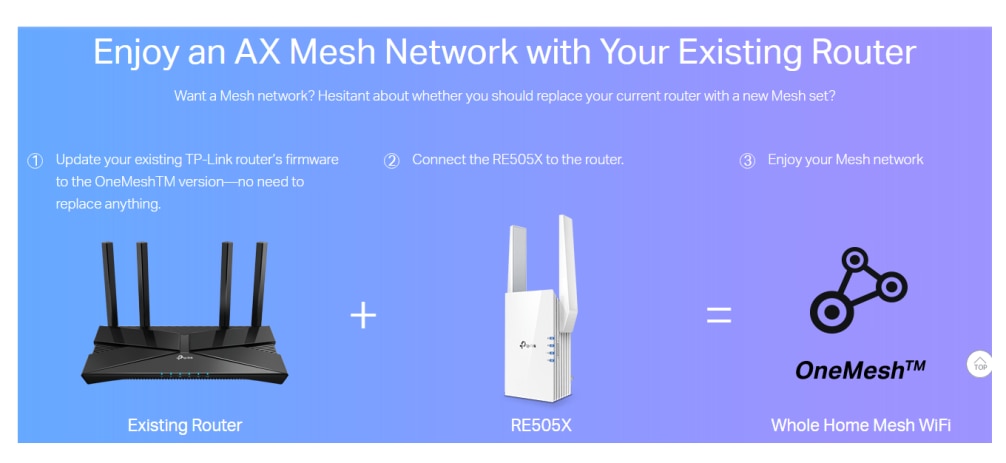

TP-Link OneMesh TM

OneMeshTM is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect an OneMeshTM range extender to an OneMeshTM router so you can stop searching around for a stable connection.

  • Smart Roaming Uninterrupted streaming when moving around your home
  • One WiFi Name No more switching WiFi network names
  • Easy Creation OneMeshTM Router and OneMeshTM Range Extenders pair instantly

Unified Management

Manage the entire network all from the TP-Link Tether app

Control at Your Fingertips

Set up and manage your WiFi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.


Features:

  • Extend WiFi Coverage: Eliminate WiFi dead zones by expanding high-performance WiFi using specially designed high-gain antennas.
  • Wi-Fi 6 Speeds: Enjoy smoother and more reliable streaming, gaming, downloading, and more with dual-band WiFi speeds up to 1.5 Gbps.
  • Connect More Devices to Your Network: Connect more devices that are out of range from your main router while eliminating poor performance.
  • Gigabit Ethernet Port: Experience wired speed and reliability anywhere in your home with the gigabit ethernet port.
  • OneMeshTM Technology: Create a mesh network using compatible routers, like Archer A7, and range extenders so you never switch networks or lose signal.
  • Set Up in Minutes: Easily set up and manage your WiFi in a few quick and easy steps using the intelligent signal indicator and TP-Link Tether app (Android, iOS).
  • Universal Compatibility: Compatible with all WiFi-enabled devices and routers or access points. It even supports new AX phones, laptops and other devices.

Specifications

Specifications RE505X

HARDWARE FEATURES
Ports1 Gigabit Ethernet Port
ButtonWPS Button, Reset Button
Power Consumption10W
Dimensions ( W x D x H )2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Antenna2 External Antennas
WIRELESS FEATURES
Wireless StandardsIEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency2.4GHz and 5GHz
Signal Rate300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Reception Sensitivity5GHz:

11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm

2.4GHz:

11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Transmit PowerCE: 2.4GHz ≤20dBm, 5GHz ≤30dBm
Wireless FunctionsEnable/Disable Wireless Radio, Wireless Statistics
Wireless Security64/128-bit WEP, WPA/WPA-PSK2 encryptions
OTHERS
Package ContentsWi-Fi Range Extender RE505X Quick Installation Guide
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
CertificationsFCC, RoHS
