TP-Link AX1800 Wi-Fi 6 Range Extender
- SKU: RE600X
- Manufacturer: TP-Link
- Installation Guide: Download
Product Information

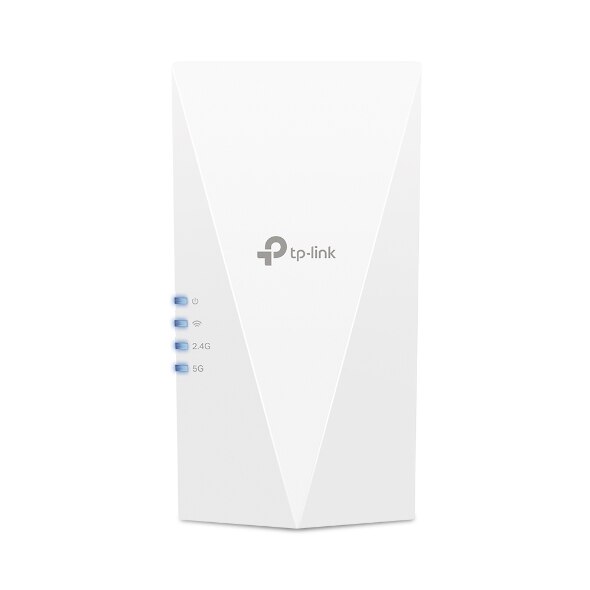

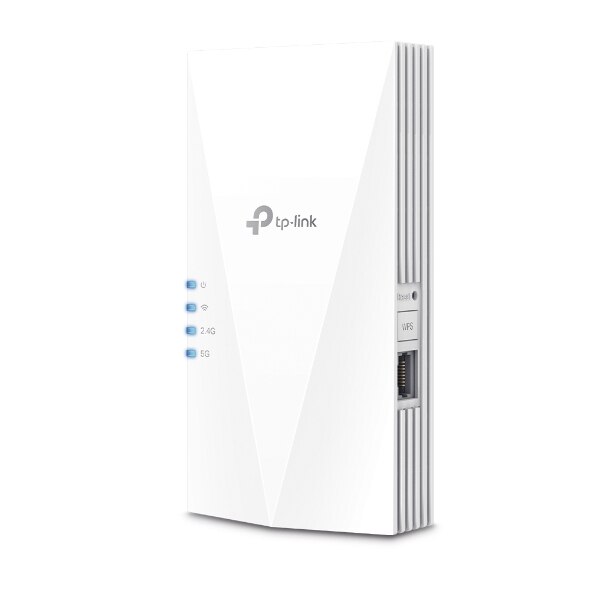

TP-Link RE600X
AX1800 Wi-Fi 6 Range Extender
Meet the next generation WiFi 6 with more capacity and data throughput
With WiFi 6, you will enjoy faster speeds, lower latency, and able to connect more devices. When comparing with the last-gen WiFi, WiFi 6 features 25% faster data throughput thanks to 1024-QAM.
TP-Link OneMesh™ Roaming Redefined
Stop searching around for full bars. OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect RE600X to an OneMesh™ router.3
Increased Efficiency with OFDMA5
OFDMA improves your wireless network with higher throughput, lower latency, and more efficient power consumption.
Boosted WiFi Coverage with Beamforming
Beamforming technology concentrates the WiFi signal towards your connected devices, providing better WiFi range and network performance.
Gigabit Ethernet for Reliable Connections
One Gigabit Ethernet port provides warp-speed wired connections for 4K HD streaming, lag-free gaming, and more.
Built-In Access Point Mode
RE600X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MIMO dual band wireless access point.
You can set the extender’s WiFi coverage depending on how large you want your WiFi area to be using the Tether app.
Control at Your Fingertips
Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.
Features:
- RE600X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Creates a Mesh network by connecting to a TP-Link OneMesh™ router for seamless whole-home coverage.
- Gigabit Ethernet Port – Provides faster-wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extends the range of any Wi-Fi router or wireless access point
Specifications
Specifications RE600X
| WIRELESS | |
| Working Modes | Range Extender, Access Point |
| HARDWARE FEATURES | |
| Interface | 1 Gigabit Ethernet Port |
| Button | WPS Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Max. Power Consumption | 10.8W |
| Dimensions ( W x D x H ) | 3.1×1.4×5.9 in. (78×36×149 mm) |
| Antenna | 2 Internal Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 574 Mbps at 2.4GHz, 1201 Mbps at 5GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5GHz: 11ax HE80 MCS0: -87dBm, 11ax HE80 MCS11: -56dBm 2.4GHz: 11ax HE40 MCS0: -92dBm, 11ax HE40 MCS11: -62dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security | WEP, WPA, WPA2, WPA3 |
| Transmission Power | CE: 2.4 GHz ≤20dBm, 5 GHz ≤30dBm |
| Mesh Technology | OneMesh |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Certifications | CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
