TP-Link AV1000 Gigabit Powerline Starter Kit

  • SKU: TL-PA7017 KIT
  • Manufacturer: TP-Link
  • Data Sheet: Download
  • User Guide: Download
  • Quick Installation Guide: Download
  • Availability: Direct Ship item Item usually ships directly from the manufacturer Email me when this product is in stock!
US$‎49.99

Specifications TL-PA7017 KIT

HARDWARE FEATURES
Plug TypeUS
Standards and Protocols HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
InterfaceGigabit Ethernet Port
ButtonPair/Reset button
Power ConsumptionMaximum: 2.7W (220V/50Hz) Typical: 2.3W (220V/50Hz) Standby: 0.5W (220V/50Hz)
LED IndicatorPWR, PLC, ETH
Dimensions ( W x D x H )2.6*2.0*1.1 in (65*52*28.5mm)
Range300 Meters over electrical circuit
SOFTWARE FEATURES
Modulation TechnologyOFDM (PLC)
EncryptionPowerline Security: 128-bit AES
OTHERS
CertificationRoHS
Package ContentsPowerline Ethernet Adapter 6.5 ft. (2 m) Ethernet cable (RJ45) Quick Installation Guide
System Requirements Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux
EnvironmentOperating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

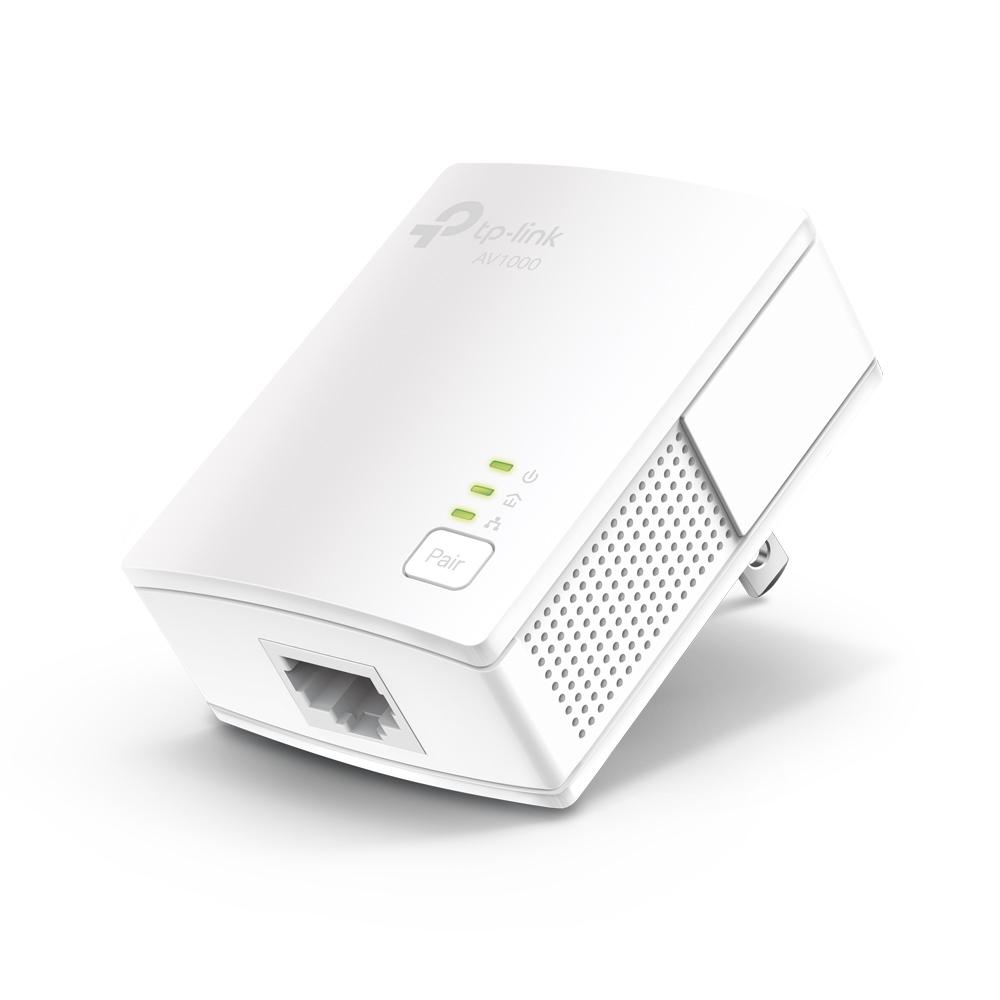

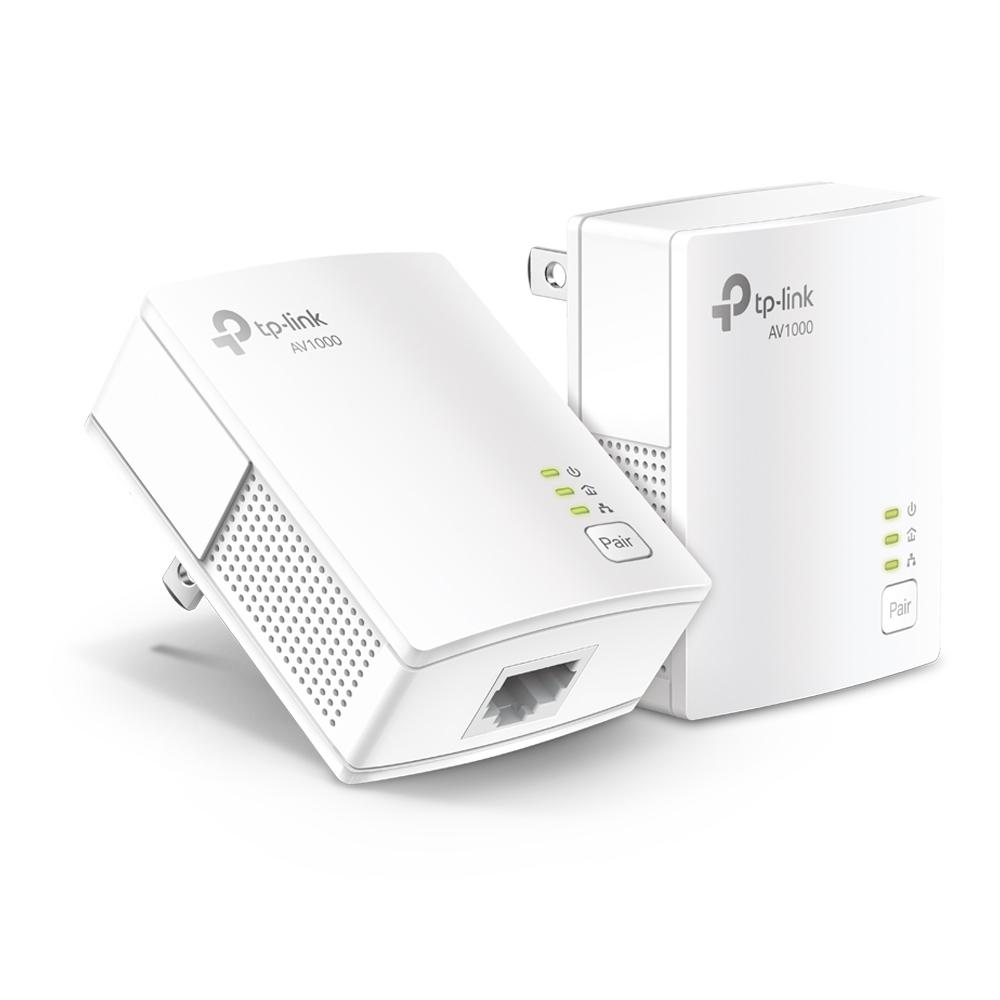

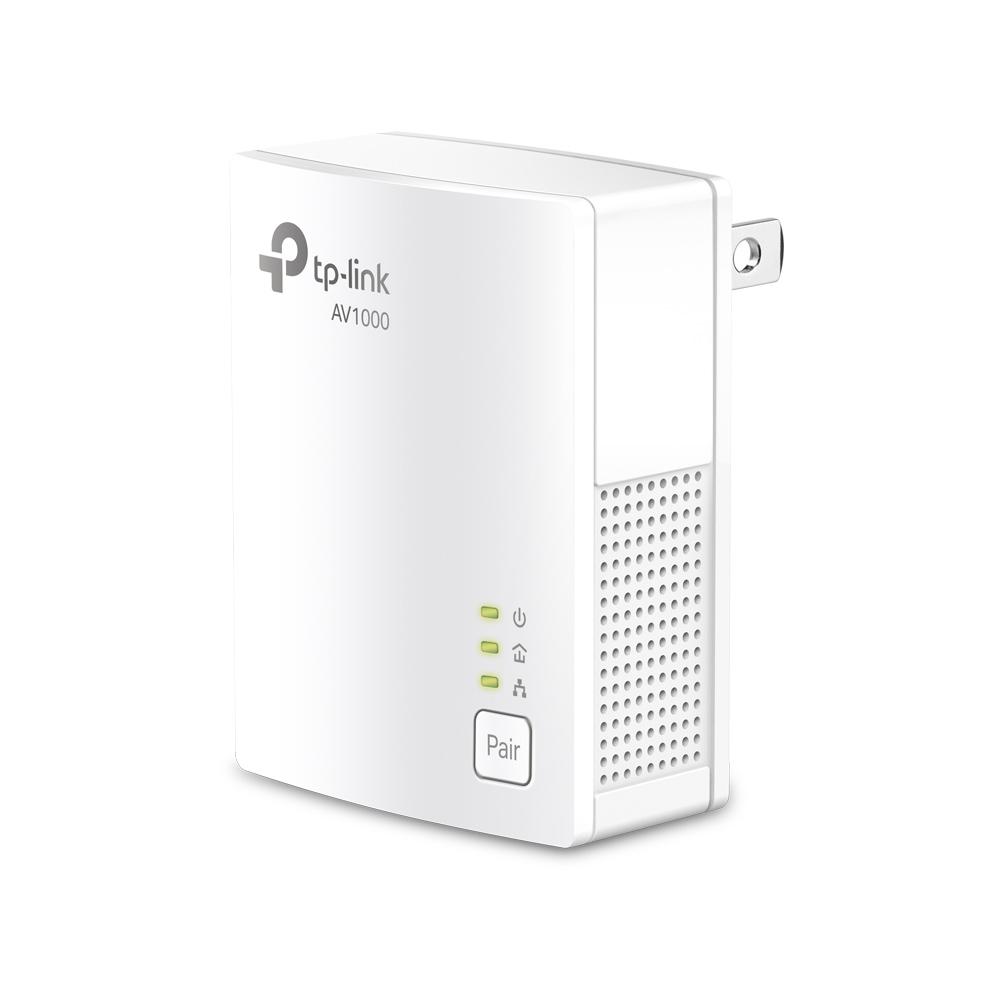

TP-Link TL-PA7017 KIT

AV1000 Gigabit Powerline Starter Kit

AV1000 Speeds and 300 Meter Range

Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures a stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

Gigabit Port for Maximum Connectivity

With a Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet with high speeds and ensure the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required

Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!

Reduce Power Consumption by Up to 85%

TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%*


Features:

  • High-Speed Powerline Adapter: HomePlug AV2 standard provides high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs anywhere in your home.
  • Gigabit Port: The gigabit port takes full advantage of your internet and provides a secure wired network you’re your desktop, smart TV or gaming console.
  • Ultimate Reliability: Connect your favorite device or console with a gigabit Ethernet cord for more reliable performance at higher speeds.
  • Plug. Pair. Play. : Set up your powerline in minutes, so you have more time enjoying a fast and reliable wired connection.
  • Power - Saving Mode: Automatic power-saving mode reduces power consumption by 85% when a device is not in use.
  • Modern Design: The sleek and modern powerline unit is small enough to fit in the palm of your hand and uses high-quality components.
  • Universally Compatible: Connect your powerline kit to any router, access point, or Ethernet switch to extend your network.
