Product Information
TP-Link XGB430v Pro
BE7200 Dual-Band Wi-Fi 7 XGS PON Router
This XGB430v Pro is a premium XGS-PON dual-band VoIP router based on the next-gen Wi-Fi 7 technology. It can deliver fastest Wi-Fi speeds to multiple devices all at once with less interference and congestion while being backwards compatible with Wi-Fi 6E/6/5/4 devices. It also equipped with a 10GE WAN/LAN port for direct Ethernet internet access and multiple multi-gig ports for fast and reliable wired connection. Perfect for FTTH deployment and a fully connected home.
Features:
- 7.2 Gbps Dual Band WiFi 7: 8-stream dual band WiFi enables gaming, streaming, and high-speed downloading on multiple devices—all at the same time.
- Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across two bands.
- Symmetrical 10G Connectivity: XGS-PON technology delivers up to 10 Gbps of upstream and downstream transmissions simultaneously.
- Versatile Internet Access: Supports direct fiber access, Ethernet connections via modem, and 3G/4G internet services through the USB port.
- Boosted Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
- More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
- EasyMesh-Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
- VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
- Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experiences.
- Easy Setup and Use: Simplifies network and WiFi control and management via the Aginet app.
- Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.
Specifications
Specifications XGB430v Pro
External Power Supply | 12V/2.5A |
Dimensions (W * D * H) | 7.44 × 2.76 × 8.58 in. (189 × 70 × 218 mm) |

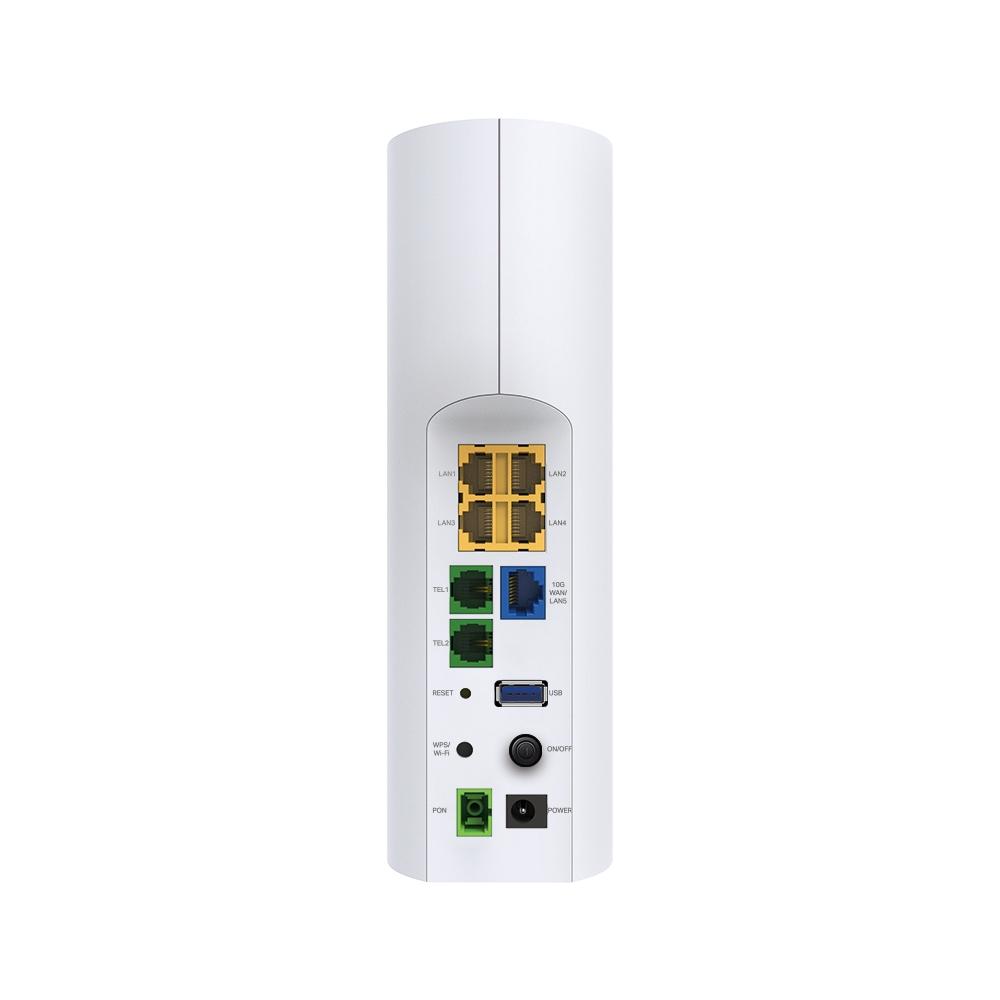

Interface | 1× XGS-PON Port 1× 10 GbE WAN/LAN Port 4× GbE LAN Ports 2× Phone Ports 1× USB 3.0 Port |
Button | WPS/Wi-Fi Button Reset Button Power On/Off Button |
Antenna | 4× Internal Dual-Band Antennas 1× Internal 5G Antenna 1× Internal DFS Dual-Band Antenna |
Data Rates | Downstream Speeds: 9.953 Gbps (XGS-PON) Upstream Speeds: 9.953 Gbps (XGS-PON)‡ |
WIRELESS FEATURES | |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | BE7200 5 GHz: Up to 5760 Mbps (EHT160) 2.4 GHz: Up to 1376 Mbps (EHT40)* |
Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
Wireless Security | WPA/WPA2/WPA3 Encryptions |
Wireless Standards | IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/g/b 2.4 GHz |
Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) |
Multi-SSID | 2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID |
Wireless Schedule | Support 2.4 GHz and 5 GHz Wireless Schedule |
Mesh Technology | EasyMesh Compatible, and support 802.11k/v/r |
SOFTWARE FEATURES | |
DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
Quality of Service | Hardware QoS, Flow Classification |
Dynamic DNS | DynDns, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
Management Features | Local management: WebGUI, Aginet app (for end users) Remote management: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 for service providers Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
Security | NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death" |
Advanced Features | Multi-Link Operation (MLO), Zero-Wait DFS, 4K-QAM, Multi-RU, OFDMA, Beamforming, BSS Color Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3 Parental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic |
Protocols | IPv4, IPv6 |
VPN Server | PPTP VPN, IPSec VPN , OpenVPN |
