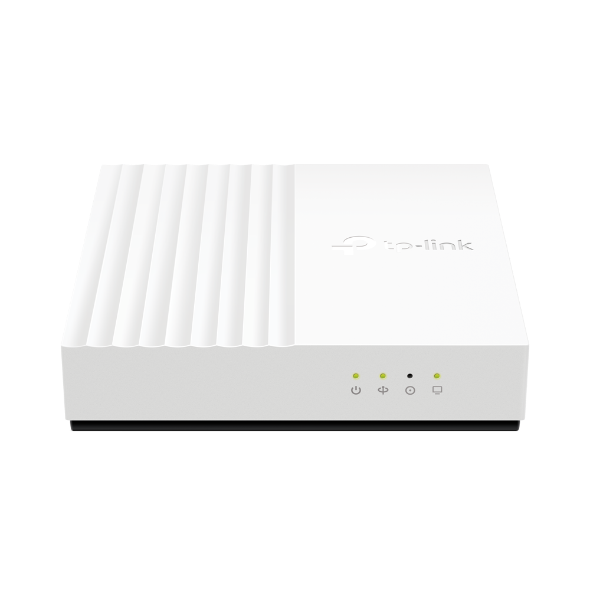

TP-Link XGS-PON SFU with 10G LAN
- SKU: XGZ030
- Manufacturer: TP-Link
Product Information
1-Port XGS-PON Terminal
XGZ030
- Symmetrical 10G Connectivity: XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously.*
- 10G Wired Connections: 1× 10GE LAN port enables ultra-fast network sharing and connections.
- Ease of Use: Quick and hassle-free installation with intelligent power-saving.
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.
Specifications
Specifications EAP670
| HARDWARE FEATURES | |
| External Power Supply | 9V/0.85A |
| Interface | • 1 XGS-PON Port • 1 10G RJ45 Port |
| Button | • 1 Power On/Off Button • 1 Reset Button |
| Dimensions ( W x D x H ) | 4.72 × 4.72 × 1.1 in (120 × 120 × 27.85 mm) |
| IEEE Standards | • IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1w • IEEE 802.3, 802.3.u, 802.3ab, 802.3x |
| Data Rates | • Downstream Speeds: 10 Gbps* • Upstream Speeds: 10 Gbps* |
| Optical Module | Class E1 |
| Wavelength | • Upstream: 1270 nm • Downstream: 1577 nm |
| Transmitter | DFB laser |
| Receiver | Super-TIA |
| Distance | 0–20 Km Max |
| GPON Standards | ITU-T G.9907.1, ITU-T G.988 |
| SOFTWARE FEATURES | |
| Management | • Local management: WebGUI, Telnet • Remote management: OMCI |
| Security | • AES encryption • Packet filter based on VLAN |
| Advanced Features | • Upstream and Downstream FEC • Dynamic Bandwidth Allocation (DBA) support NSR/SR • Up to 32 T-CONTs and 256 GEM ports • Optical power detection • Dying Gasp • Terminal Silent mechanism • 802.3az EEE energy conservation • Schedule Reboot • LED Schedule |
| VLAN | • 802.1Q tag VLAN, Q in Q VLAN • VLAN transparent mode/VLAN translation • Mode/VLAN trunk mode • Authentication based on SN and password |
| IGMP | IGMP v1/v2/v3 |
| OTHERS | |
| Package Contents | • XGS-PON Terminal • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| Environment | • Operating Temperature: 0℃–40℃ (32℉–104℉) • Storage Temperature: -40℃–60℃ (-40℉–140℉) • Operating Humidity: 10%–90% non-condensing • Storage Humidity: 5%–90% non-condensing |
| Certifications | CE, FCC, RoHS |
| Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
