Tycon Power 48V 802.3af Input, Gigabit, Switch Selectable 18V or 24V 24W Passive POE

(0) No Reviews yet
  • SKU: TP-POE-1824G
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$44.95

Specifications TP-POE-1824G

DC POE Output Voltage (+/-2.5%)18V or 24V (switchable)
Overvoltage Protection22V or 28V
Ethernet Interface Speed10/100/1000
POE Input (IEEE 802.3af/at) 36 - 60VDC
Output Current1A @ 18V 1A @ 24V
Output Power24W Max
Load Regulation5%
Ripple / Noise2%
EMC Standards FCC Class B NE55022 Class B

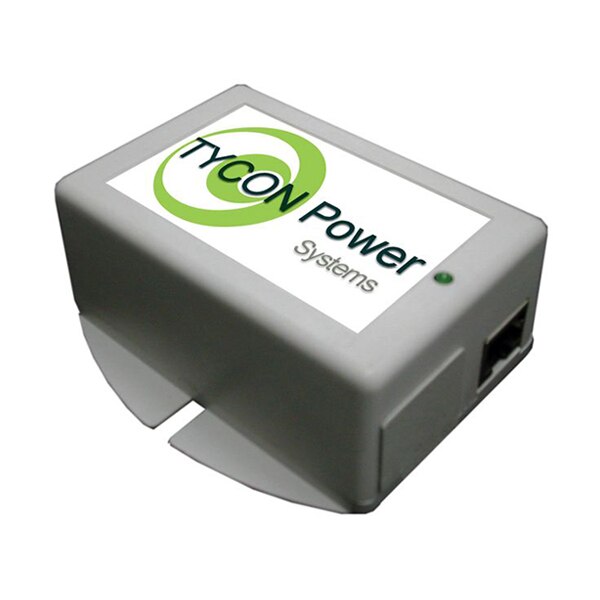

Tycon Power TP-POE-1824G

802.3af/at Converter - Converts 48V 802.3af/at POE to 18/24VDC (switchable) non compliant POE

Gigabit POE 1000Mb compatible

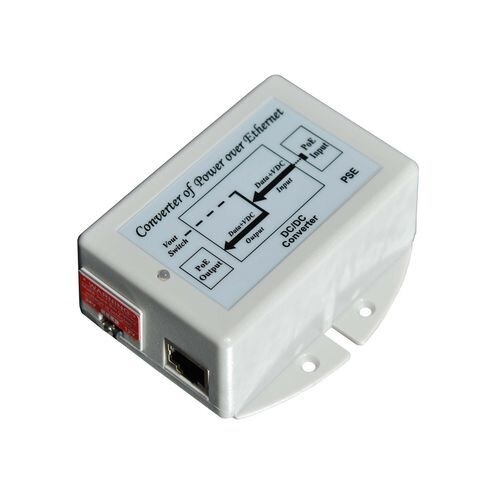

The TP-POE-1824G Power Over Ethernet 802.3af/at converter is a unique product allowing a customer to run a Passive POE device from a standard 802.3af/at POE switch. They accept 802.3af/at POE in and provide a switch selectable 24W Passive POE output of 18VDC or 24VDC.

They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).


Feature:

  • Converts 48V 802.3af/at POE Input to 18V or 24V Passive POE Output
  • Run non-compliant equipment on 802.3af/at POE switches
  • POE output switchable between 18VDC and 24VDC
  • Remotely Power Equipment thru CAT5 Cable up to 100m
  • Short Circuit, Over Current and Over Voltage Protection
  • High Temperature Operation, 10/100 and Gigabit Ethernet Operation
  • Compact size – Floor / Desktop / Wall Mount

Applications

  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems
