Tarana Wireless G1 3.6GHz Remote Node Bundle (5-Pack) priced single
- SKU: 35-0177-001
- Manufacturer: Tarana Wireless
- Data Sheet: Download
Product Information
Tarana Wireless 35-0177-001

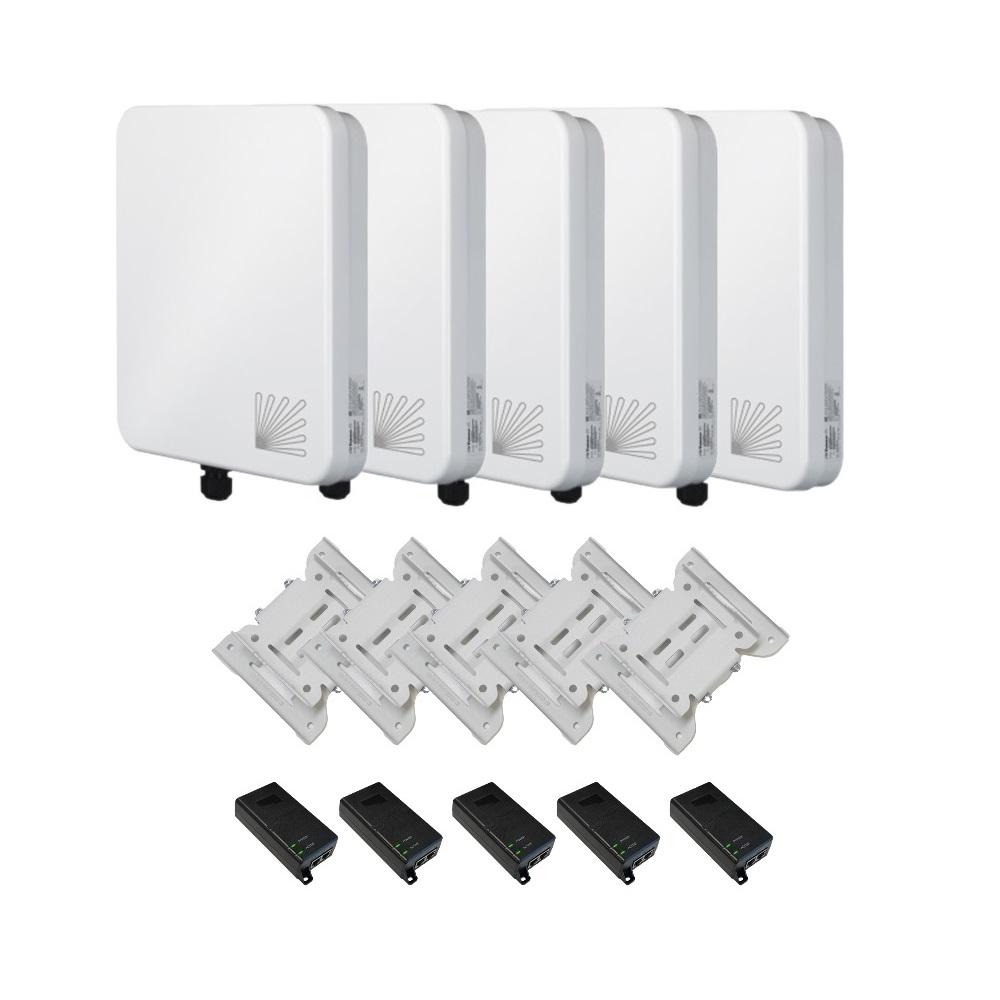

G1 3.6GHz Bundle Pack Outdoor Remote / Residential Node (RN) with Integrated Antenna, Mounting Kit and PoE Injector, FCC / CBRS. 5-Pack Bulk Packaging, priced per One unit
Large portions of both developed and especially developing economies remain underserved in an ongoing digital divide that makes real broadband ever more urgent, as evolving modes of work, education, commerce, health care, and entertainment increase dependence on great connectivity. Copper-based fixed access networks are increasingly exhausted. Wireless alternatives continue to fail in the face of the significant technical challenges in carrier-class fixed access, including pervasive obstructions, spectrum scarcity, interference, changing conditions, and unworkable deployment models.
Tarana innovation has solved all these problems. Our Gigabit 1 platform (G1) is powered by the results of more than 10 years of focused R&D, and crafted from its custom silicon up to its cloud-based service automation with a completely fresh approach to fixed wireless. Extensively validated by tier-1 operators and well proven in carrier scale networks, our fundamental advances in multi-radio performance completely transform the economics of delivering gigabit-class access. The G1 platform features the base node (BN), remote node (RN), and Tarana Cloud Suite (TCS) for management.
Features:
- Up to 1.6 Gbps Aggregate Capacity per Link*
- Up to 3.2 Gbps Capacity per Sector*
- Up to 12.8 Gbps Capacity per Cell (4 BNs)*
- Up to 250 Clients per Sector
- Up to 1000 Clients per Cell (4 BNs)
- 5 or 6 GHz (unlicensed) or 3 GHz (CBRS)
- Works in NLoS and nLoS
- Cancels Interference
- Fiber-Class Reliability
- Fast to Deploy
- More Affordable than Fiber
Specifications
Specifications 35-0177-001
| G1 radio network platform | Base node (BN) |
| Topology | Scheduled, concentrated multi-point |
| Duplexing | TDD |
| Downlink/uplink ratios | Network profile 1 (up to 15 km range) g 4.5:1 Network profile 2 (up to 30 km range) g 4:1 Network profile 5 (up to 15 km range) g 2.67:1 Network profile 6 (up to 15 km range) g 1.75:1 |
| SLA profiles | Configurable per RN |
| Modulation | QPSK 1/2 to 256QAM 7.35/8 UL/DL |
| Spectral efficiency | 30 bps/Hz per BN, up to 90 bps/Hz per band, configuration dependent |
| Range (full rate, frequency dependent) | NLoS LoS |
| Recommended frequency reuse factor | Universal frequency reuse (k=1), enabled by advanced self-interference cancellation |
| Beamforming | Auto-convergent, retro directive |
| Interference management | Self-interference cancellation, Advanced Burst Interference Cancellation (ABIC) |
| VLANs | Per BN or RN for user data, and management VLAN, Subscriber VLAN pass through |
| QoS | DSCP, VLAN 802.1p |
| Latency (one-way average) | <5 ms |
| Max Ethernet MTU | 2048 bytes |
| Compliance | RSS-247, FCC 15E, FCC Part 96, WINNF-TS-0122 |
| Standards and safety | IEC 62368-1, IEC 60529, IEC 60950-1, IEC 60950-22 |
| Data plane security | RF Link Encryption AES-128 |
| Tarana Cloud Suite (TCS) | Scalable microservices based multi-tenant network management Zero-touch provisioning and control of radios with streaming telemetry Firmware and configuration management 24x7x365 KPI monitoring and management Fault management and historical events Network analytics SAS and AFC domain proxy Northbound Rest-API for customer and operator portal (B/OSS) |
| Operating temperature range | -40°C to 55°C (-40ºF to 131ºF) |
| Remote Nodes (RNs) | |
| Frequency support | 3.550–3.700 GHz (US CBRS, Cat B) |
| Throughput (aggregate) | 800 Mbps |
| Channel bandwidth | 80 MHz (2 x 40 MHz) |
| MIMO streams | 1x1, 2x2 |
| Model numbers | G1-RN3ASI001 G1-RN3ASI011 |
| Weight | 6 lbs (2.7 kg) |
| Dimensions (H x W x D) | 11 x 12.5 x 3.3 in (279 x 318 x 84 mm) |
| Power consumption (typical at 55ºC) | 49 W |
| Power input | 48V Passive PoE Part # 44-0017-001 |
| Mounting | Band clamp for pole mount (1.5–2.5 inches OD); mount weights 1.2 lbs |
| Form factor | Outdoor, single enclosure with fully-integrated antenna, RF, and baseband |
| Antenna | Fully integrated |
| Interfaces | 1 Gbps Ethernet interface with PoE support, RJ45 pinout T568B |
| Environmental rating | IP66 |
