Tycon Systems UPSPro 100W 600VA, 12VDC 20A Unregulated Output, 120/240VAC Input, Small Aluminum Encl, 12V 50Ah AGM Battery. Solar Ready

US$‎750.45 US$‎789.95
  • SKU: UPS12-50-120
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • User Guide: Download
  • Availability: Direct Ship Item Ships direct from manufacturer usually same day Email me when this product is in stock!
    Out of stock at College Station
US$‎750.45 US$‎789.95

Specifications UPS12-50-120

Battery Voltage (DC)12VDC
Input Voltage (AC)120/240VAC, 50/60Hz, 5A Max.
Capacities (Amp Hr)50Ah
Avail Storage Capacity (Watt Hr)600Whr
Max Output Power120W
Suggested Maximum Load100W
Maximum Instantaneous Load20A 500msec
Battery TypeMaintenance Free,Valve Regulated, Sealed Lead Acid, AGM
Battery Life5+ years
Battery Cable Fuse6x32mm 30A 250V Ceramic Fuse
Controller Type20A PWM Solar Controller with Status Display and 20A Load Control
Maximum Solar Panel Size240W @ 12V
Controller Display StatusBattery Voltage, Charging Voltage, Charging Current, Load Current, Temperature
Bulk Charge14.4V
Float Charge13.8V
Over-discharge protection11V
Over-discharge recovery voltage12.6V
Controller Self Consumption<0.3W

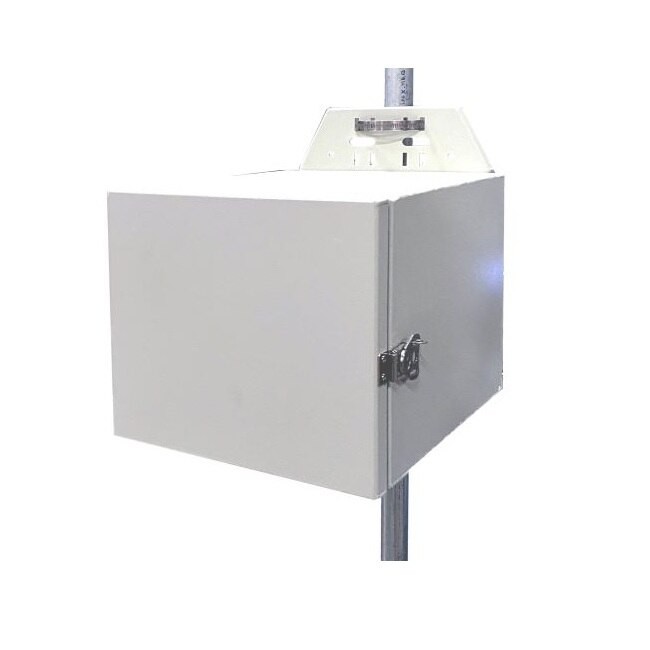

Enclosure TypePole/Wall Mount Powder Coat Aluminum
Enclosure Size12 x 14 x 15" (305 x 356 x 381mm)
Operating Temperature-40°C to +65°C (-40°F to 149°F)
System Weight (without batteries)20lbs (9kg)
Battery Weight1 x 40lbs (18kg)
CertificationsIndividual components used have CE Certifications.
Warranty3 Years

Tycon Systems UPS12-50-120

UPSPro 100W 600VA, 12VDC 20A Unregulated Output, 120/240VAC Input, Small Aluminum Encl, 12V 50Ah AGM Battery. Solar Ready

The UPSPro UPS12-50-120 and UPS12-50-600 outdoor backup power systems are designed for applications that require a reliable backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready (requires blocking diode with most panels) so a solar panel can be added as an alternate power source or to extend backup time.

Features include 12VDC load controlled output, an advanced 20A PWM battery charge controller to protect against overcharging or over-discharging of the valve regulated sealed lead acid AGM batteries. The pole/wall mount aluminum enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45C.

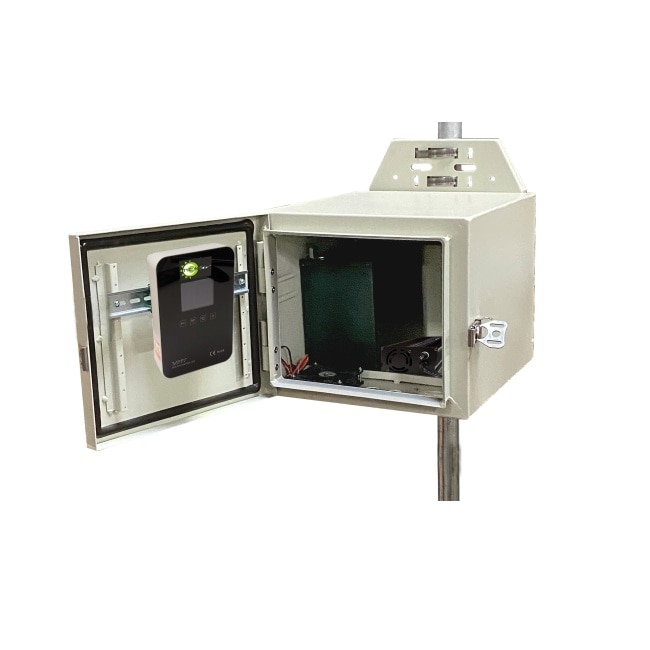

There is generous space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There are mounting struts incorporated inside the enclosure to be able to mount DIN Rails or a flat metal or plywood plate. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.


Features:

  • 12VDC System
  • Weatherproof, UV resistant, Aluminum Outdoor Enclosure
  • Powered from AC Mains Power and/or Solar
  • Interior Space for Customer Electronics
  • Pole/Wall Mounting
  • Isolates Connected Equipment from Power Line Surges
  • High Quality Maintenance Free AGM Batteries
  • Advanced Battery Charge Controller Protects Against Overcharge and Over Discharge

Applications:

  • Wireless Base Stations and Clients
  • Mission Critical Power
  • Remote Sensors
  • Wireless Bridge and Repeaters
  • Surveillance Cameras
  • Backup Power Systems
