Ubiquiti airCube ISP 802.11n Wi-Fi router with PoE in/out
- SKU: ACB-ISP-US
$29.00
- Manufacturer: Ubiquiti Networks
- User Guide: Download
Product Information
Ubiquiti ACB-ISP
Ubiquiti airCube ISP 802.11n Wi-Fi router with PoE in/out
Ubiquiti Networks introduces the airCube, a cost-effective wireless access point for use in your customer deployments. With a compact design and integrated 24V PoE passthrough, the airCube is a home Wi-Fi access point designed to interoperate with airMAX CPEs and is available in two models. The airCube's attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance. Use the intuitive U Mobile app for iOS and Android to install and configure airCube. Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points. Management options feature a graphical user interface designed for streamlined setup and control.
5VDC Micro USB Power Supply Sold Separately.
Specifications
Specifications ACB-ISP

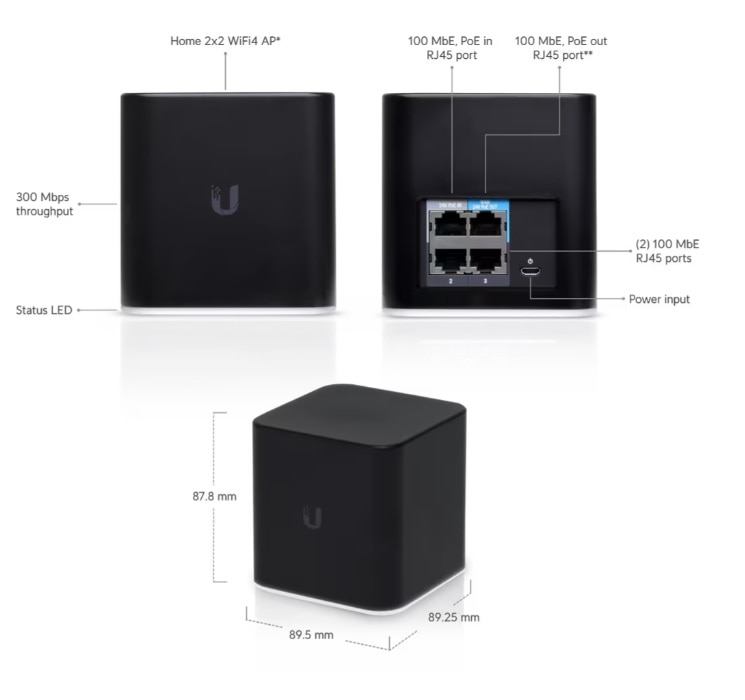

Dimensions | 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51") |
Weight | 215 g (7.58 oz) |
Power Supply | 5V |
Power Method | PoE 24V In on LAN Port 1 or 2A Micro USB Adapter (Not Included) |
Supported Power Voltage | 4.95-5.05V |
Max. Power Consumption | 5W |
PoE Out | Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port |
Management Interface | Wi-Fi / Ethernet |
Networking Interface | (4) 10/100 Fast Ethernet Ports |
LED | Status |
Max. TX Power | 22 dBm |
Antenna Gain | 4 dBi |
Max. Speeds | 300 Mbps |
Enclosure Characteristics | Black Plastic |
ESD/EMP Protection | ±24 kV RJ-45 Interface |
Operating Temperature | -10 to 50° C (-14 to 122° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
