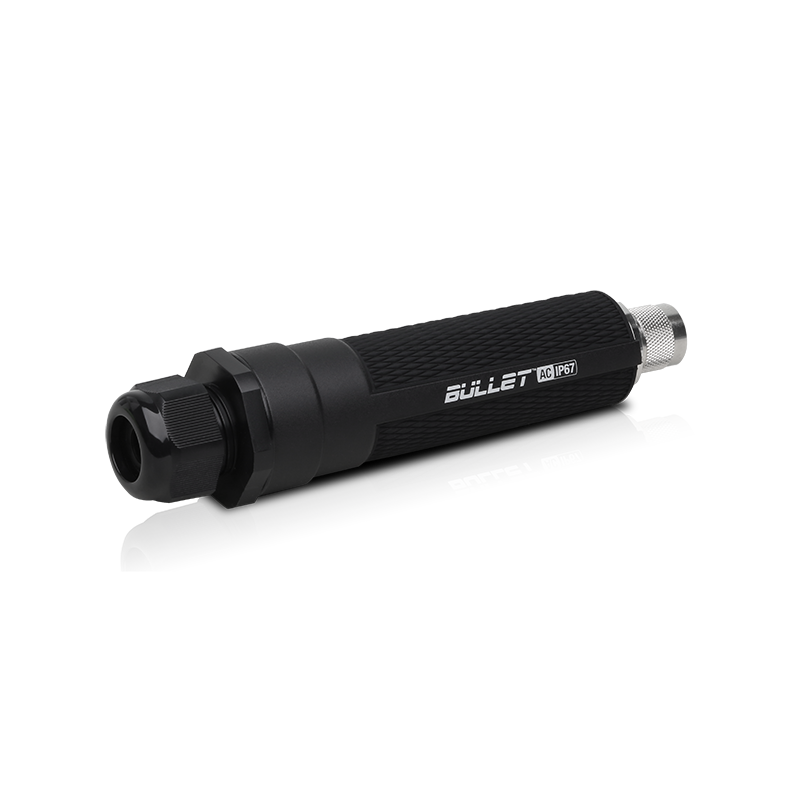

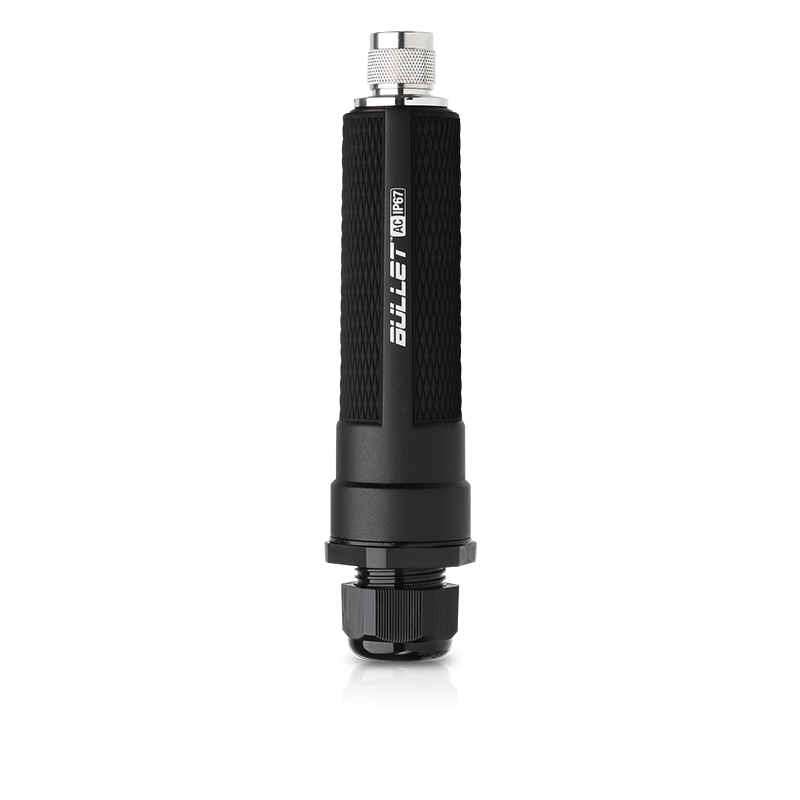

Ubiquiti BulletAC-IP67

airMAX Bullet Dual Band AC IP67 300Mbps Titanium

Bullet™ AC IP67 covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links. It also features IP 67 protection for deploy-anywhere reliability.

Ubiquiti Networks designed airMAX ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet™ AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).

The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. There are no radio card / host board issues, no RF cable quality concerns, no mechanical stability concerns, and no enclosure mounting requirements. With the Bullet AC, operators can just plug in and go.

The Bullet AC is a fully integrated radio that delivers up to 300+ Mbps Real TCP/IP throughput. It covers both 2.4 and 5 GHz radio bands, covering a wide range of frequencies that work well for both short and long-distance links. The BulletAC-IP67 offers up to 21 dBm of output power. 24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Bullet AC. Use a PoE Adapter (not included) or an optional PoE switch.

The durable casing of the BulletAC-IP67 features a robust IP67 weather-resistant body that protects against dust and water. No special tools or antennas are required to install the Bullet AC. Simply plug in and go.

Specifications

Specifications BulletAC-IP67

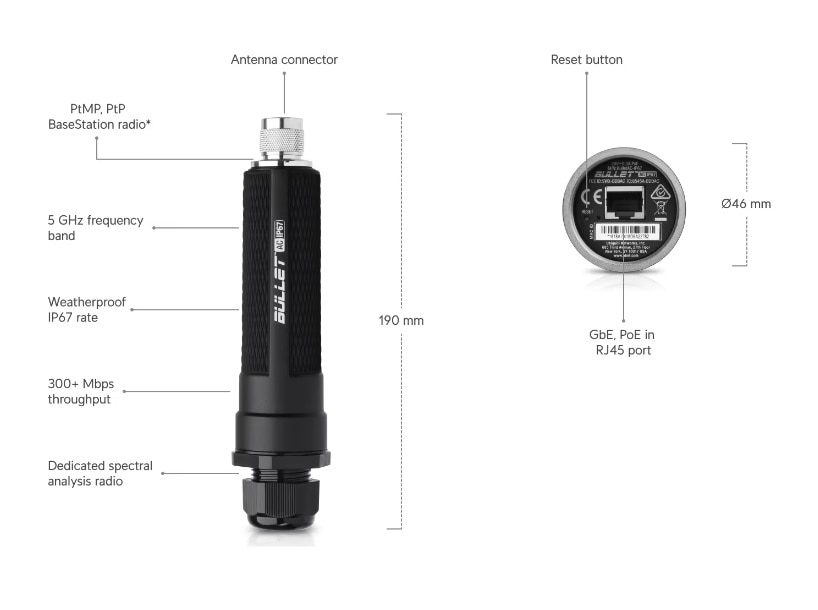

Dimensions 190 x 46 x 46 mm (7.48 x 1.81 x 1.81”)
Weight 213 g (7.51 oz)
Enclosure Aluminum and Rubber
Networking Interface Gigabit Ethernet Port

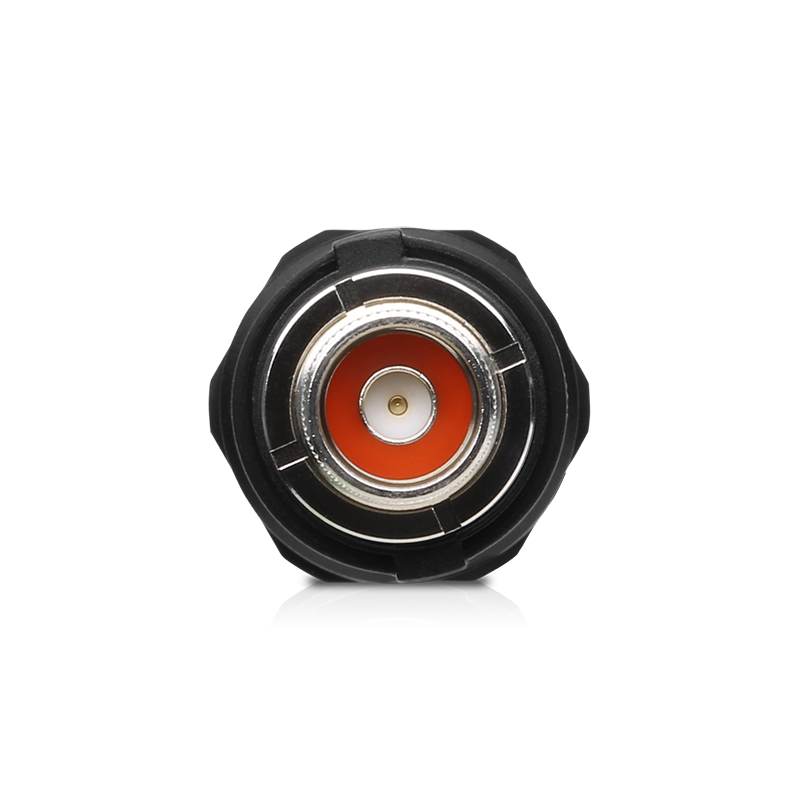

Antenna Connector N-Type Connector
Throughput 2.4 GHz 5 GHz160+ Mbps 300+ Mbps
Max. Power Consumption7W
Output Power 21 dBm
Power Supply AC to 24VDC, 0.3A Gigabit PoE Adapter
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
ESD/EMP Protection ± 24 kV Contact / Air
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Condensing
Shock and VibrationETSI300-019-1.4
CertificationsCE, FCC, IC
