Ubiquiti Networks UISP Dual-Power Injector
- SKU: UACC-Dual-Power-Injector
$79.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Networks UACC-Dual-Power-Injector
UISP Dual-Power Injector 100W PoE Adapter Dual 2.5G Ethernet Ports
This Ubiquiti UISP is a versatile PoE device capable of delivering up to 100W of power and supporting 2.5 GbE connectivity. Its features make it suitable for a wide range of applications and provide outstanding performance in installations. Either on the pole or on the wall.
Features:
- (2) 2.5G GbE RJ45 ports with 48V passive PoE
- Weatherproof enclosure

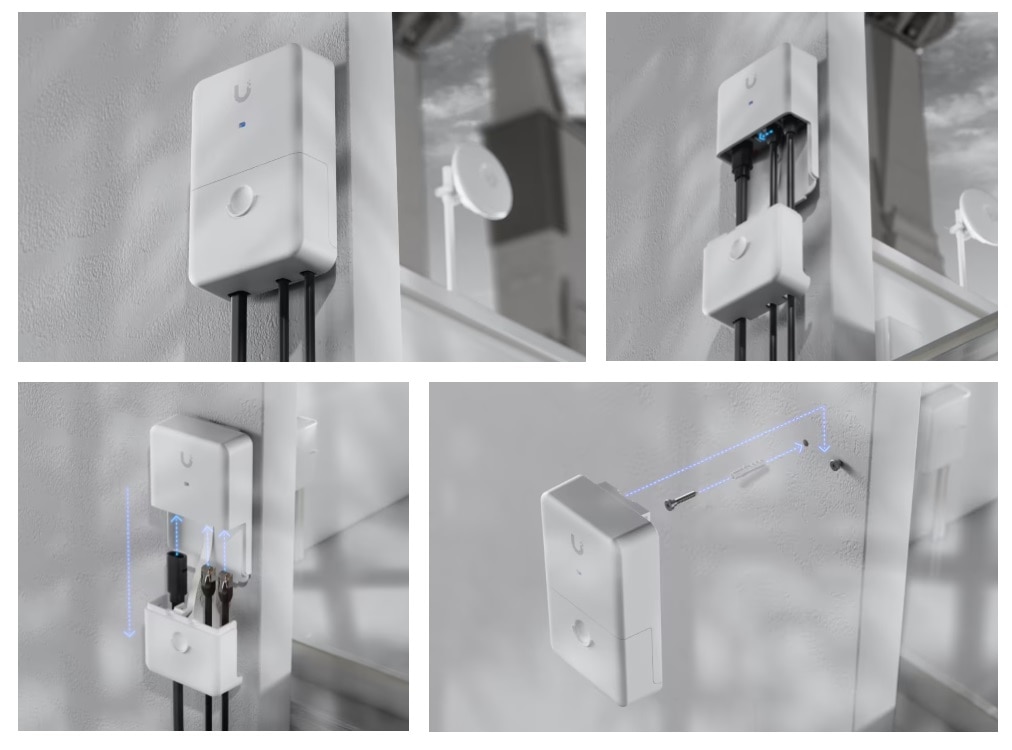

- Pole or wall-mountable (kit included)
- Supports all Wave models
- Compatibility:Wave-AP, Wave-AP-Micro, Wave-Pico, Wave-Pro, Wave-LR, Wave-Nano
Specifications
Specifications UACC-Dual-Power-Injector

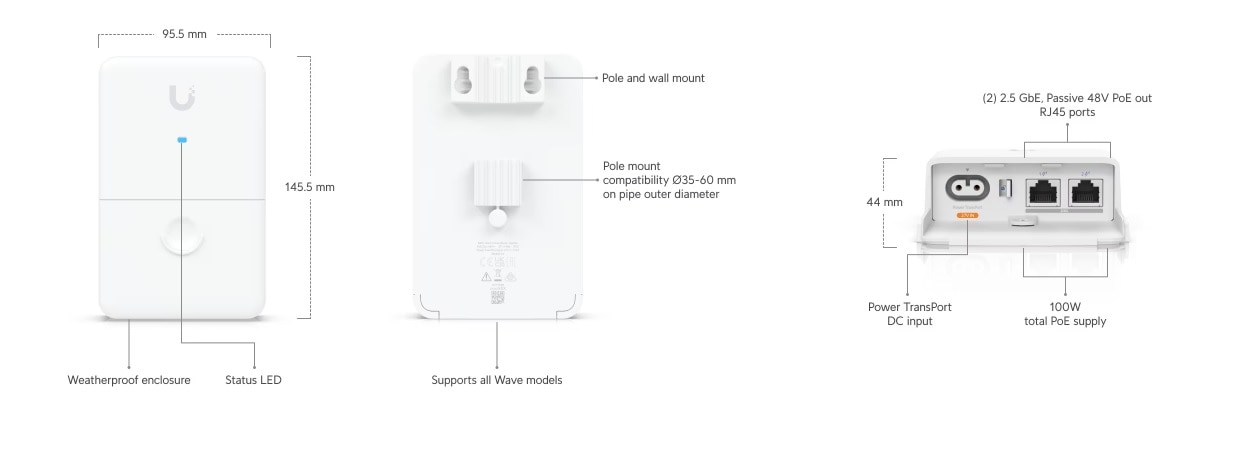

| Dimensions | 145.5 x 95.5 x 44 mm (5.7 x 3.8 x 1.7") |
| Weight | 280 g (0.61 lbs) |
| Enclosure material | UV-stabilized polycarbonate |
| Wind survivability | Up to 200 km/h (125 mph) |
| Wind loading | 10.5 N at 200 km/h (2.4 lbf at 125 mph) |
| Mounting | Pole mount: 35 to 60 mm (1.37 to 2.36") on pipe outer diameter Wall mount |
| Weatherproofing | IPX5 |
| Hardware | |

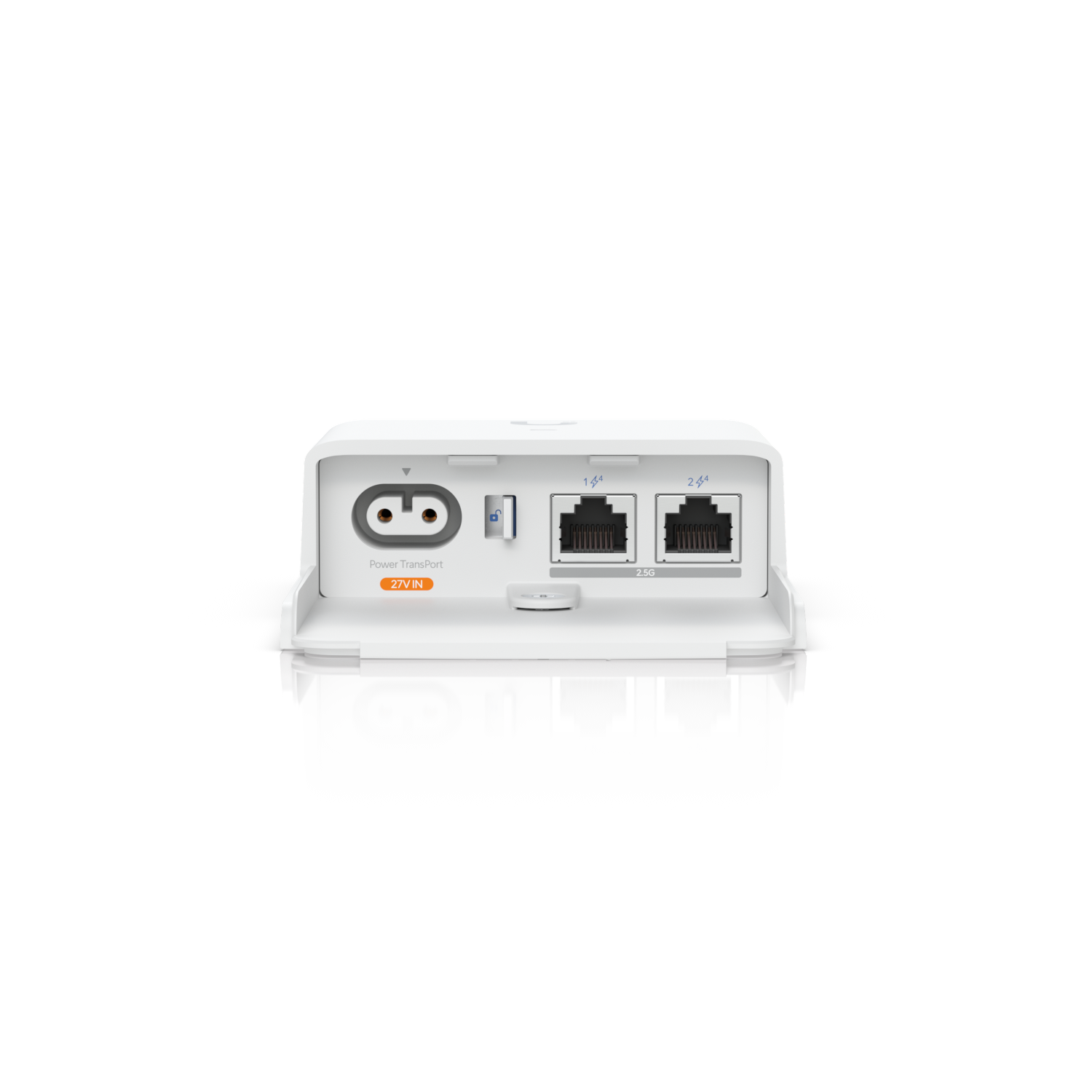

| Networking interface | (2) 2.5 GbE RJ45 ports |
| Power method | (1) Power TransPort DC input 27V DC, 4.44A |
| Power supply | 120W Power TransPort Adapter (not included) UISP Power UISP Power Pro |
| Output voltage | 48V DC |
| Max. output | Total 100W |
| LEDs | Blue: power On |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Compatibility | |
| Supported models | Wave AP Wave AP Micro Wave Long-Range Wave Nano Wave Pro Wave Pico |
