Ubiquiti 60GHz airFiber XG PtP 6Gbps (US Version)
US$1,059.00
- SKU: AF60-XG-US
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti Networks UBI-AF60-XG-US
60GHz airFiber XG PtP 6Gbps (US Version)
4+ km, multi-gigabit, 60 GHz bridge with SFP+ support. The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio. The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration.
Features:
- 60 GHz Wireless Frequency
- 5 GHz Backup Radio
- Up to 2.5-Mile Range
- Up to 6 Gb/s Throughput
- Channel Bonding Support
- 1 x Gigabit Ethernet PoE Port
- 1 x 10G SFP+ Port
- Integrated GPS
- Outdoor UV Stabilized Plastic Antenna
- Includes Precision Alignment Pole Mount
Specifications
Specifications
| Weight | Without mount: 8.6 kg (19 lb) With mount: 13 kg (28.7 lb) |

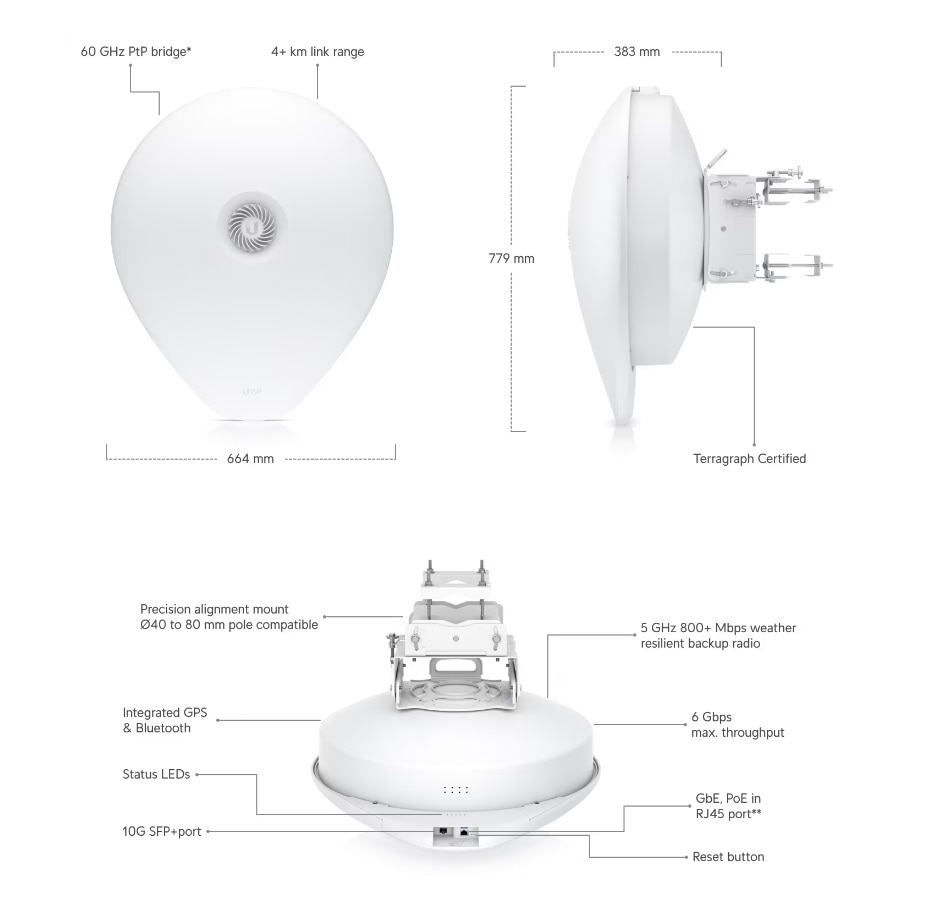

| Dimension (LxWxH) | 779 x 664 x 383 mm (30.68 x 26.14 x 15.06") |
| Enclosure materials | UV stabilized polycarbonate, steel |
| Mount material | Galvanized steel |

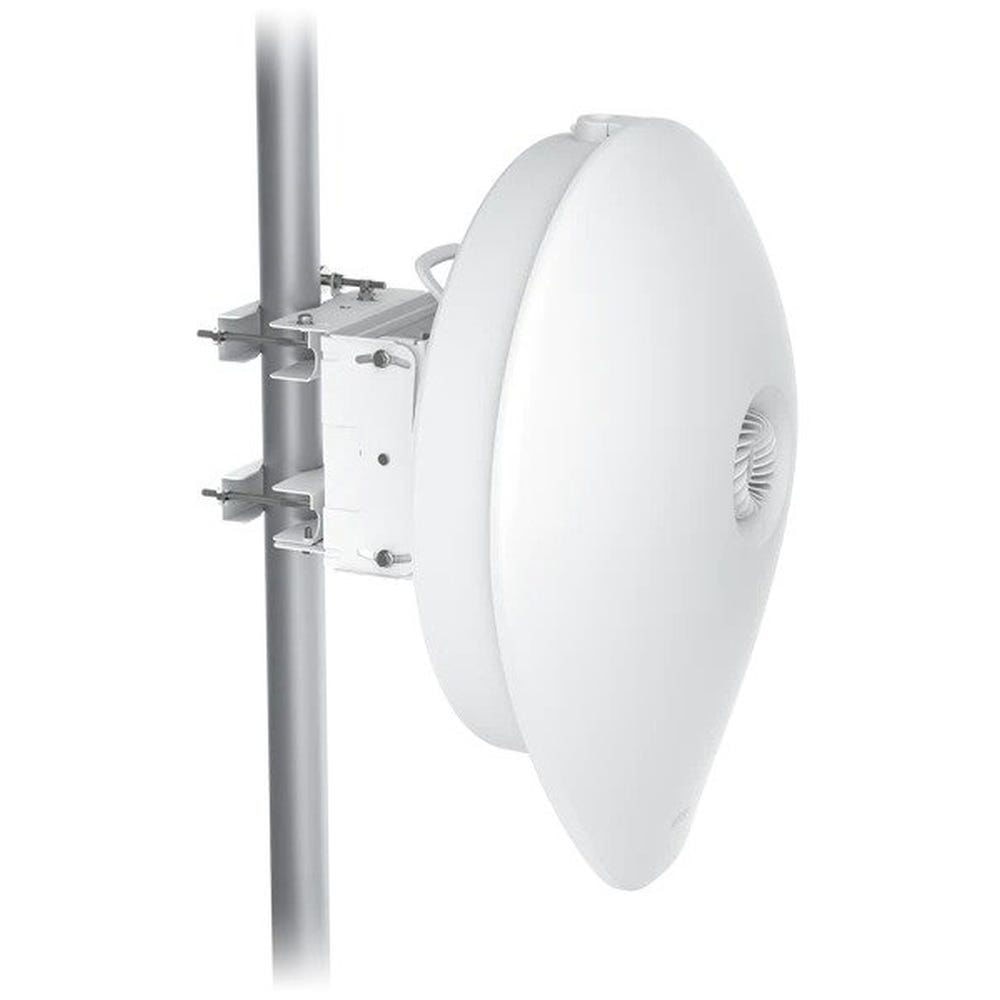

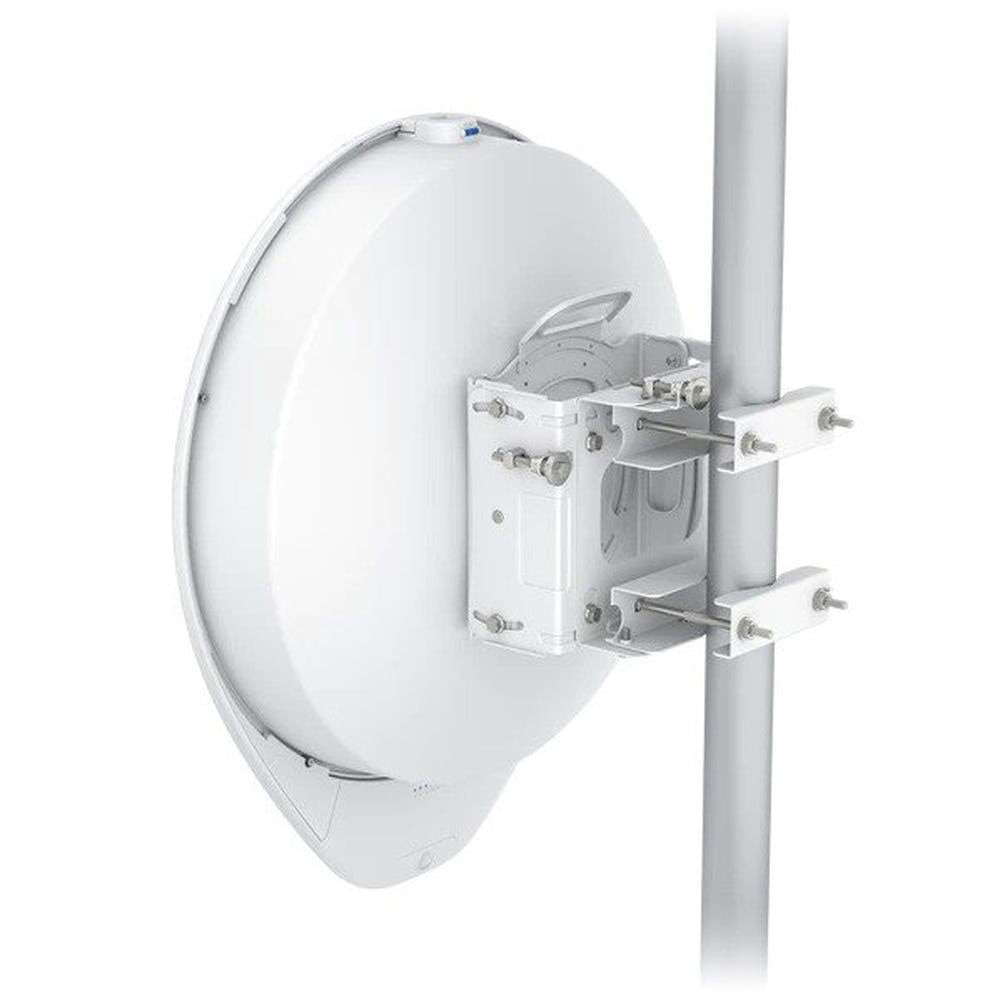

| Mount | Precision Alignment Kit(included) |
| Pole compatibility | Ø40-80 mm (Ø1.5-3.15") |
| Wind loading | 422 N at 200 km/h (94.86 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM® Cortex ® A72 at 1.6 GHz |
| Memory | 2 GB DDR4 |
| Networking interfaces | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Button | Factory reset |
| RF connections | Internal |
| Max. power consumption | 31.2W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) |
| Power supply | 48VDC, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48VDC ± 10% |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certications | FCC, IC, CE, terragraph |
| Power | |
| Flashing white | bootup in progress |
| White | not connected to UISP™ console |
| Blue | connected to UISP console |
| Ethernet Flashing blue | ethernet activity |
| GPS Blue | receiving atleast(4) GPS satellite signals |
| 60G Blue | active connection |
| 5G Blue | active connection |
| Software | |
| OS | airFiber |
| Modes | PtP only |
| Services | UISP, ping watchdog, NTP client, system log |
| Utilities | Antenna alignmenttool, discovery utility, ping, speed test |
| Management interface | Bluetooth managementfor easy setup over UISP App WEB UI |
| Minimum software requirements | Modern Web browser or Android/iOS smartphone |
| RF | |
| Operating frequency | 57 to 66 GHz |
| GPS | Yes |
| Channel bandwidth | 2160 MHz/4320 MHz (with channel bonding enabled) |
| Operating channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz* |
| Back-Up RF | |
| Operating frequency | US/CA U-NII-1 5150 - 5250 MHz U-NII-3 5725 - 5850 MHz Worldwide 5150 - 5875 MHz |
| Channel bandwidth | 20/40/80 MHz |
