Ubiquiti EV Station Pro
- SKU: UC-EV-Station-Pro
$1,199.00
+ $94.93 Surcharge
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

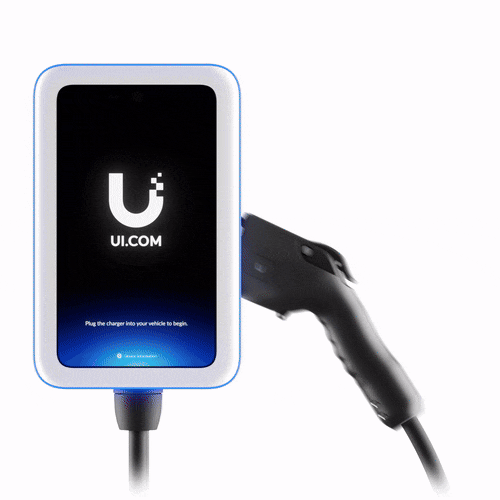

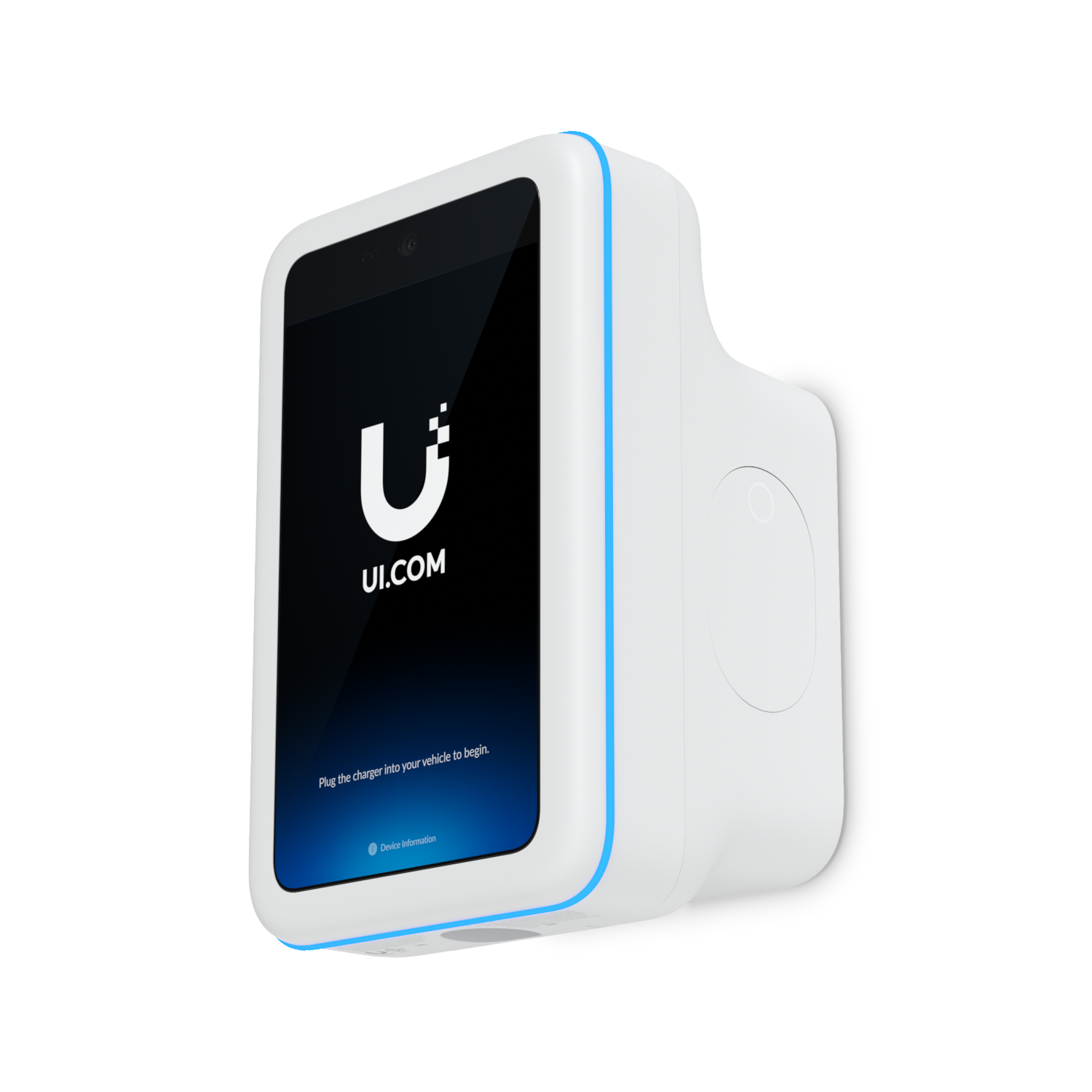

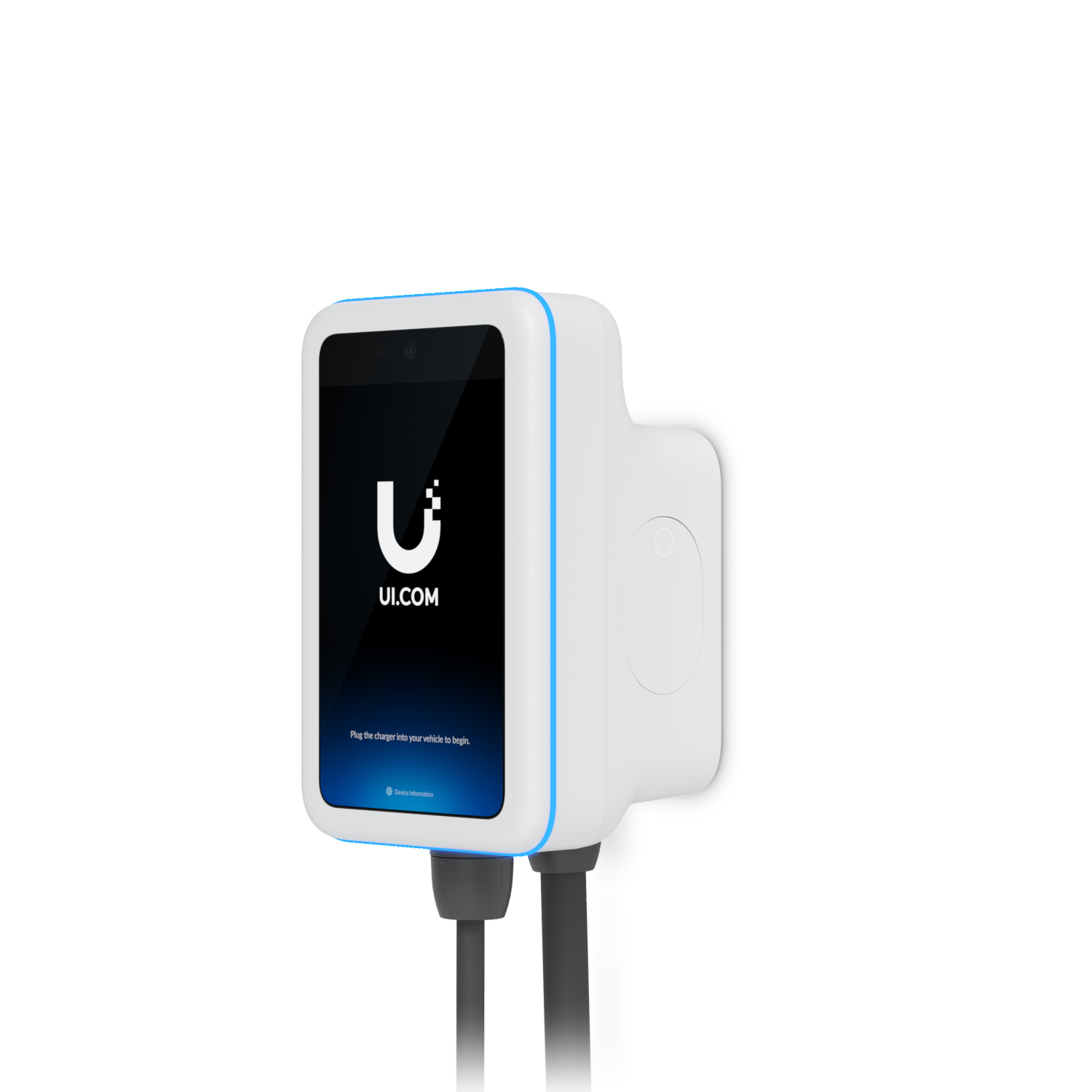

Ubiquiti Networks UC-EV-Station-Pro

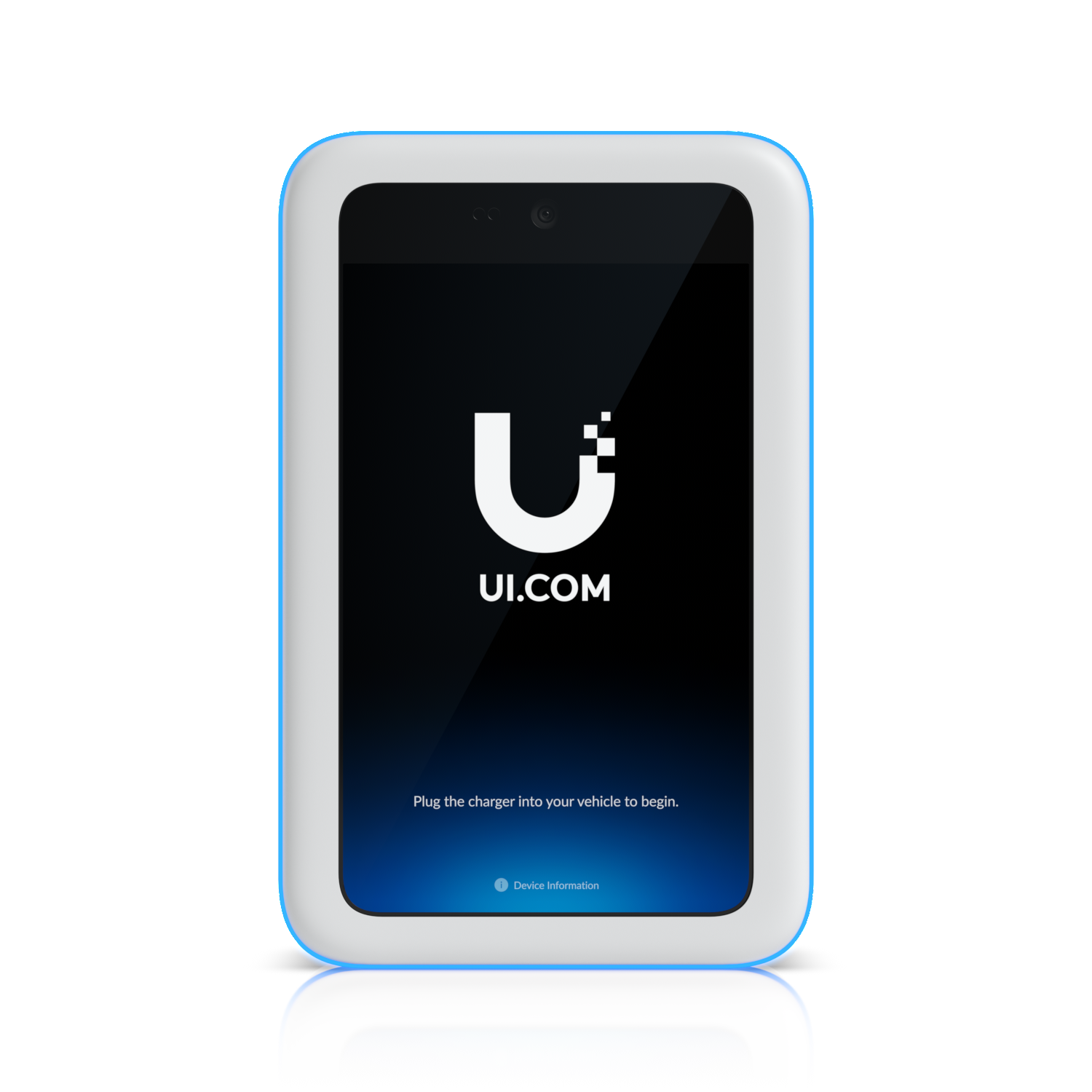

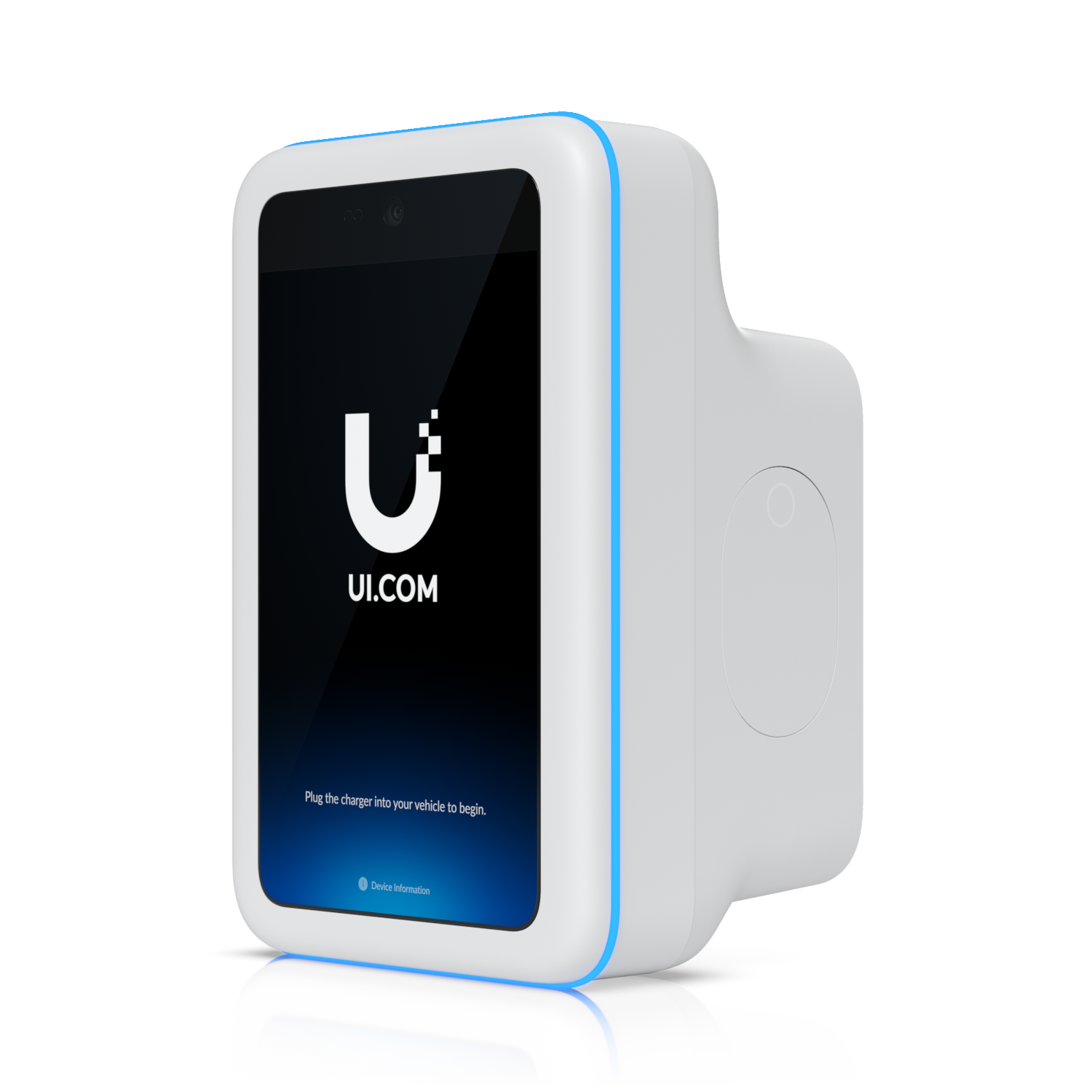

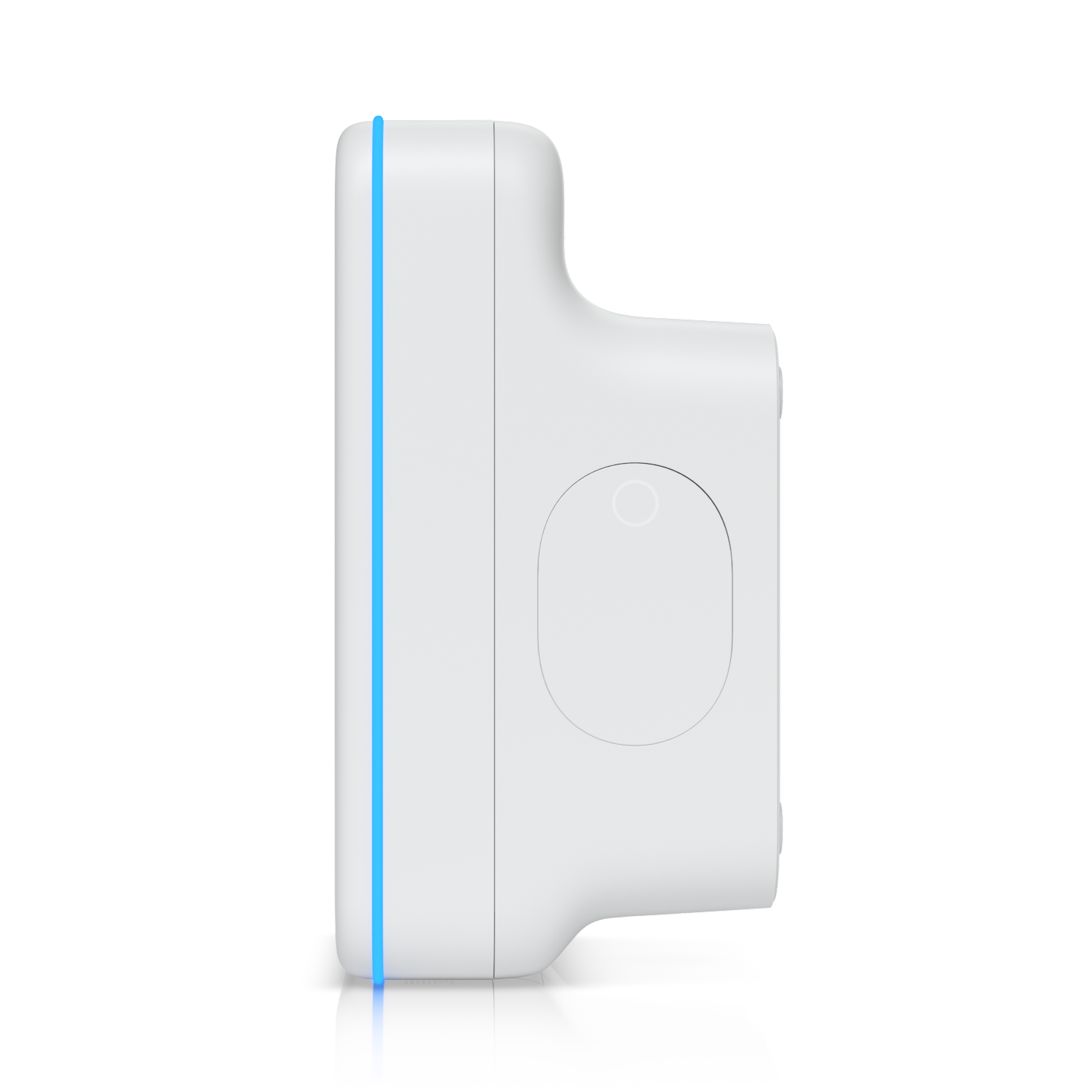

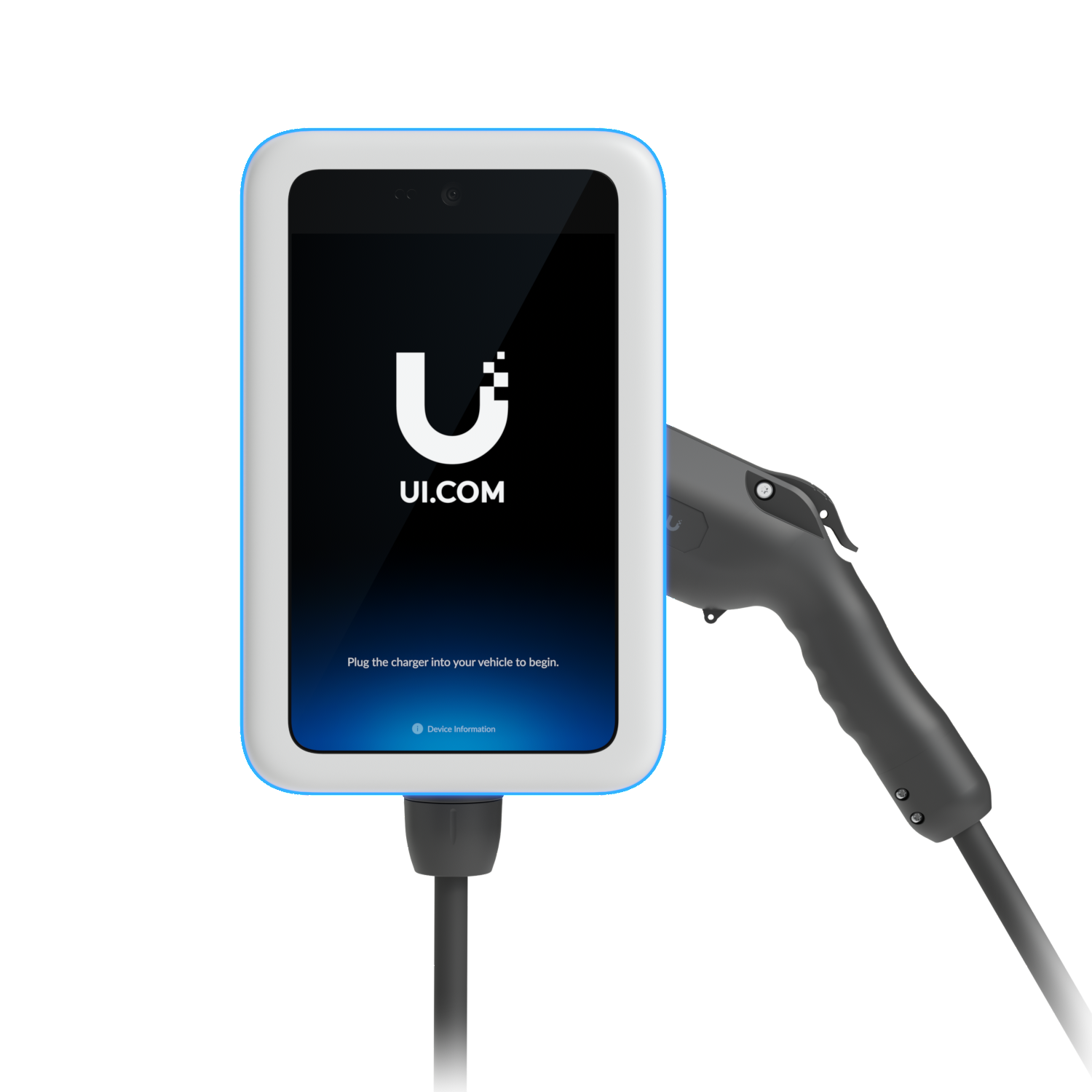

EV Station Pro
Weatherproof, 11 kW Level 2 electric vehicle charging station with an ultra-bright 10.1" touch display, flexible access control, and payment terminal accessory support.
Features:
- Ultra-bright 10.1" touch display
- 11 kW max charging output with SAE J1772 charging plug
- Media content playback for digital signage applications
- Access control with QR code scanning, UniFi Identity mobile app, and NFC card*
- Payment terminal accessory support for payment processing**
- Hardwire or use one of the included NEMA 14-50 and 6-50 cables for plug-in installation
- Connected with UniFi WiFi Auto-Link** or Ethernet
- UL certified

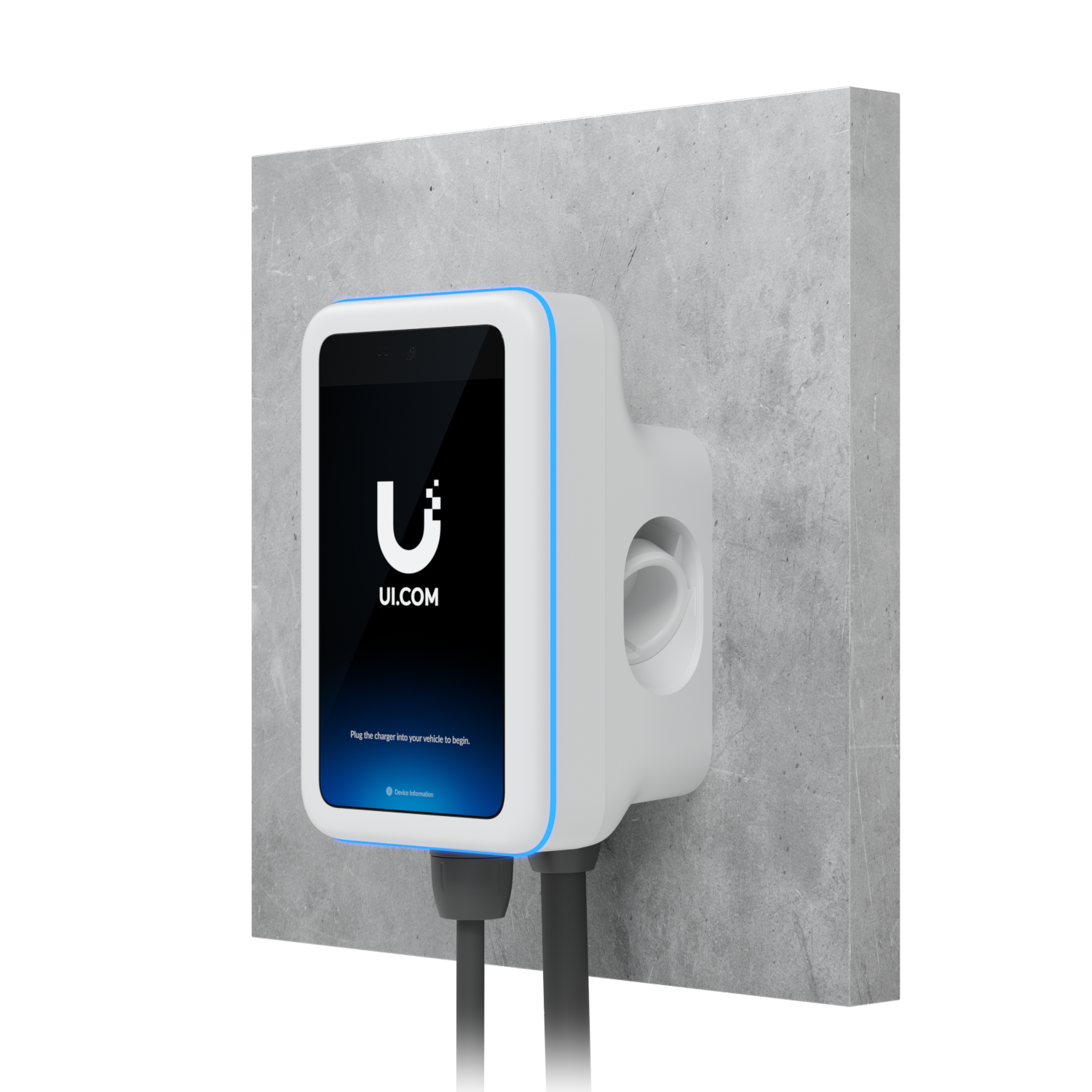

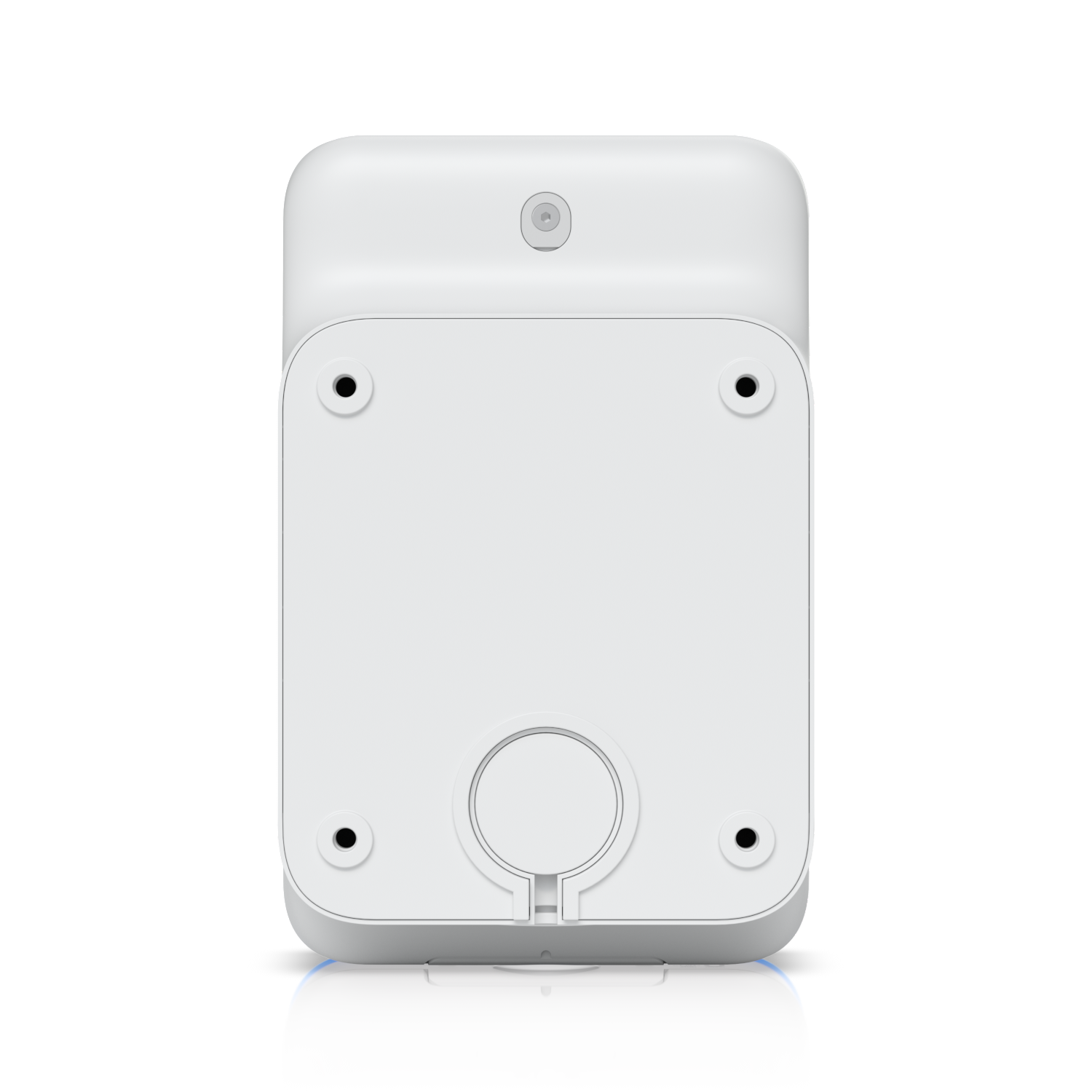

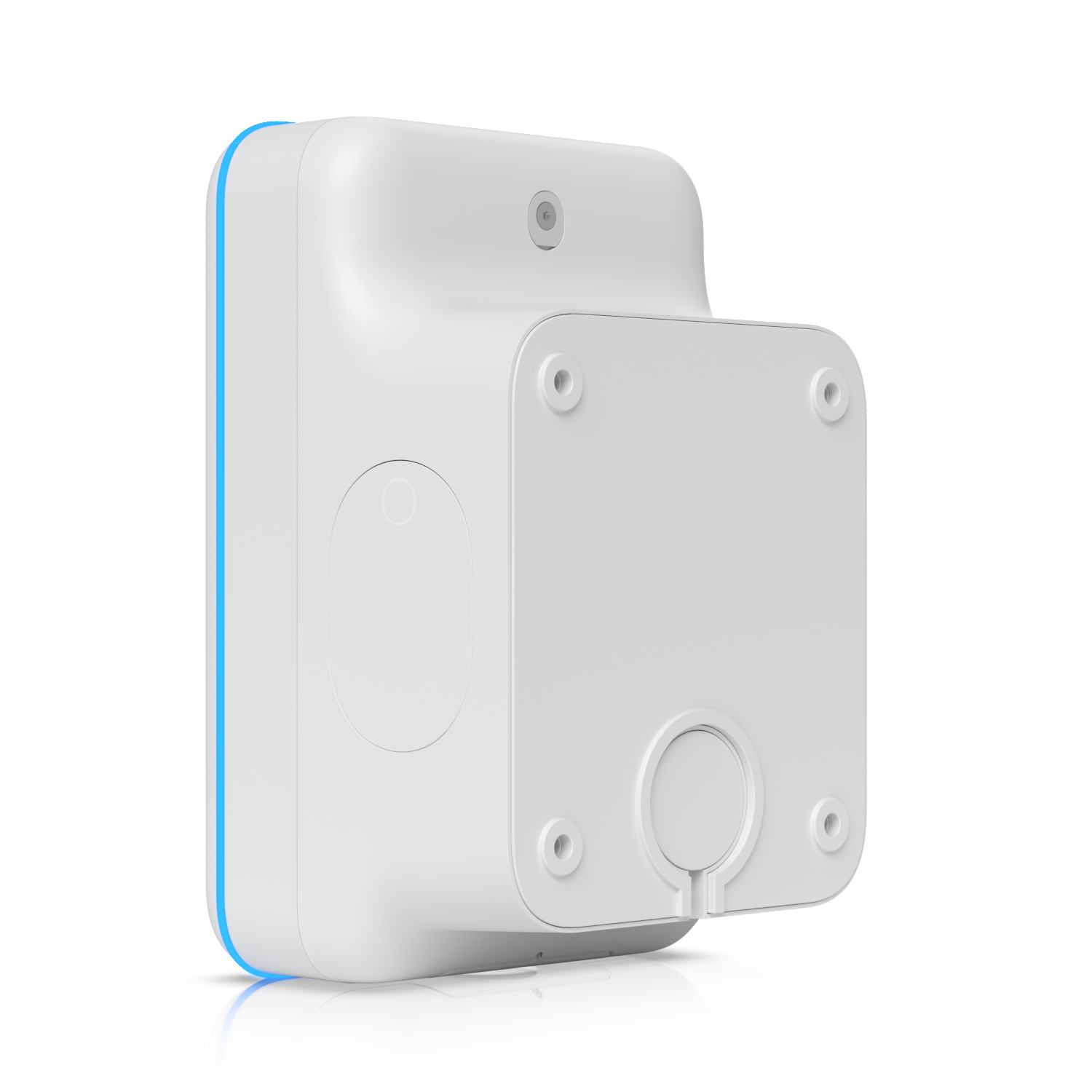

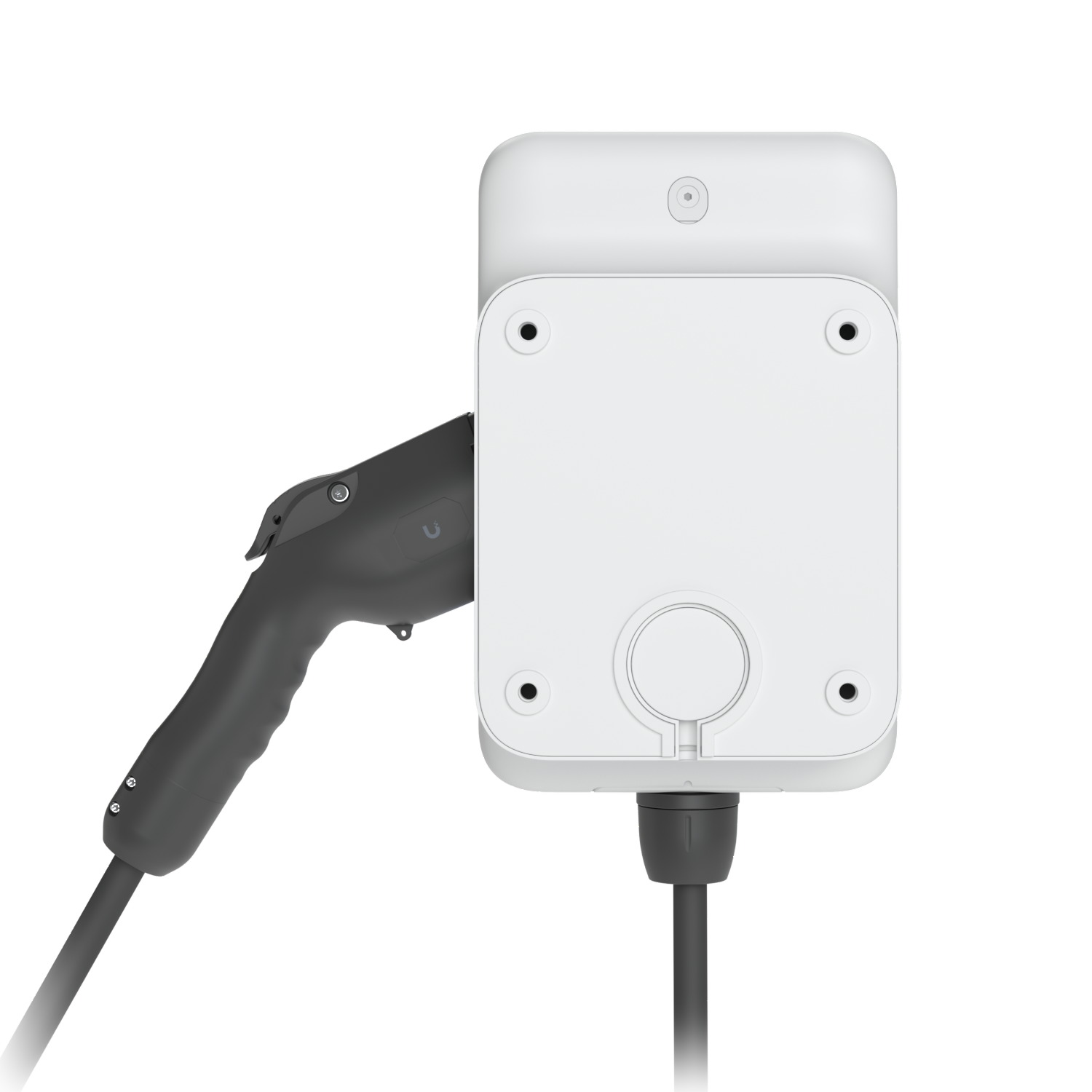

- Includes wall mount
Specifications
Specifications UC-EV-Station-Pro
| Mechanical | ||||

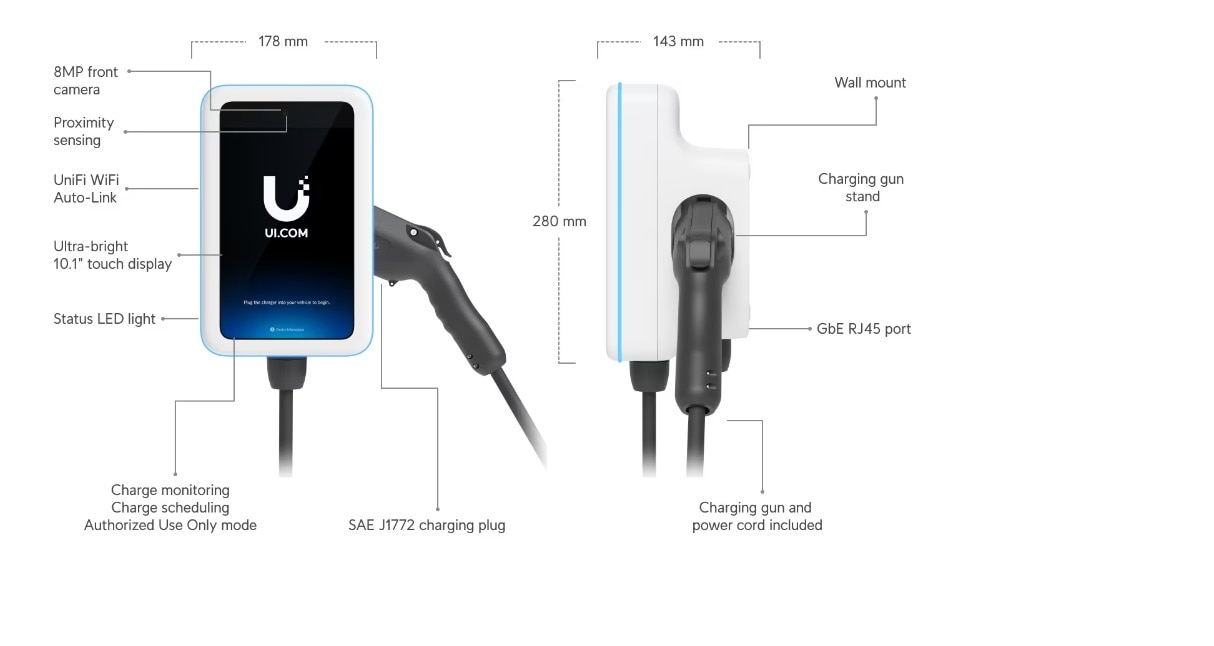

| Dimensions | 280 x 178 x 143 mm (11 x 7 x 5.6”) | |||
| Weight | With wall mount/charging gun/power cord: 8.1 kg (17.9 lb) | |||
| Enclosure material | Front modules: plastic Middle module: aluminum, plastic | |||
| Mount material | Plastic | |||
| Charging cable length | 7 m (23 ft) | |||
| Weatherproofing | Type 3R | |||

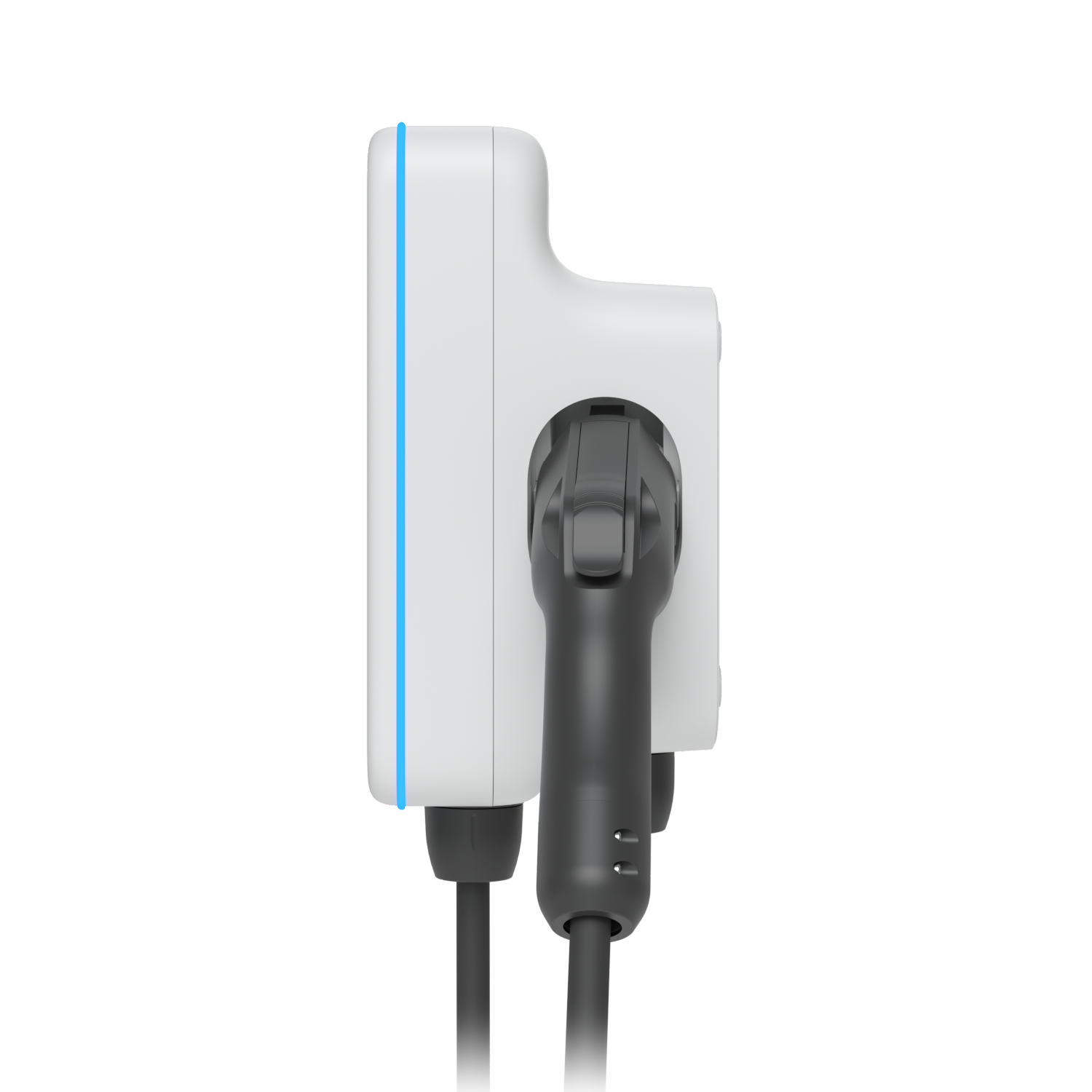

| Charging outlet | SAE J1772 | |||
| Hardware | ||||
| Display size | 257 mm (10.1") diagonal | |||
| Resolution | 800 x 1280 (10:16) | |||
| Display luminance | 800 nits (typical) | |||
| Touch screen technology | Capacitive multi-touch | |||
| Processor | Octa-core Arm® Cortex®-A53, 2.2 GHz | |||
| Memory | Storage: 32GB RAM: 3GB | |||
| Power input | 200–240V ~ 50A, 50/60Hz, 1φ | |||
| Power output | 200–240V ~ 50A, 50/60Hz, 1φ | |||
| Circuit breaker for charging output | Circuit rating | Max. load | Plug-in | Hardwired |
| 70A | 50A | No | Yes | |
| 60A | 48A | No | Yes | |
| 50A | 40A | Yes | Yes | |
| 40A | 32A | Yes | Yes | |
| 30A | 24A | Yes | Yes | |
| 20A | 16A | Yes | Yes | |

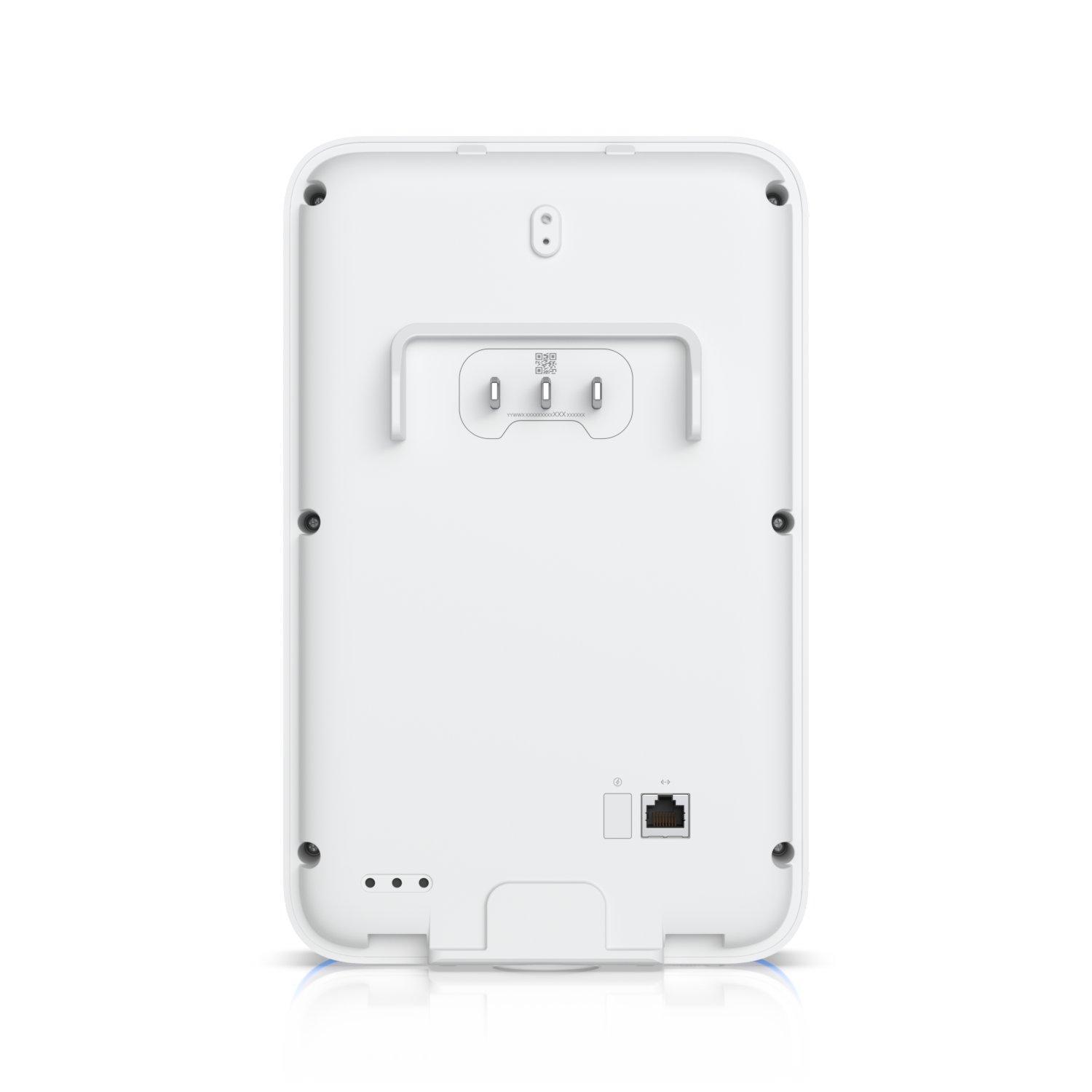

| Connectivity | (1) GbE RJ45 port (1) USB-C port for payment terminal accessory Bluetooth® 4.2 | |||
| Sensors | ALS + PS (ambient light sensor + proximity sensor) | |||
| Embedded front camera | 8 MP | |||
| WiFi standards | 802.11 a/b/g/n/ac | |||
| Mounting | Wall mount and stand | |||
| Ambient operating temperature | -40 to 50° C (-40 to 122° F) | |||
| Ambient operating humidity | 5 to 90% noncondensing | |||
| Certifications | FCC, IC, UL | |||
| Software | ||||
| Management application | UniFi Connect: Version 3.2.4 and later UniFi Connect iOS™ and Android™: Version 2.2.1 and later | |||
