| Mechanical | |

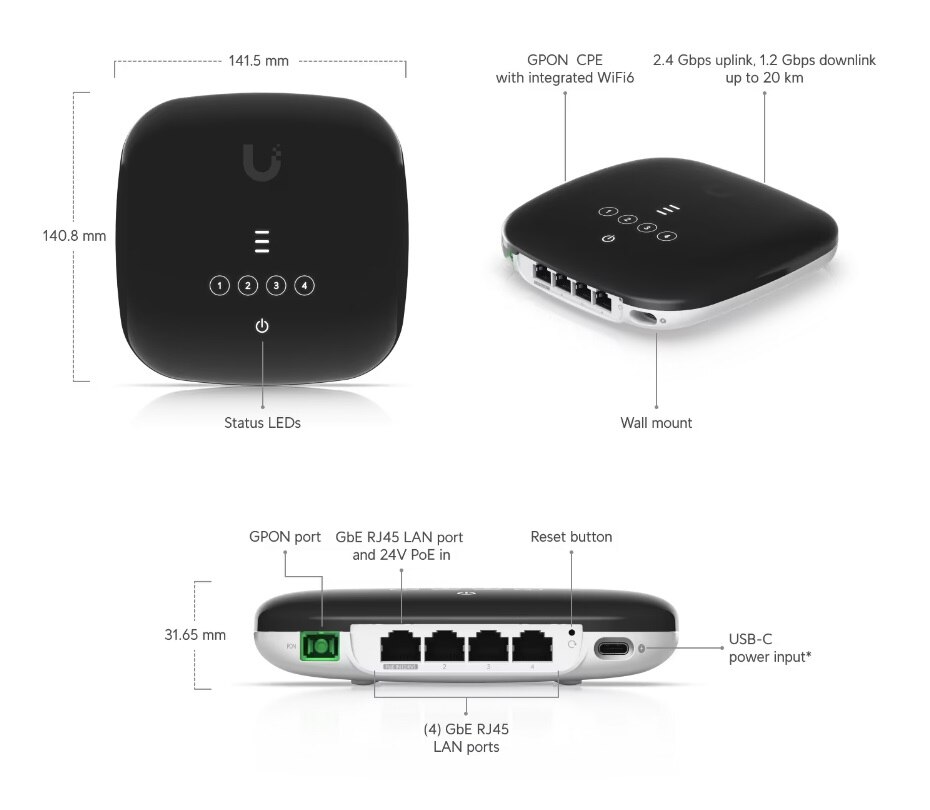

| Dimensions | 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25") |
| Weight | 415 g (0.99 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Hardware | |
| Processor | Dual-core MIPS 1004 Kc at 900 MHz |
| Memory | 256 MB RAM |
| Total non-blocking line rate | 2.488 Gbps downstream 1.244 Gbps upstream |

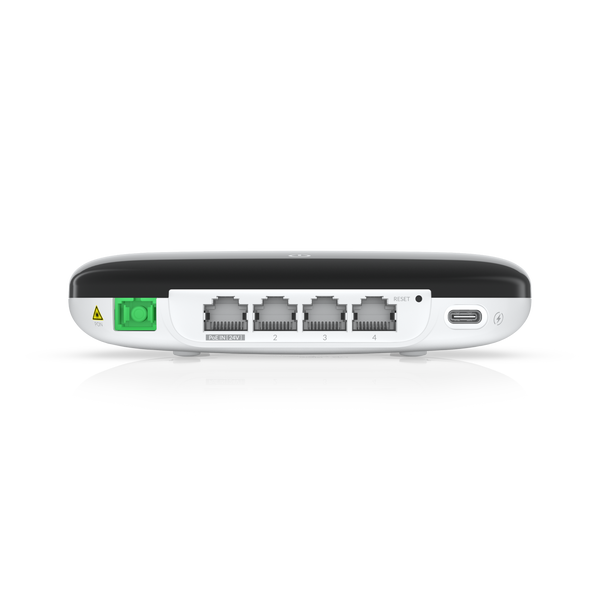

| Networking interfaces | (1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports WiFi 802.11ax 5/2.4 GHz channels |
| PoE interface | (1) PoE in, 24V passive PoE |
| Management interface | Ethernet in-band PON |
| Button | Factory-reset |
| Max. power consumption | 11W |
| Power method | USB-C 5VDC, 3A 24V passive PoE, 0.5A |
| Power supply | 5VDC, 3A power adapter, 1.5 m cord (included) Passive PoE 2-pair (4, 5+; 7, 8-) |
| Supported voltage range | 10 to 30VDC passive PoE 5VDC adapter |
| Normal TX range of optical module | 0.5 to 5 dBm |
| Normal RX range of optical module | -8 to -28 dBm |
| Max. WiFi TX power | |
| 2.4 Ghz | 20 dBm |
| 5 Ghz | 20 dBm |
| MIMO | |
| 2.4 Ghz | 2 x 2 |
| 5 Ghz | 2 x 2 |
| Max. WiFi radio rate | |
| 2.4 Ghz | 300 Mbps |
| 5 Ghz | 1.2 Gbps |
| Antenna Gain | |
| 2.4 GHz | 1 dBi |
| 5 GHz | 3 dBi |
| Operating temperature | -15 to 45° C (5 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |

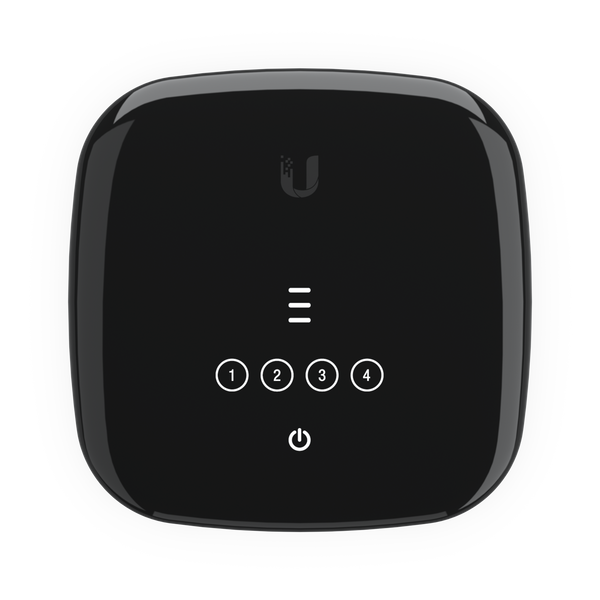

| LEDs | |
| PON status | (3) signal LEDs
All-OFF: bootup
1x orange: signal too low (< -28 db)
1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x orange + 2x white: signal too strong (>= -8 db)
3x orange: no signal
LEDs alternate between orange + white + orange and a signal strength indicator: No authority | |
|
| Ethernet | Steady white: link up Blinking white: activity OFF: link down |
| Power | White: ON |
| Software | |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM Port Encryption |
| Ubiquiti specific features | UBNT Discovery and UISP Mobile app |
| WiFi standards | 802.11 b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) |
| Minimum software requirements | Any modern web browser (Google Chrome™ recommended) |
| Fiber | |
| Operating wavelength | 1310 nm TX/1490 nm RX |
| Optical interface downstream nominal bit rate | 2488.32 Mbit/s |
| Optical interface upstream nominal bit rate | 1244.16 Mbit/s |
| Physical reach | 20 km |
| Supported Data Rates | |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11ax (WiFi 6) | 8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
