Ubiquiti UniFi Protect Network Video Recorder

(0)No Reviews yet
  • SKU: UNVR
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Installation Guide: Download

Product Information

Ubiquiti Networks UNVR

UniFi Protect Network Video Recorder

Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras.

The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.


Features:

  • (4) 2.5"/3.5" Drive bays
  • (1) 10G SFP+ port
  • (1) Gigabit RJ45 port

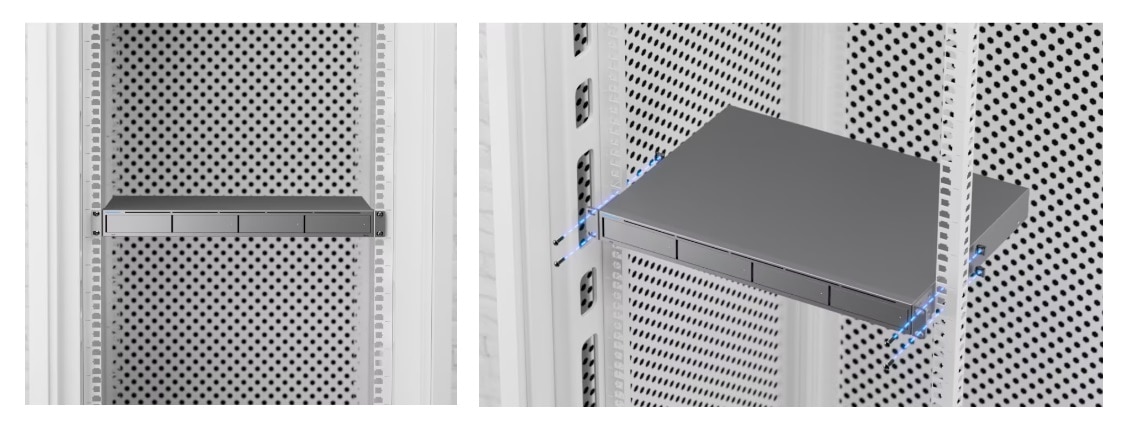

  • 1U rackmountable (kit included)
  • Plug and Play UniFi Protect system with NVR
  • Automated secure RAID 1 or RAID 5 configuration
  • Supports USP-RPS for PSU failover

Works with UniFi Protect Software

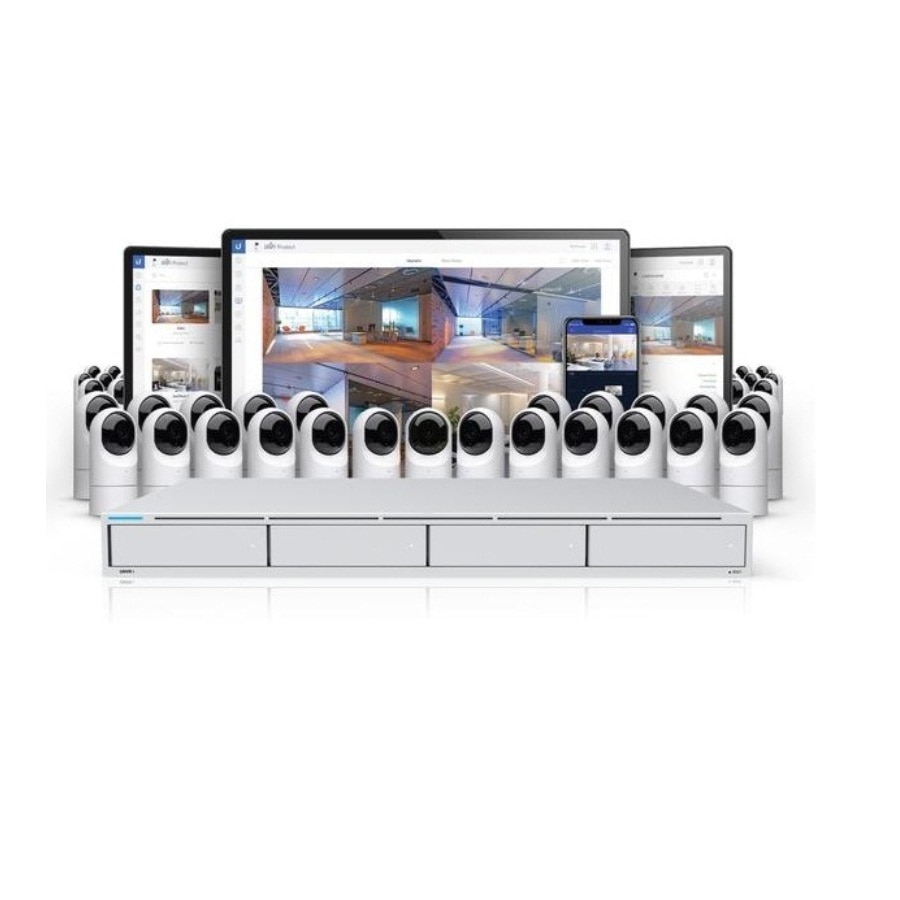

  • Add 50 cameras to your system to cover every angle
  • Free remote access for streaming and viewing your recordings
  • Your video is stored on your own secure hardware, not a cloud server

Specifications

Specifications UNVR

Dimensions442.4 x 325 x 43.7 mm
(17.4 x 12.8 x 1.7")
Weight
Without Rackmount Brackets With Rackmount Brackets

5.11 kg (11.27 lb)
5.20 kg (11.46 lb)
Enclosure CharacteristicsSGCC Steel
ProcessorQuad-Core ARM Cortex-A57 at 1.7 GHz
System Memory4 GB DDR4
On-Board Flash StorageSPI NOR 32 MB, USB Flash 8 GB
Max. Power Consumption100W
Max. Power Budget for Drives75W
Power Method(1) Universal AC Input
(1) RPS DC Input
Power Supply100-240VAC, 50/60 Hz, 2A
Networking Interfaces(1) 10/100/1000 Mbps RJ45 Ethernet
(1) 1/10 Gbps SFP+ Ethernet
Management InterfaceEthernet In-Band Management
ESD/EMP ProtectionAir: ± 12kV, Contact: ± 8kV
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity5 - 95% Noncondensing
LEDs
System(1) Power, Blue/White
Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
EthernetSteady Blue: Device is Adopted
SFP+ WhiteGreen: 1000 Mbps, Amber: 10/100 Mbps
SFP+White: 10 Gbps, Green: 1 Gbps
HDDAmber: Disk Error, White: Disk Detected
