Ubiquiti UniFi PowerAmp
- SKU: UPL-Amp
$599.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

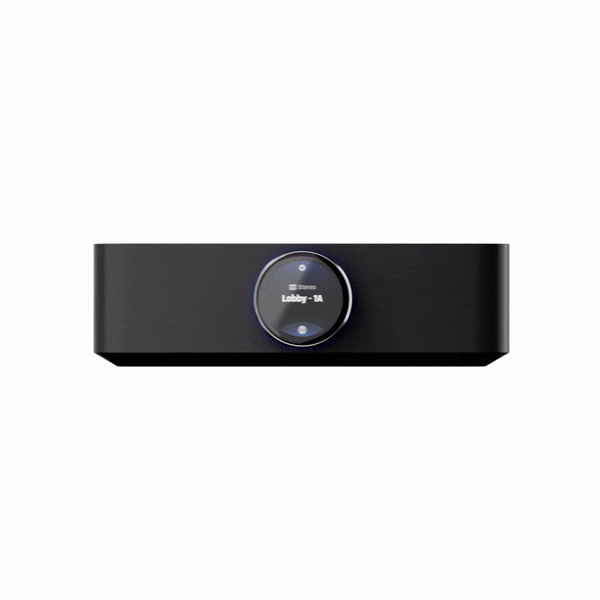

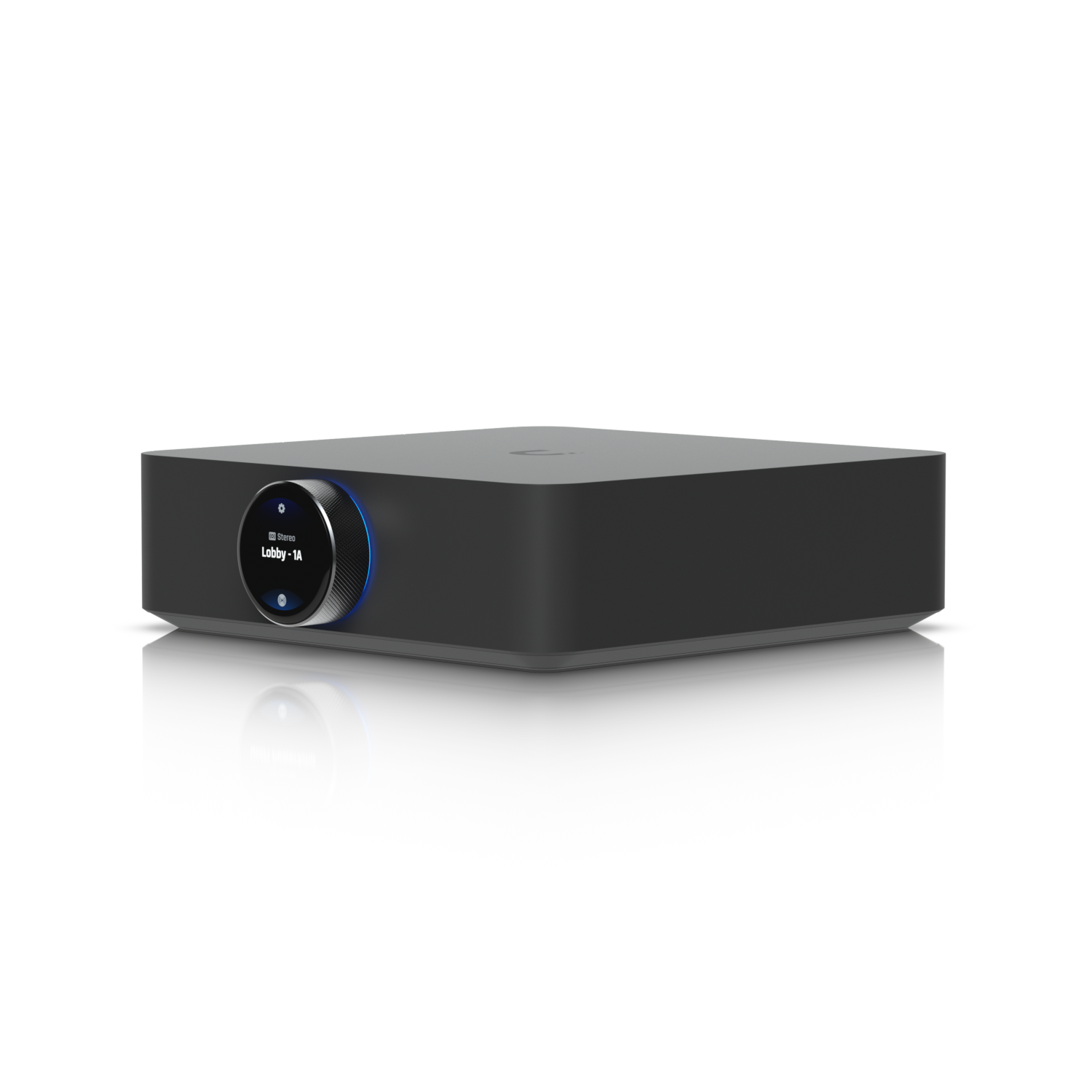

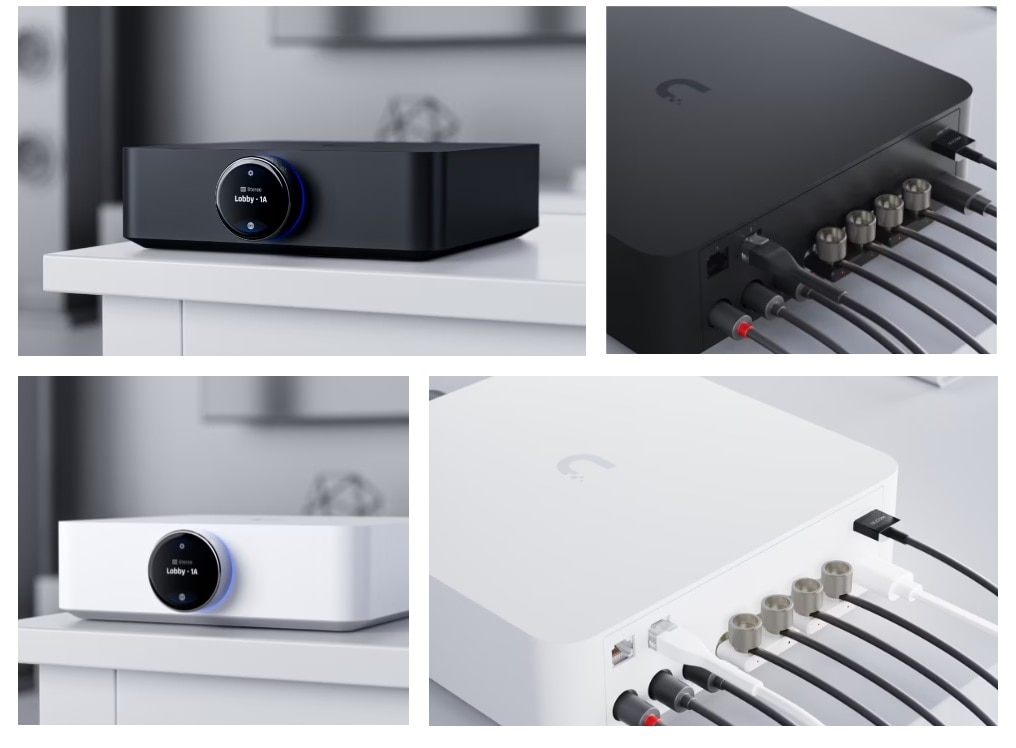

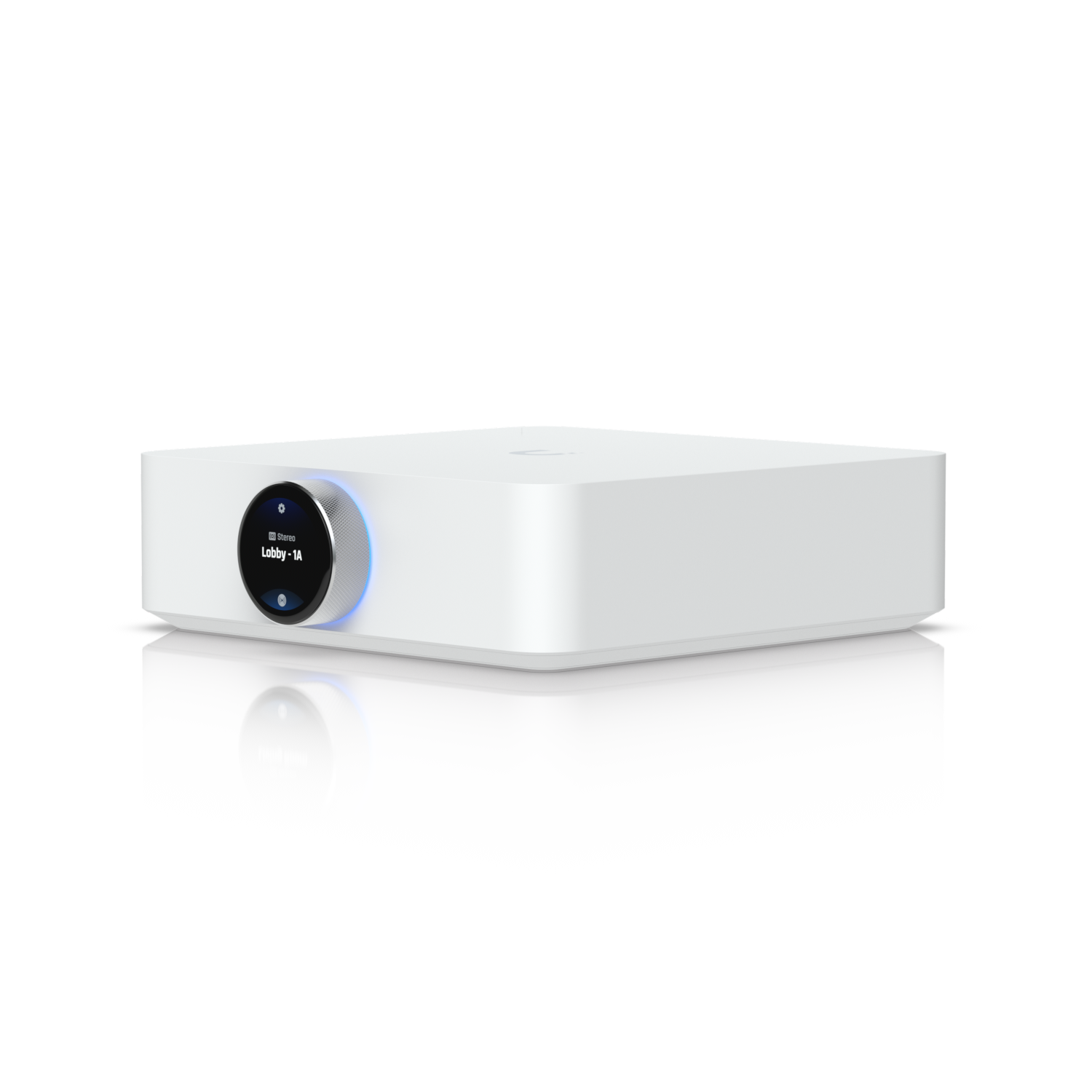

Ubiquiti Networks UPL-Amp
UniFi PowerAmp

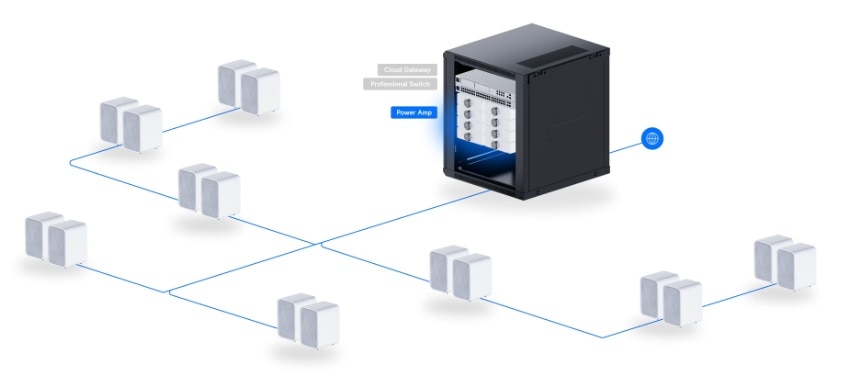

Premium speaker amplifier designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences.
Features:
- Low-latency wireless audio streaming with Apple AirPlay 2 and Spotify Connect
- 130 watts per channel at 8 ohms
- (2) speaker terminal outputs with (2) custom-designed banana plugs included
- (1) RCA analog subwoofer output
- (2) RCA analog inputs for left and right channels
- (1) HDMI eARC input with immersive spatial sound powered by Dolby Atmos
- 1.43" rotary knob with touchscreen
- Effortless setup, management, and group control with the UniFi Play mobile app
Specifications
Specifications PowerAmp
| Mechanical | |

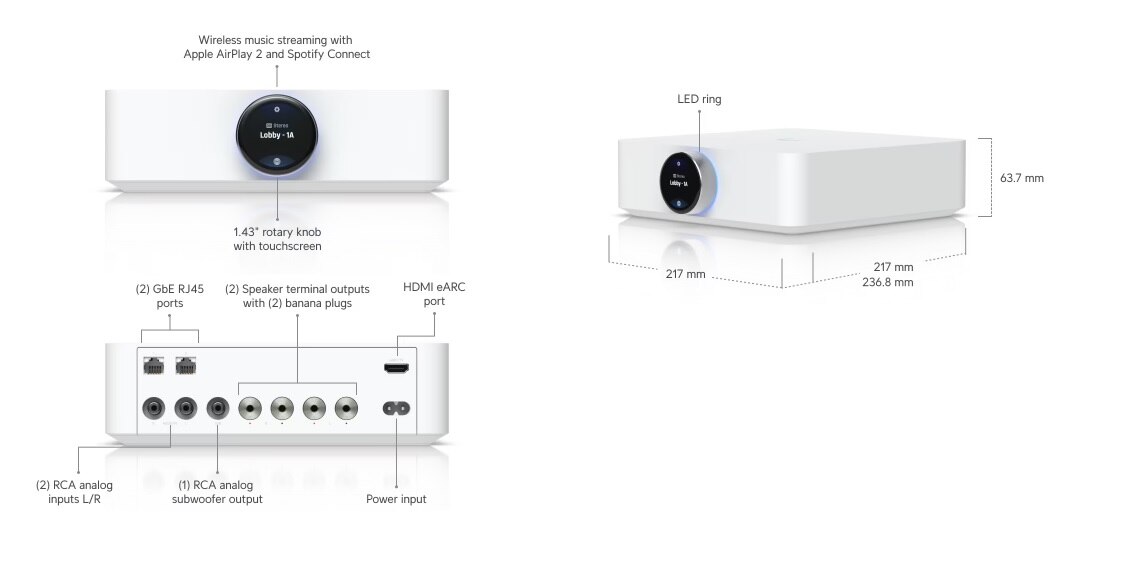

| Dimensions | With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5") |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure material | Plastic |
| Mounting | Desktop |

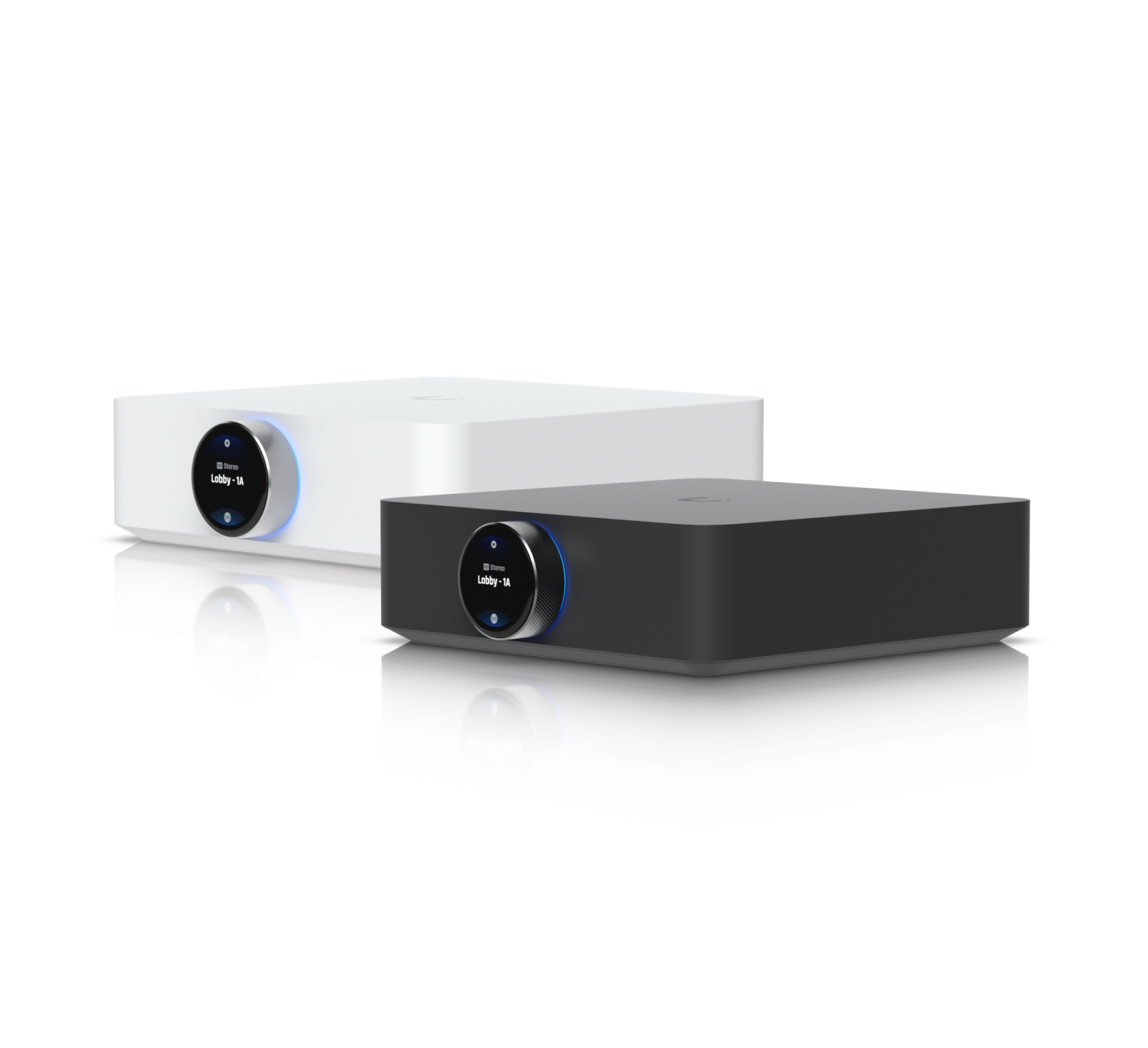

| Color | Black White |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| WiFi standards | 802.11 a/b/g/n/ac |
| Connectivity | WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz |
| Power method | (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz |
| Power consumption | 17W |
| LEDs | LED ring |
| LCM display | 1.43" rotary knob with touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Per channel power (Continuous power) | 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) |
| Amplifier class | Class D |
| Output | Stereo sound |
| Surround format | Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM |
| Grouping | Up to 32 PowerAmps |

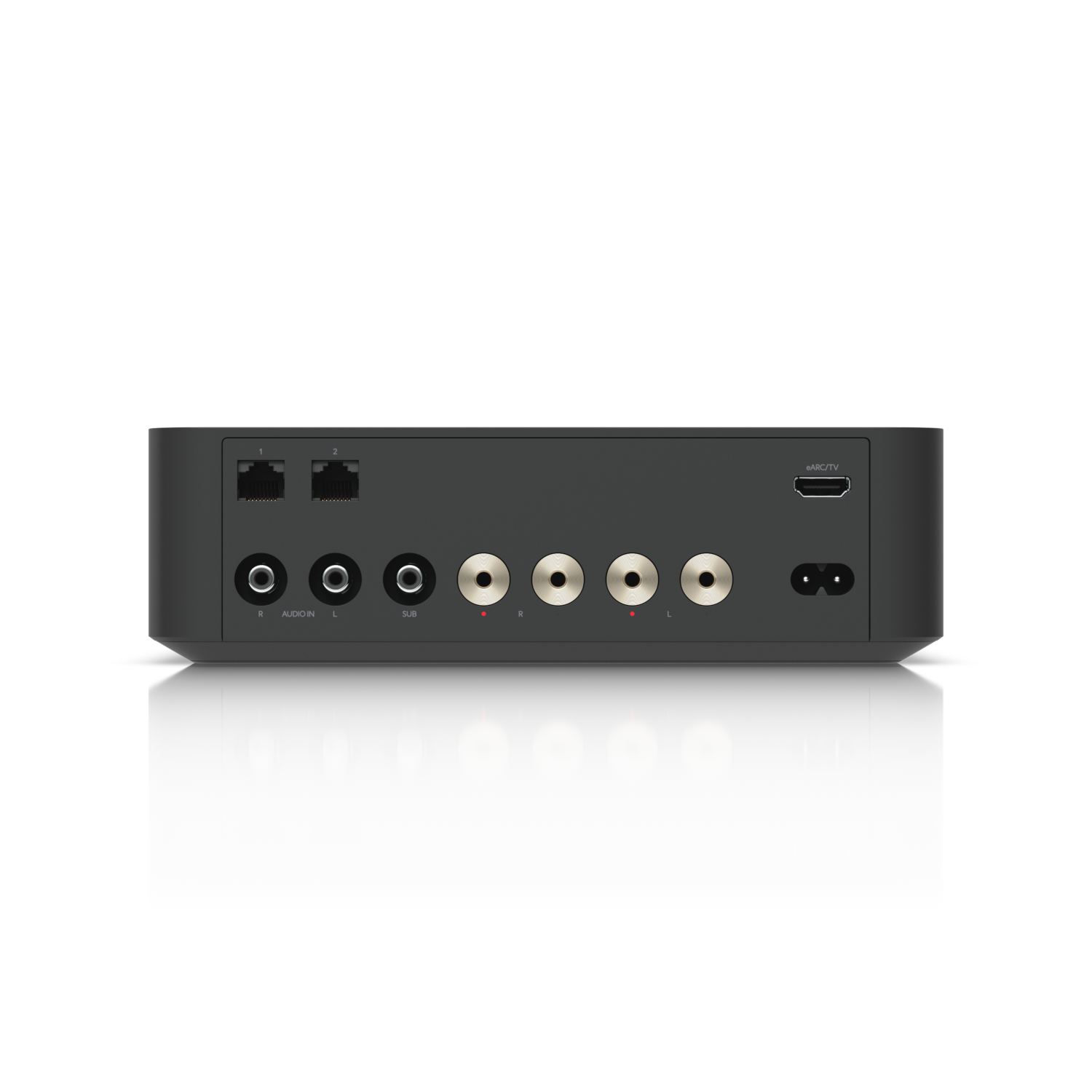

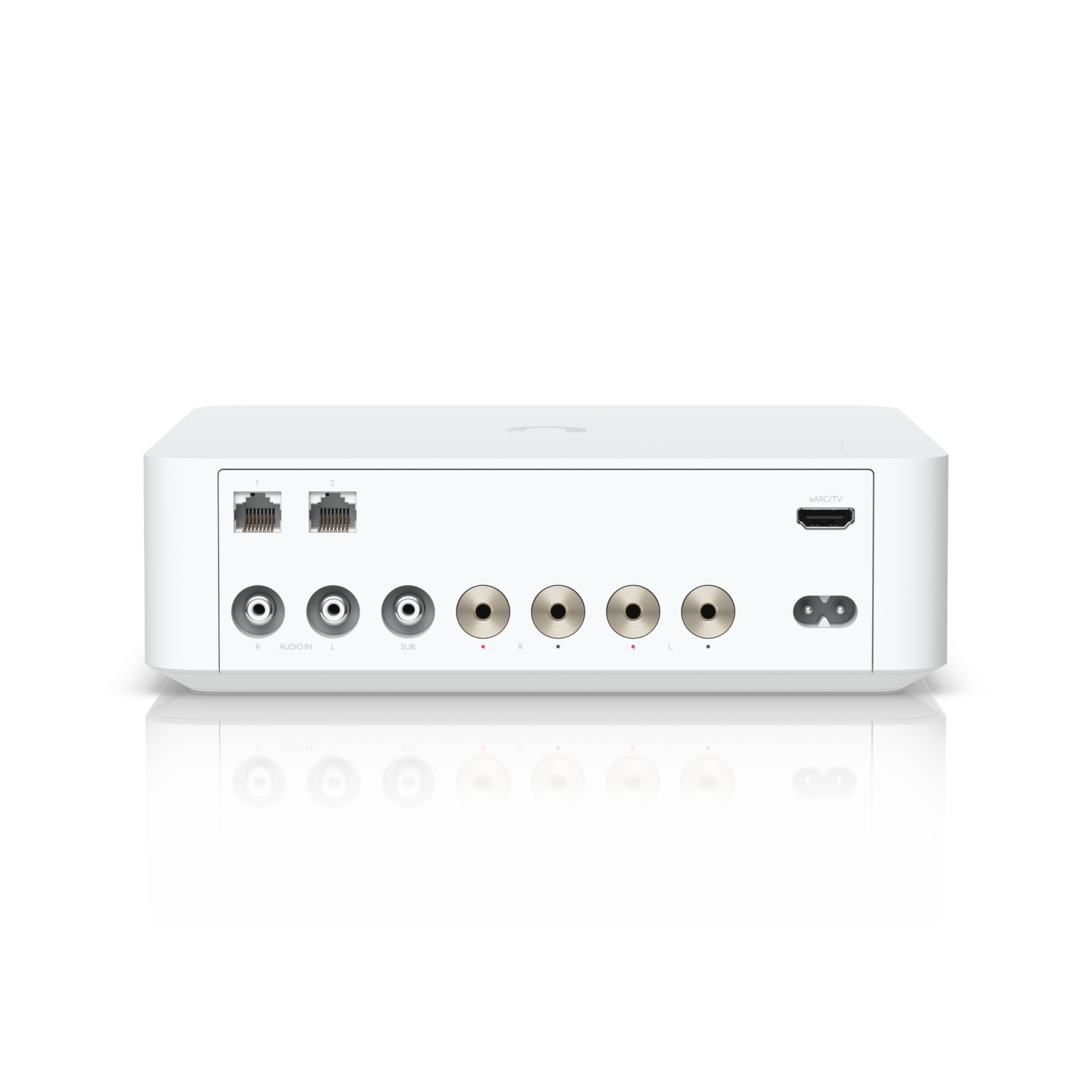

| Audio input | (1) HDMI eARC input (2) RCA analog inputs L/R |
| Audio output | (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs |
| Streaming | AirPlay2, Spotify Connect, Soundtrack Your Brand* *Available November 8th. |
| Application Requirements | |
| UniFi Play | UniFi Play iOS™ and Android™: Version 1.0.0 and later |
