Ubiquiti Access Point U7 Pro

(0)No Reviews yet
  • SKU: U7-Pro
  • Manufacturer: Ubiquiti Networks
469 in stock
College Station
13 In stock
Mississippi
456 In stock

Product Information

Ubiquiti Networks U7-Pro

Access Point U7 Pro

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Features:

  • WiFi 7 tri-radio with 6 GHz
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink

Multi-Link Operation (MLO) capability to be provided via software update in February 2024.

Specifications

Specifications

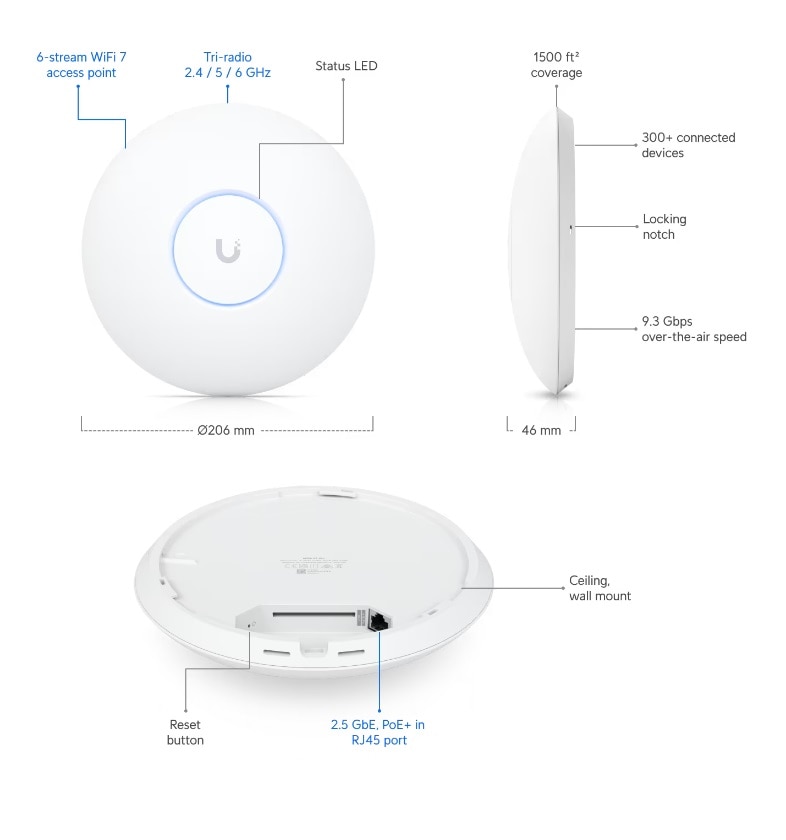

DimensionsØ206 x 46 mm (Ø8.1 x 1.8")
Weight680 g (1.5 lb)
Enclosure materialPolycarbonate, metal
Mount materialStainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface(1) 1/2.5 GbE RJ45 port
Management interfaceEthernet
Power methodPoE+
Power supplyUniFi PoE switch
Supported voltage range44—57V DC
Max. power consumption21W

Max. TX power

2.4 GHz
5 GHz
6 GHz

22 dBm
26 dBm
23 dBm

MIMO

2.4 GHz
5 GHz
6 GHz

2 x 2
2 x 2
2 x 2

Throughput rate

2.4 GHz
5 GHz
6 GHz

688 Mbps
2882 Mbps
5765 Mbps

Antenna gain 2.4GHz
5 GHz
6 GHz
4 dBi
6 dBi
5.8 dBi
LEDsWhite/blue
ButtonFactory reset
MountingWall/ceiling (Included)
Operating temperature-30 to 60° C (-22 to 140° F)
Operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Software
WiFi standards802.11a/b/g/n/ac/ax/be
Wireless securityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID8 per radio
VLAN802.1Q
Advanced QoSPer-user rate limiting
Guest traffic isolationSupported
Concurrent clients300+
Supported Data Rates
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi NetworkVersion 8.0.26 and later
UniFi OSVersion 3.2 and later
