Ubiquiti WiFiMan Wizard Spectrum Analyzer
- SKU: WM-W
Product Information
Ubiquiti Networks WM-W
WiFiMan Wizard Spectrum Analyzer
A portable spectrum analyzer designed for the WiFiMan iOS and Android mobile app.
Features:
- 2.4 GHz and 5 GHz unlicensed band scanning.
- 240 minutes continuous scanning battery life.

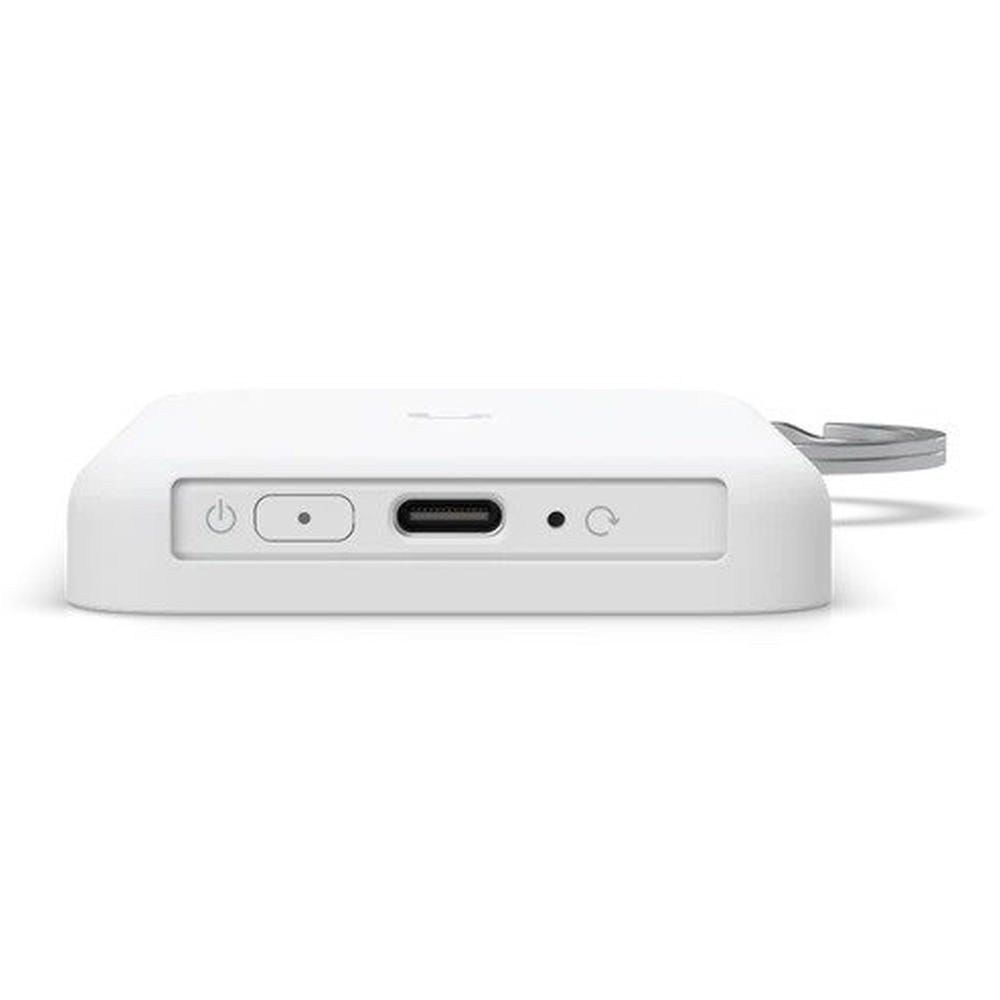

- BLE smartphone pairing with USB-C charging port.

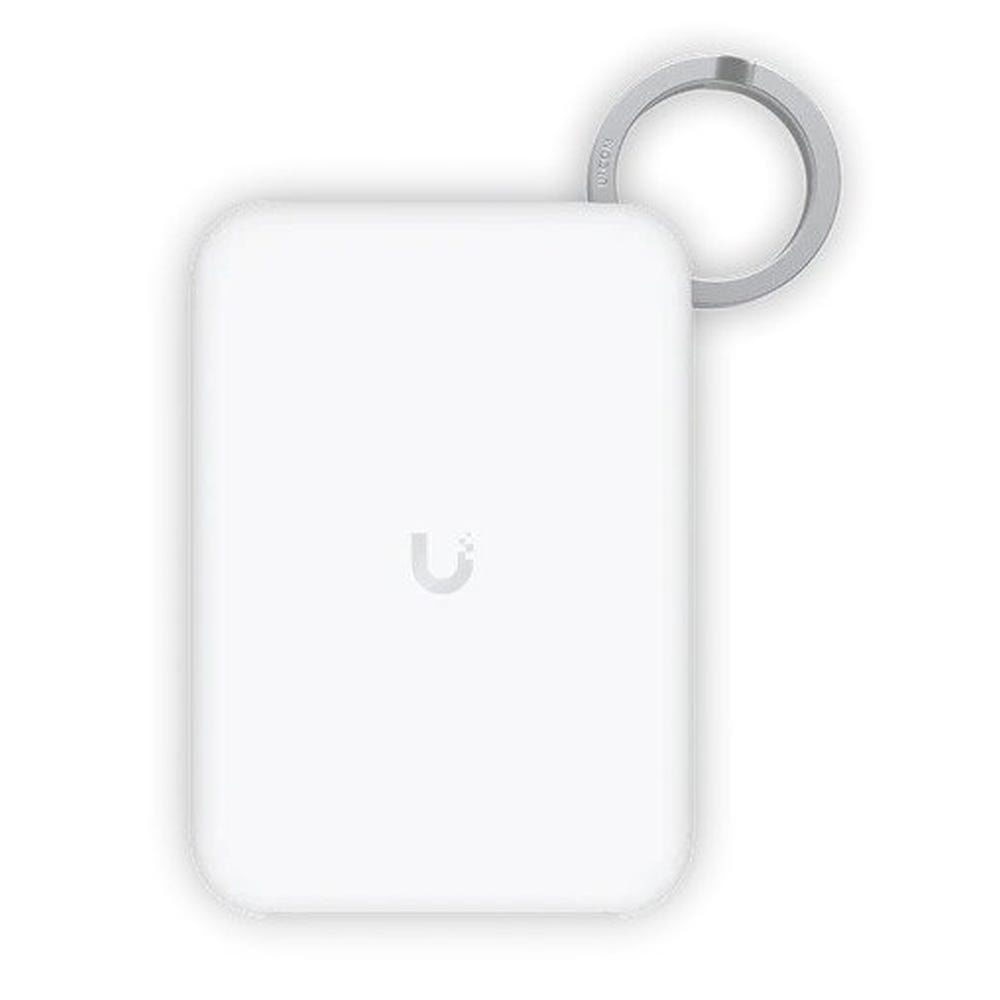

- iPhone Magsafe attachable support.
Specifications
Specifications WM-W
| Dimensions | 78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3") |
| Weight | 32 g (1.1 oz) |
| Enclosure material | Plastic |
| Weatherproofing | IP55 |
| Hardware | |
| Management interface | Bluetooth |
| Power method | Li-ion battery |
| Power supply | Rechargeable Li-ion battery, 3.7V DC, 300mAh |
| Max. power consumption | 32.4mW |
| Charger voltage | USB-C, 5V DC/1A |
| LED | White/blue/red |
| Buttons | (1) Power (1) Factory-reset |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| SSID Scan | |
| Frequency range | 2.4 to 2.5 GHz 5.15 to 5.85 GHz |
| Amplitude range | -96 dBm to 0 dBm |
| Amplitude resolution | 1 dBm |
| Software | |
| Management application | UniFi WiFiman iOS™: Version 0.18.0 and later UniFi WiFiman Android™: Version 1.15.0 and later |
