Ubiquiti UniFi 802.11ac Wave 2 Enterprise Wi-Fi Access Point
- SKU: UAP-AC-HD-US
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

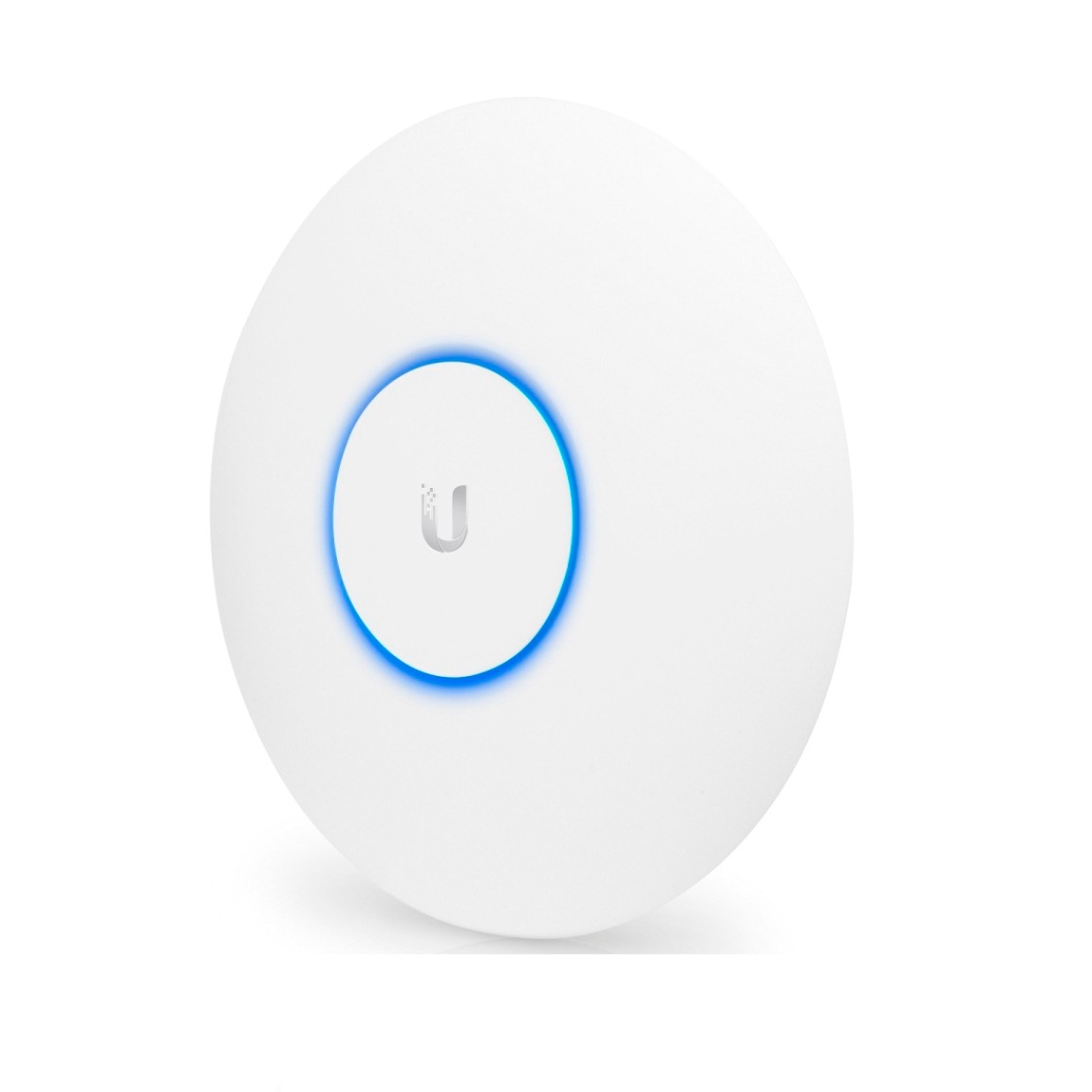

Ubiquiti UniFi UAP-AC-HD-US
High‑Density Applications Powered by MU‑MIMO Technology
802.11ac Wave 2 MU‑MIMO (Multi‑User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi‑user throughput and overall user experience.
Radio Hardware Acceleration
Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi‑user throughput and reduced latency
CPU Hardware Acceleration
Dedicated hardware offload for QoS, Guest Control, and Client Management
Optimized for MU‑MIMO
Genetically optimized antenna arrays for maximal utilization of 802.11ac Wave 2 MU‑MIMO Beamforming
Beamforming
Data is sent and received using multiple antennas to increase throughput and range.
Advanced Features in UniFi Controller
UniFi is quickly expanding to a full Software Defined Networking (SDN) solution with seamless integration of high‑performance switching, gateways, and more..
Specifications
Specifications UAP-AC-HD
| Dimensions | 220 x 220 x 48.1 mm |
| Weight | 700 g (24.7 oz), 830 g (29.3 oz) with Mounting Kits |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Ports | (2) Ethernet RJ45, (1) USB Type C |
| Buttons | Reset |
| Antennas | (2) 2.4G internal single band antennas, dual polarity (2) 5G internal single band antennas, dual polarity |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ac-wave2 |
| Power Method | PoE 802.3at |
| Power Supply | PoE Injector 48VDC -0.5A Gigabit |
| Maximum Power Consumption | 17W |
| Max TX Power | 25 dBm |
| BSSID | 4 Per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
ADVANCED TRAFFIC MANAGEMENT
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Supported |
| Concurrent Clients | 500+ |
SUPPORTED DATA RATES (MBPS)
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
