Ubiquiti Directional Dual-Band Antenna for UAP-AC-M
Ubiquiti Networks UMA-D
Directional Dual-Band Antenna for UAP-AC-M

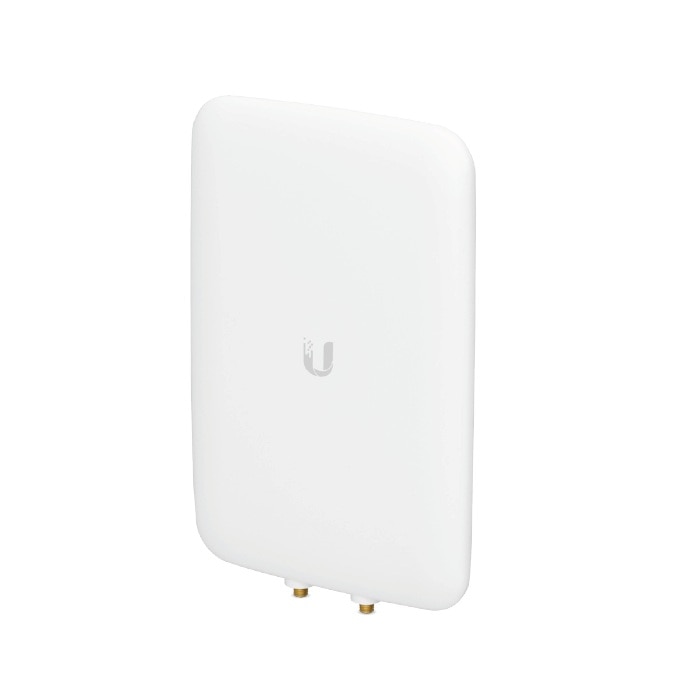

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.
Antenna Features Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
Weather-Resistant Enclosure Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
Versatile Mounting The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
Compatibility The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
|Dimensions||201.3 x 128.0 x 32.5 mm (7.93 x 5.04 x 1.28")|
|Weight (with Mount) (without Mount)||480 g (16.93 oz) 400 g (14.11 oz)|
|Enclosure||Outdoor UV Stabilized Plastic|
|RF Connections||(2) RP-SMA|
|Supported Frequency Range||2.4 - 2.5 GHz, 5.1 - 5.9 GHz|
|HPOL Beamwidth 2.4 GHz 5 GHz||90° 45°|
|VPOL Beamwidth 2.4 GHz 5 GHz||90° 45°|
|Elevation Beamwidth 2.4 GHz 5 GHz||90° 45°|
|Maximum VSWR 2:1|
|Cross-Pol Isolation 2.4 GHz 5 GHz||25 dB 30 dB|
|Antenna Gain 2.4 GHz 5 GHz||10 dBi 15 dBi|
