Integra FIDU

All-in-one microwave system fir indoor installation

Best in class transmit power in dual-core full-indoor
system for backbone deployment


buy now

Saf tehnika

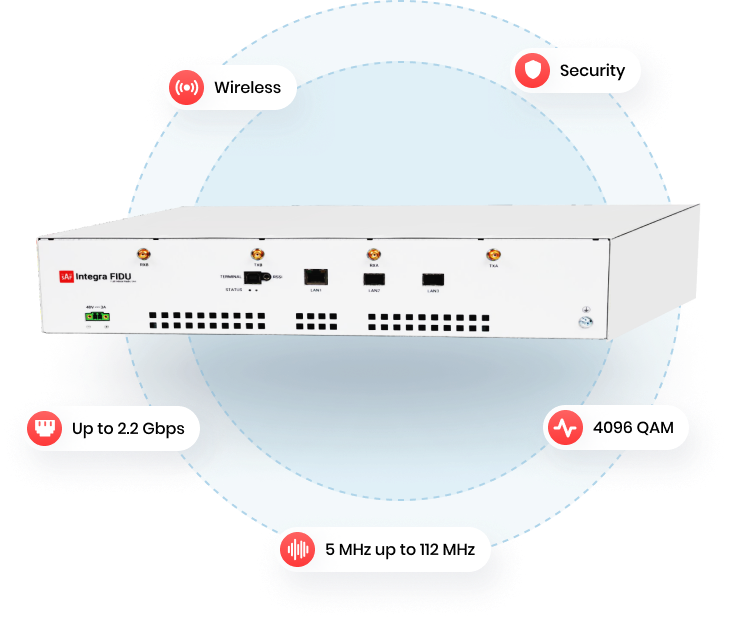

Integra FIDU

Best in class transmit power in dual-core full-indoor system for
backbone deployment. SAF Tehnika is proud to welcome to the
Integra family our high capacity full-indoor radio. The Integra FIDU
incorporeal two transceivers and two modem chains allowing
this system to take advantage of XPIC and deliver data
transmission speeds of up to 2.2 gigabits per second. Integra
FIDU’s advanced networking features and configuration flexibility
is perfect for legacy FIDU system upgrades. Simply connect to
existing waveguide and antenna system to modernize your
microwave network.

10 Gbps ethernet Switch

Carrier class features: VLANS, QoS, SNMP v1/2c/3 with 2x SFP+ ports support 10, 2.5 and 1 Gbps flexibility

Powerful radio modules from integra-X

+31 dBm Tx power and superior linearity with Adaptive Digital Pre-distortion (ADPD) algorithm, multiple 2+0 modes supported by: XPIC, ACCP, ACAP

Dual power resiliency

Power over PoE & DC power socket for redundant power source connection

5 year standard warranty

Industry leading MTBF Integra series, 24/7 technical support, available next day replacement

Key Characteristics

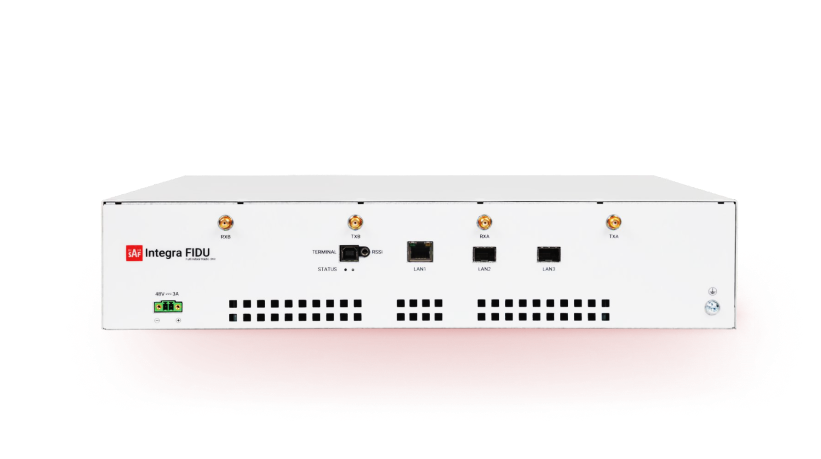

INTEGRA-fidu
Capacity Up to 2.2 Gbps at 2x 112 MHz 4096QAM
Frequency bands4, 6, 11, 13 GHz
Max Modulation4096 QAM
Channel Bandwidth from 5 MHz up to 112 MHz
Configurations1+0, 2+0 XPIC, 2+0 ACAP, 2+0 ACCP*, 1+1 SD*
Gigabit Ethernet1xRJx45, 2xSFP+
ManagementOut-of-band, In-band, SNMP v1/2c/3, SSH, Telnet, HTTPS, Serial, RADIUS, Network Time Protocol
AntennaExternal antenna
Form factor88.9 x 428 x 349 mm / 3.5” x 16.9” x 13.7”, 2U 19” Rack
Temperature range-5...+55 °C / 23…+130 °F
