Product Information
ALTA Labs Route10

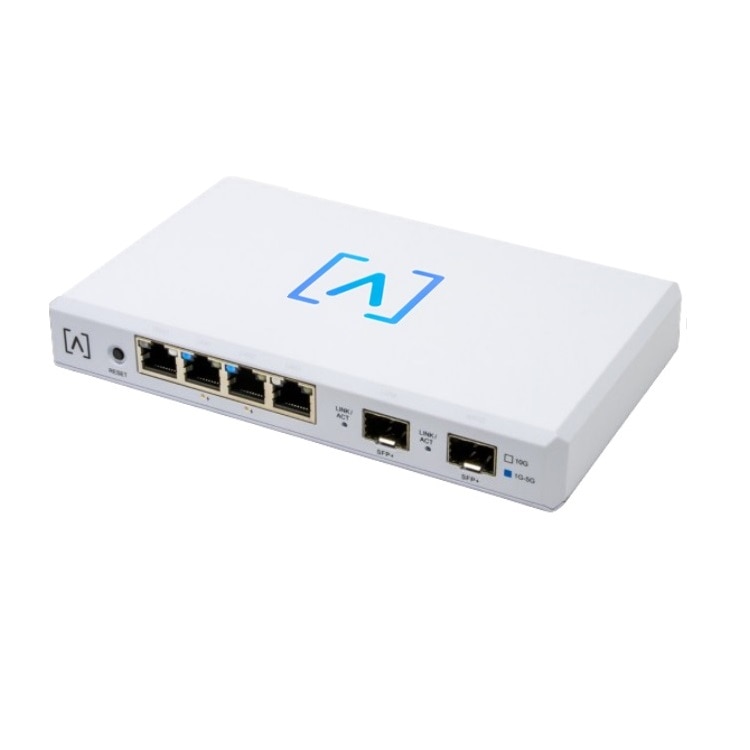

ALTA Labs Route10 - 10Gbps Router
Alta Labs is thrilled to announce the release of our groundbreaking high-performance 10 Gbps Router. Disruptively priced, it is the only 10 Gbps router in the market at this retail price point. Route10 completes the Alta Labs ecosystem, making it possible to build your entire network with Alta Labs products.
High Performance Connectivity
Designed for maximum performance, Route10 includes four autosensing Ethernet ports that support up to 2.5 Gbps Ethernet connections (10/100/1000/2500 Mbps). Route10 also provides two SFP+ ports for high-capacity fiber or copper connections of 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps.
Power Over Ethernet
Route10 features PoE+ connectivity on ports 2 & 3. The router supports the 802.3at PoE+ standard and is backwards compatible with the 802.3af PoE standard. Power your Alta Labs Access Points and other devices that support 802.3at or 802.3af standards.
Bluetooth Setup (Coming Soon)
Bluetooth functionality is built into the Alta Labs Route10 router allowing for seamless setup using the Alta Networks mobile app
Mobile App Support (Coming Soon)
Monitor and manage your networks from the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser. Sign up for an Alta Labs account using just your name, email, and password or sign in using your Google or Apple account.
Advanced Filtering - DPI Engine (Coming Soon)
Route10 has a powerful built-in Deep Packet Inspection (DPI) engine. Restrict access to websites, applications, or application types. Filter settings are easily applied in the Alta Labs Control™ management interface.
Select applications or application types in the Block Applications drop-down menu. Block websites by typing in their domain names in the Block Domains field.
Device Specific Exceptions
For instances where specific devices should not have their content filtered, adhere to a schedule, or bypass a hotspot, admins can allow individual devices to bypass the filter, schedule, and/or hotspot settings.
Hardware Features
- Four 2.5 Gbps RJ45 Ports, 2 with PoE+
- Two 10 Gbps SFP+ Ports
- Quad-Core Qualcomm Network Accelerator
- Sleek, Compact Form Factor
- Optional Rack Mount Accessory
- Single Power Supply
Release Features
- Static IP, DHCP and PPPoE WAN Support
- VLAN and QoS Tagging on WAN Support
- Multiple VLAN and Subnet Support
- DNS Repeater
- Firewall Configuration
- NAT Configuration (Source and Destination,
- Port forwarding)
- UPnP Support
- mDNS Forwarding
- Real-time Statistics Reporting
- Dynamic DNS Client
- RADIUS Server (for IPsec VPN)
- L2TP+IPSec Servers
- LLDP
- Static Routes
Post-Launch Features (Soon)
- Multi-WAN
- IPsec Site to Site
- L2TP+IPsec Client
- OpenVPN
- Wireguard
- IDS/IPS
- IKEv2 Remote Access
- Advanced features: Match Source MAC, mark,
- DSCP
- NAT Schedule
- QoS for Low Latency
- DPI
- Alta Networks Mobile App Support
Specifications
Specifications Route10
| Dimensions | (7.09 x 4.33 x 1.17") 180 x 110 x 29.8 mm |
| Weight | 1.5 lbs |
| Enclosure Material | Top cover: polycarbonate Bottom cover: milled aluminum |
| Material Finish | Matte |
| Color | White |
| Mount Material | Injection Molded Plastic |
| Ports | |
| Network Interface | Ethernet, Bluetooth |
| Management Interface | (4) Autosensing 2500/1000/100/10 Mbps RJ45 Ports, (2) 10 Gbps/1.25 Gbps SFP+ Ports |
| LEDs | |
| PoE | Amber |
| RJ45 | Amber (Left LED): 10/100 Mbps Blue (Left LED): 1 Gbps White (Right LED): 2.5 Gbps |
| SFP+ | Blue: < 10 Gbps White: 10 Gbps |
| Status | RGB/Multi-Color |
| Hardware | |
| Processor | Quad-core Qualcomm 2.2 GHz |
| Button | Reset/Factory Reset |
| Power | |
| Power Supply | Universal AC, 100 - 240VAC 50-60Hz External |
| Maximum Input Power Consumption | 70W |
| POE Budget | 40W |
| Per-Port PoE | (2) 802.3at POE+, PoE+ (54VDC, 0.6A Max) |
| PoE Ports | 2 |
| Bluetooth Version | BLE |
| Total Bluetooth Power | 5 dBm EIRP |
| Bluetooth Gain | 3 dBi |
| MAC Table Size | 4k |
| Environmental | |
| Mounting Locking | Wallmount, Desktop |
| Operating Temperature | -5 to 50° C (23 to 122° F) With (1) 2W SFP+ Module: 45° C (113° F) With (2) 2W SFP+ Modules: 40° C (104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| RJ45 Port Surge Protection | 12kV for ESD - Contact, 25kV for ESD - Air |
| Software | |
| VLAN | 802.1Q |
| Easily Scale from Home to SMB to Stadium | Yes |
| Seamless Per-Client Settings | Yes |
| VPN Server | Yes, Multiple, Hardware-Accelerated |
| Actual Total Throughput | 25 Gbps Combined Upload/Download |
| RADIUS Authentication | Yes |
| Deep-Packet Inspection | Yes |
| Intrusion Detection and Prevention Systems | Yes, at 10 Gbps |
| WAN Failover and Load-Balancing | Yes |
